Transmission Control Module (TCM): Removal

  1. Disconnect battery ground cable.

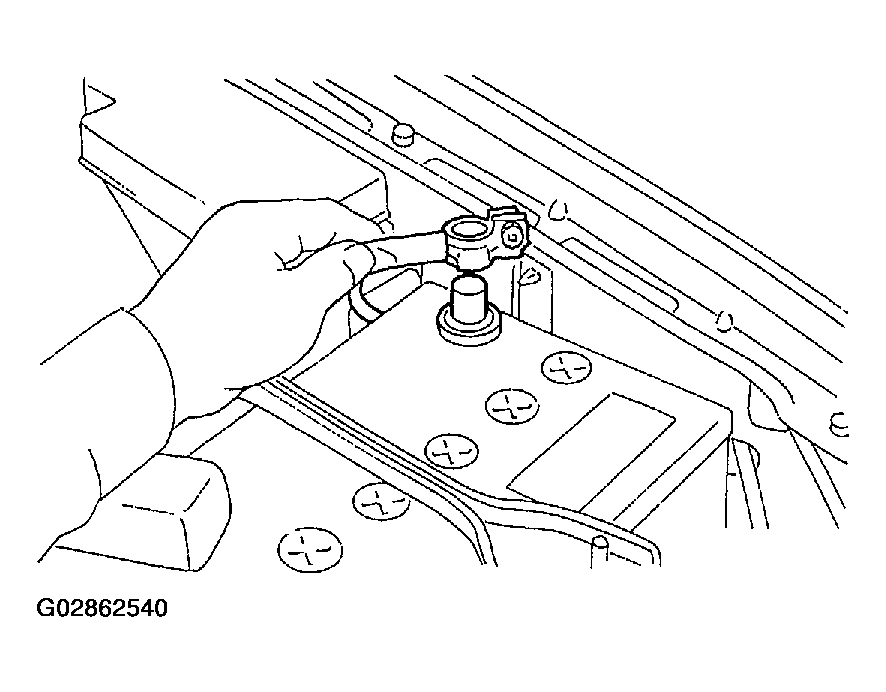

    Fig 1: Disconnecting Battery Ground Cable
    G02862540Courtesy of SUBARU OF AMERICA, INC.
  2. Remove lower cover and then disconnect connector.
    Fig 2: Removing Lower Cover
    G02862541Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect connectors from transmission control module.

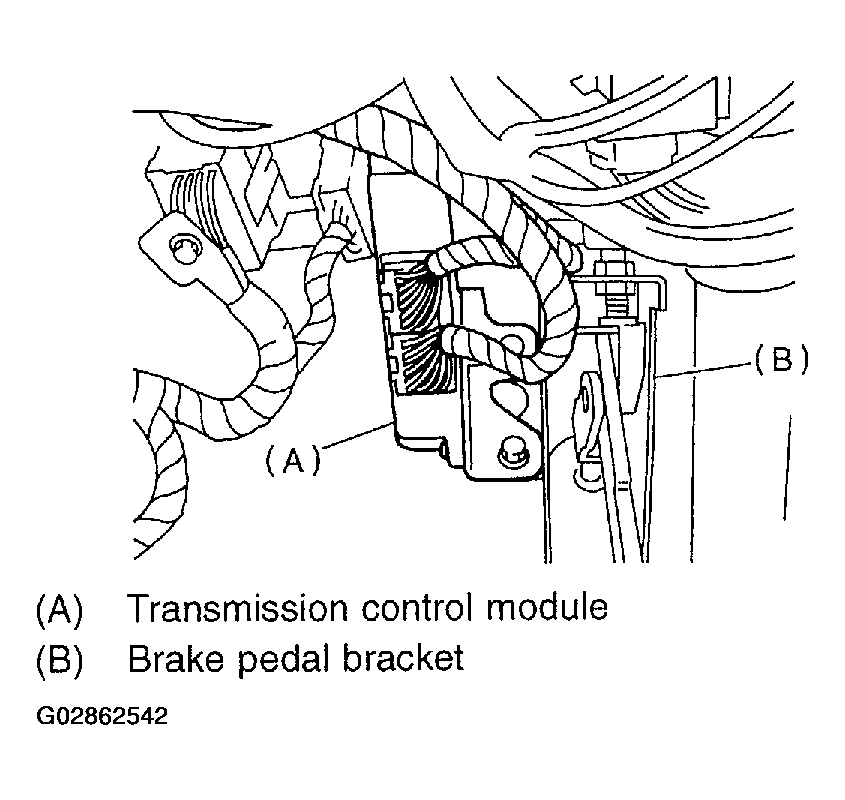

    Fig 3: Disconnecting Connectors From Transmission Control Module
    G02862542Courtesy of SUBARU OF AMERICA, INC.
  4. Remove transmission control module.
