Control Valve Body Assembly: Assembly

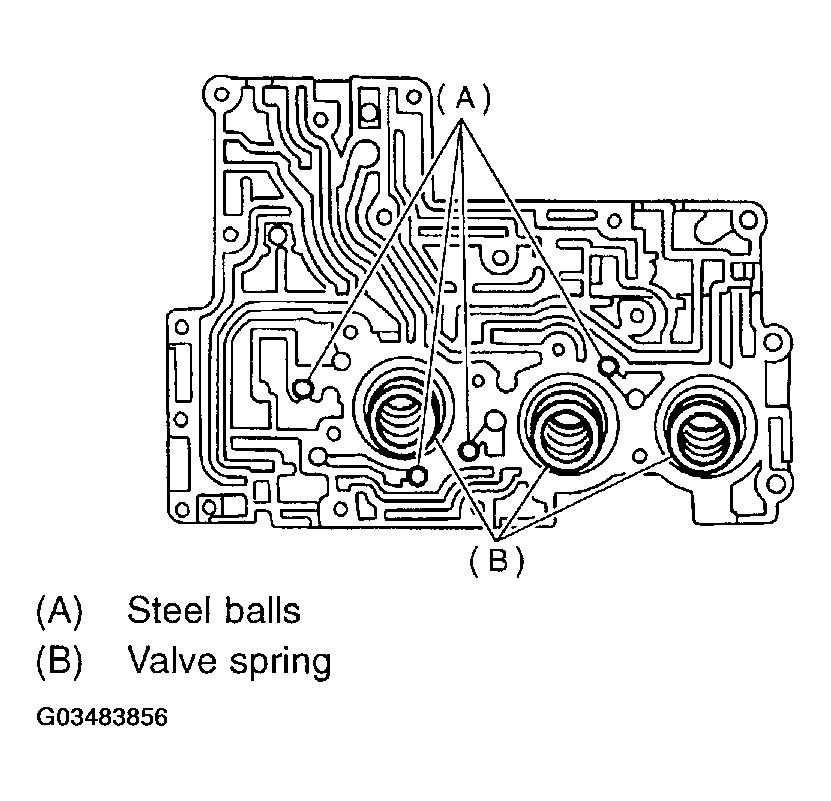

Install accumulator pistons, valve springs and steel balls to upper valve body.
NOTE: Insert steel balls in their proper positions.

Fig 1: Installing Accumulator Pistons, Valve Springs And Steel Balls
Courtesy of SUBARU OF AMERICA, INC.

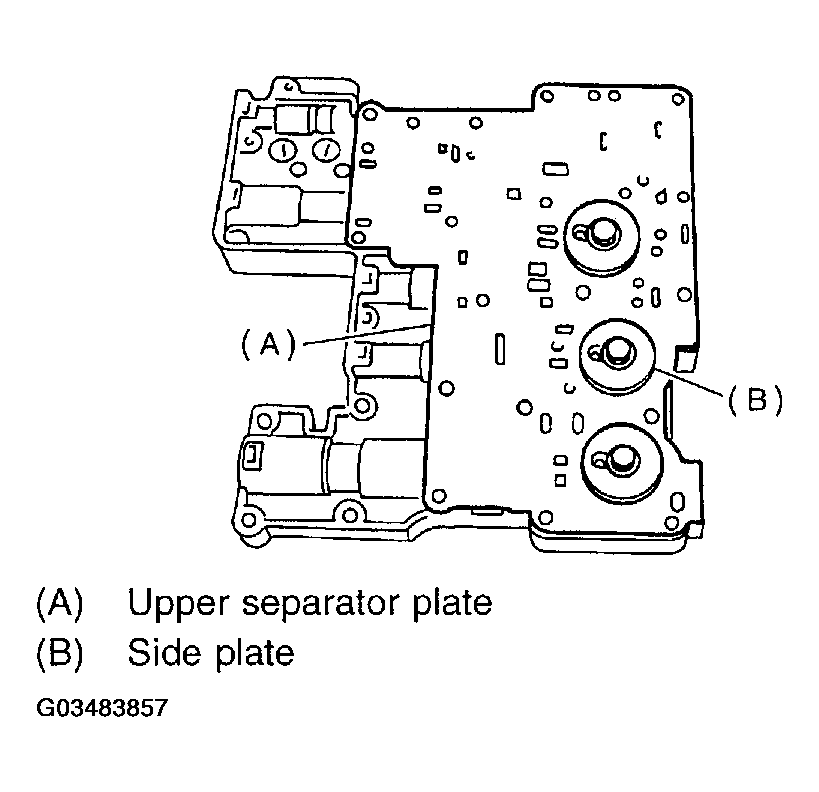

Install support plate and upper separator plate to middle valve body.
NOTE: Align the hole in side plate with the hole in separator plate.

Tightening torque:

8 N.m (0.8 kgf-m, 5.8 ft-lb)

Fig 2: Installing Support Plate And Upper Separator Plate
Courtesy of SUBARU OF AMERICA, INC.

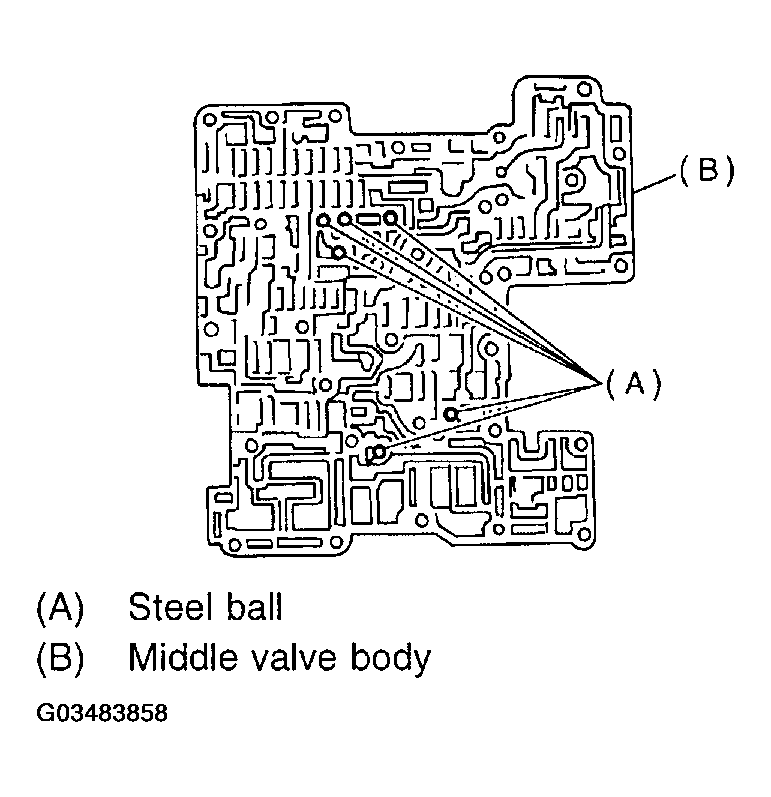

Install steel balls to middle valve body.
NOTE: Insert steel balls in their proper positions.

Fig 3: Installing Steel Balls To Middle Valve Body
Courtesy of SUBARU OF AMERICA, INC.

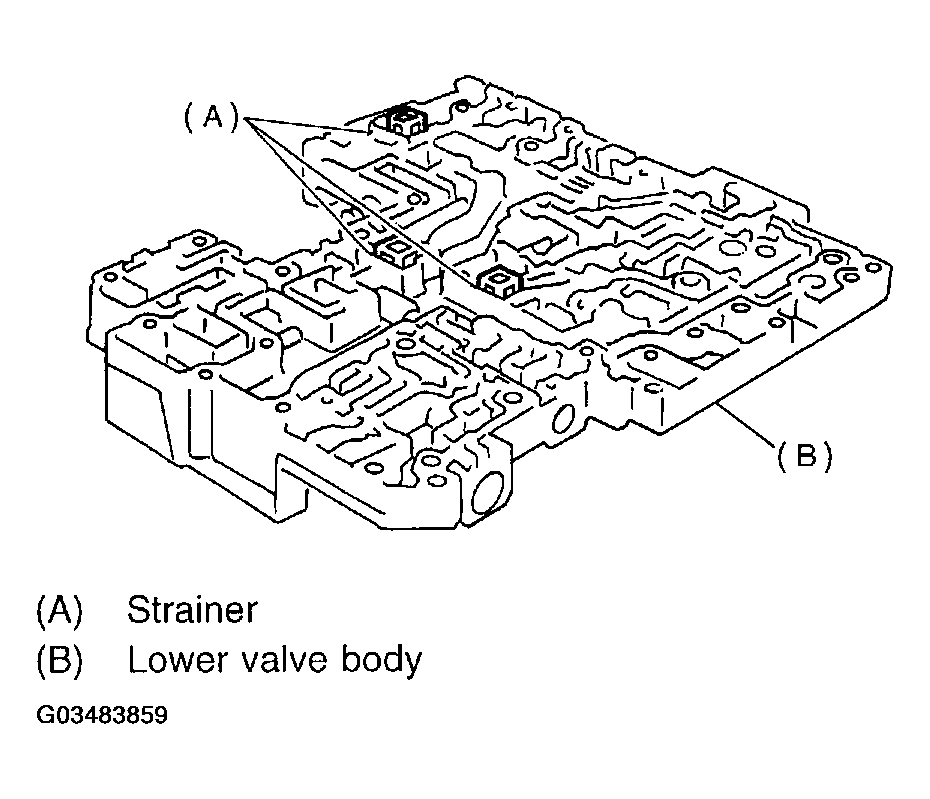

Install three filters to lower valve body.
NOTE: Pay attention to the location of filters.

Fig 4: Installing Filters To Lower Valve Body
Courtesy of SUBARU OF AMERICA, INC.

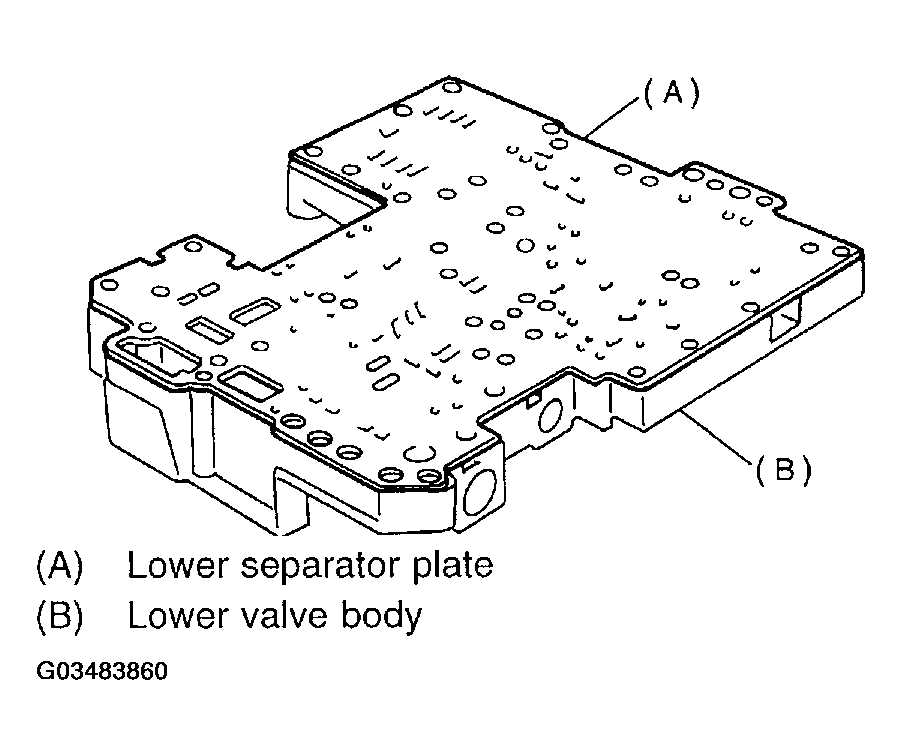

Install lower separate plate to lower valve body.

Fig 5: Installing Lower Separate Plate To Lower Valve Body
Courtesy of SUBARU OF AMERICA, INC.

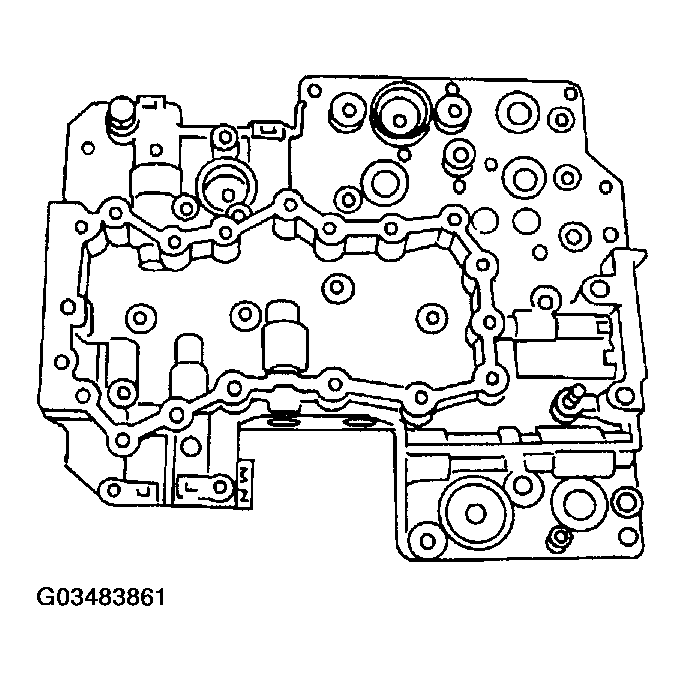

Temporarily assemble valve body.
NOTE: Be careful not to drop the middle valve body and upper body interior steel ball, or the lower body filter.

Fig 6: Assembling Valve Body
Courtesy of SUBARU OF AMERICA, INC.

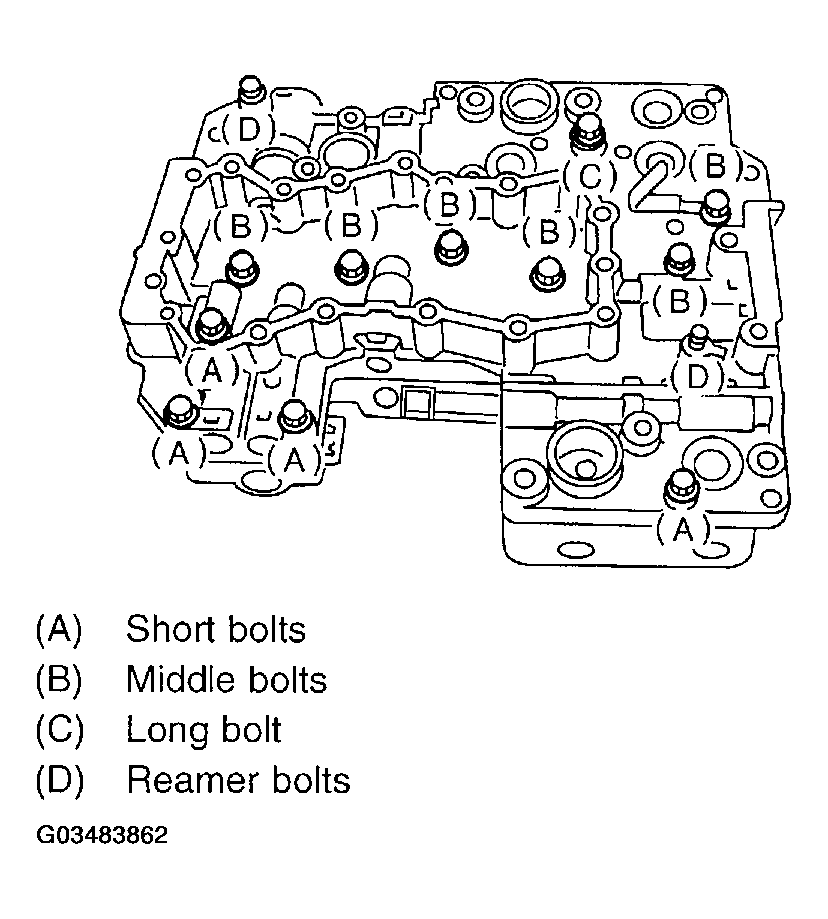

Tighten bolts.
Tightening torque:

8 N.m (0.8 kgf-m, 5.8 ft-lb)

Fig 7: Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.

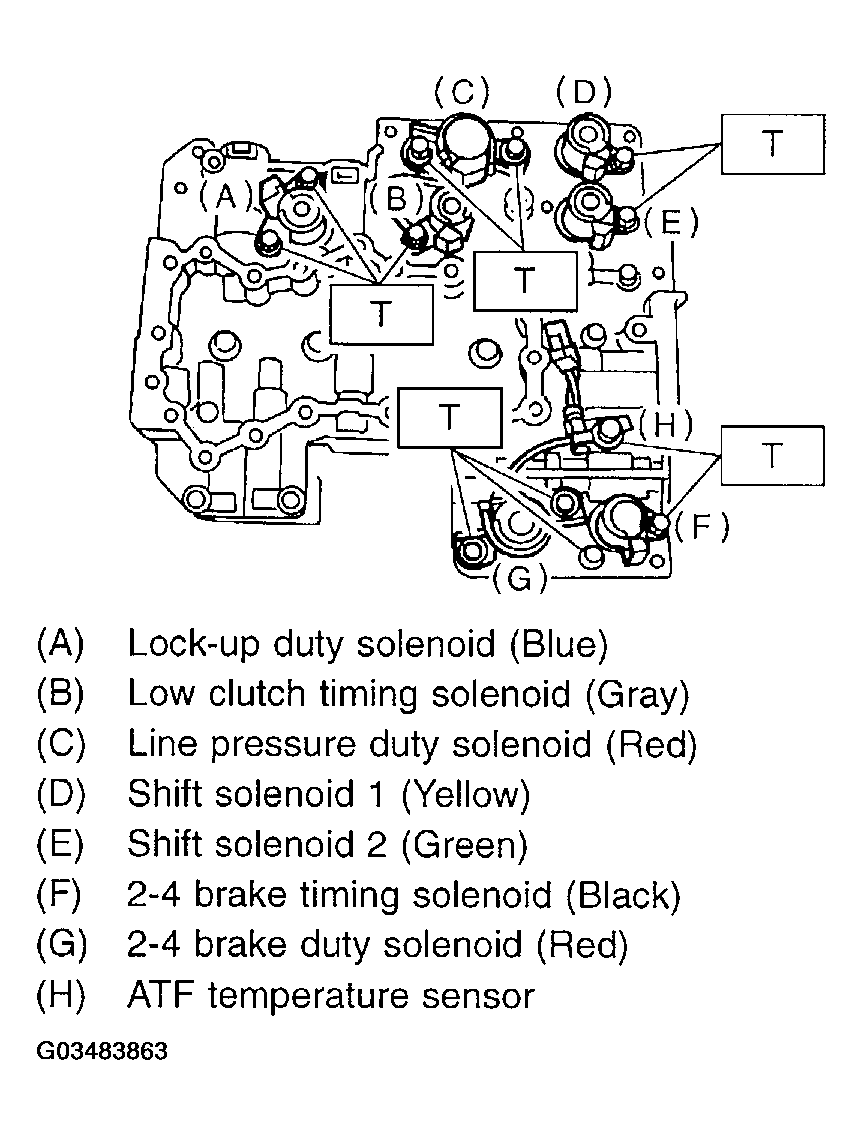

Install the sensor, solenoids and duty solenoids.
Tightening torque:

T: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

Fig 8: Installing Sensor, Solenoids And Duty Solenoids
Courtesy of SUBARU OF AMERICA, INC.
Install oil strainer to lower valve body.
Tightening torque:

8 N.m (0.8 kgf-m, 5.8 ft-lb)
