Control Valve Body Assembly: Disassembly

Remove oil strainer from lower control valve body.

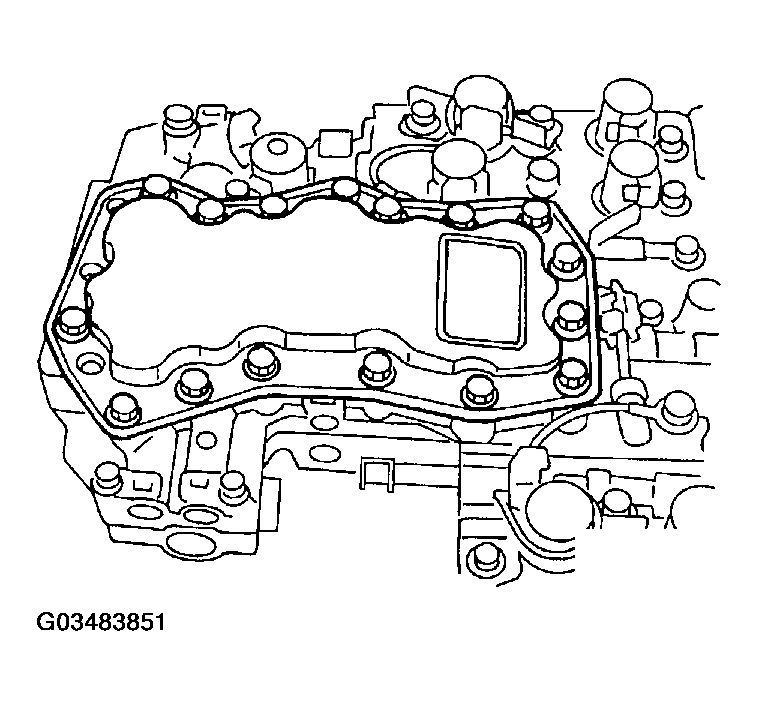

Fig 1: Removing Oil Strainer From Lower Control Valve Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the duty solenoids, solenoids and sensor from the lower valve body.

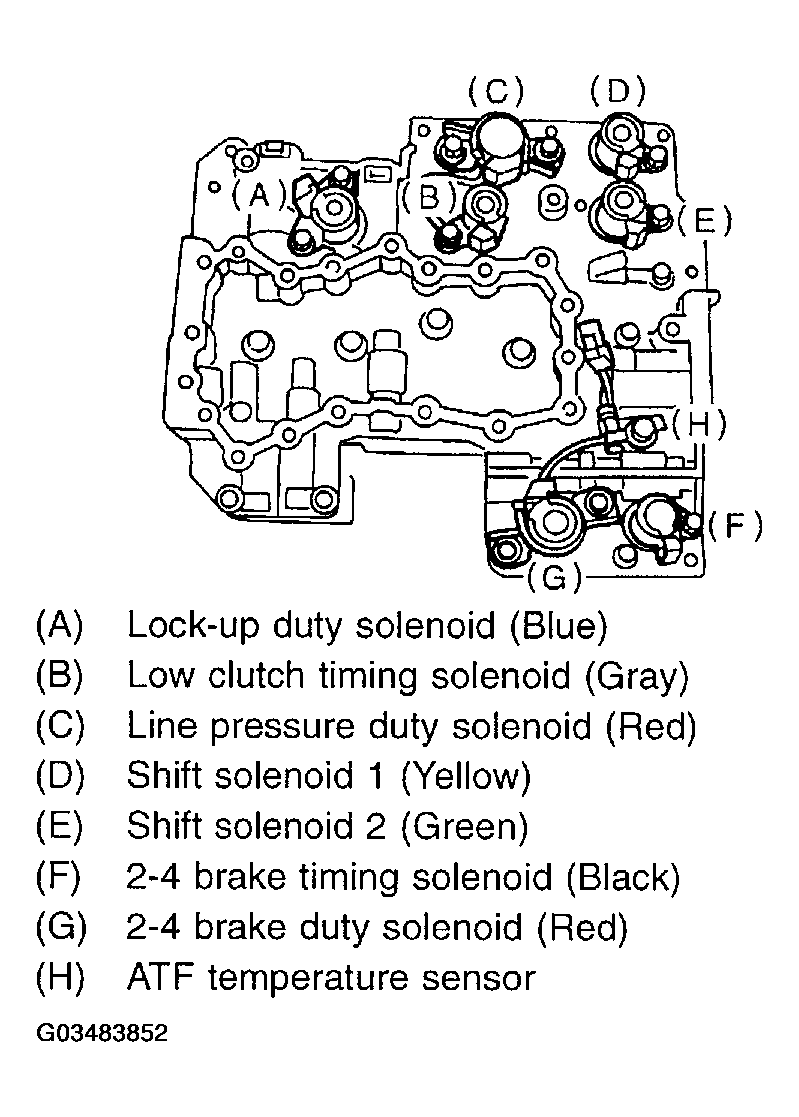

Fig 2: Removing Duty Solenoids
Courtesy of SUBARU OF AMERICA, INC.
Remove the upper-lower valve body tightening bolts.

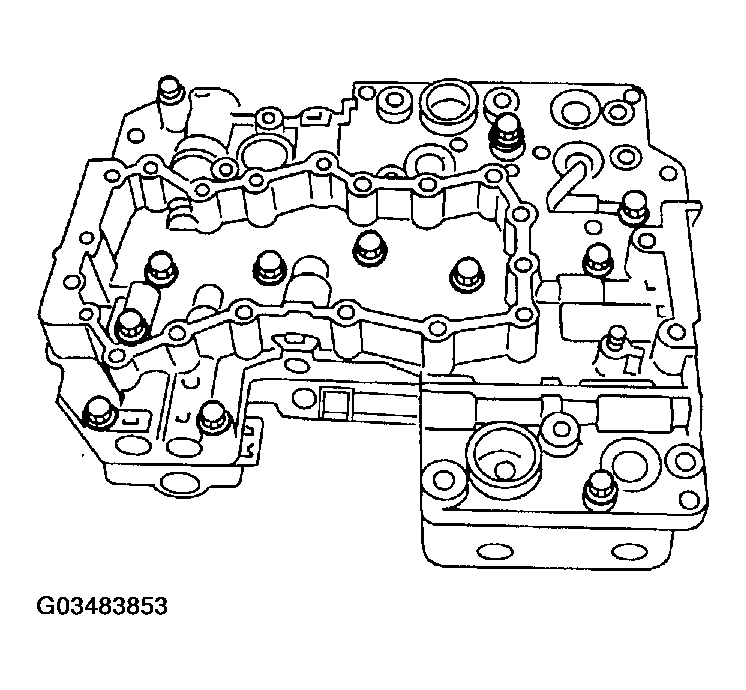

Fig 3: Removing Upper-Lower Valve Body
Courtesy of SUBARU OF AMERICA, INC.
Separate the control valve body.
NOTE:
- Do not lose the ten (10) steel balls contained in the upper valve body and middle valve body.
- Do not lose strainers contained in the lower valve body.
NOTE: During ordinary servicing, clean the control valve bodies in this condition, without further disassembly. In the event of a seized clutch or other problem, disassemble the control valve bodies further, and clean the component parts.
Remove upper separator plate from middle valve body.

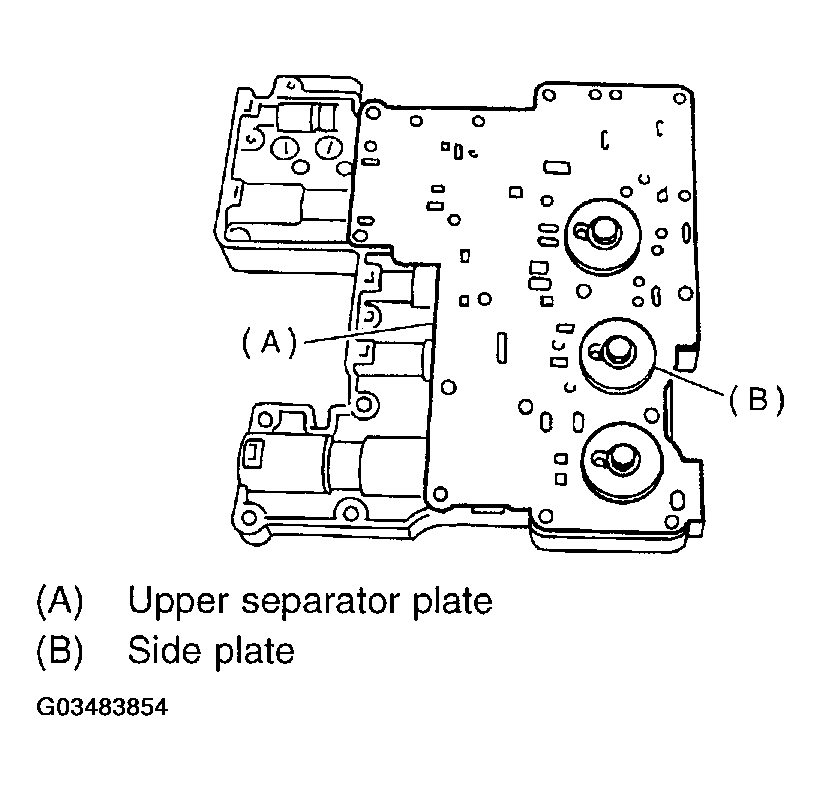

Fig 4: Removing Upper Separator Plate From Middle Valve Body
Courtesy of SUBARU OF AMERICA, INC.
Remove valve springs from upper valve body.
Using air compressor, remove accumulator piston from upper valve body.

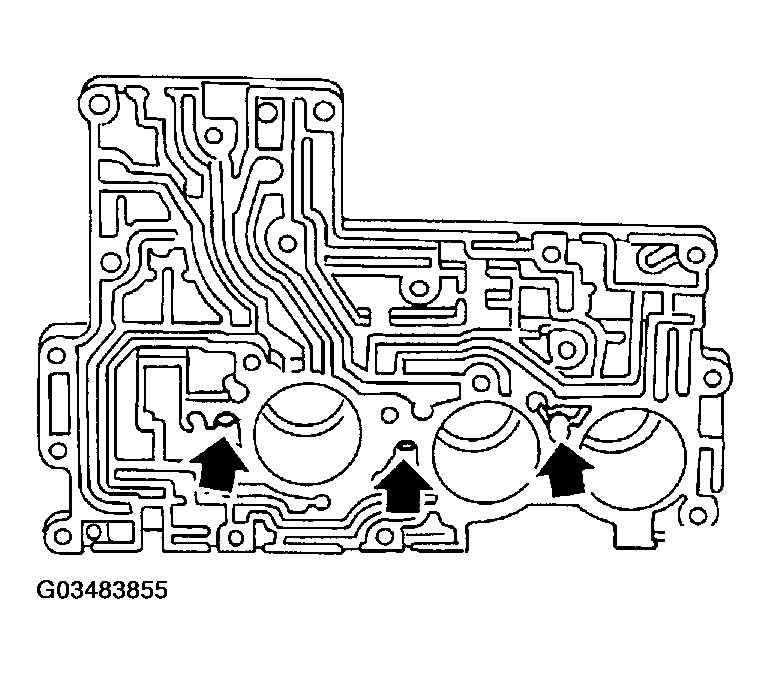

Fig 5: Removing Accumulator Piston From Upper Valve Body
Courtesy of SUBARU OF AMERICA, INC.
