Control Valve Body Assembly: Installation

  1. Set the select lever in range "N".
  2. Align the groove of the manual valve to the protrusion of the manual lever, and then install the control valve body assembly.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.8 ft-lb)

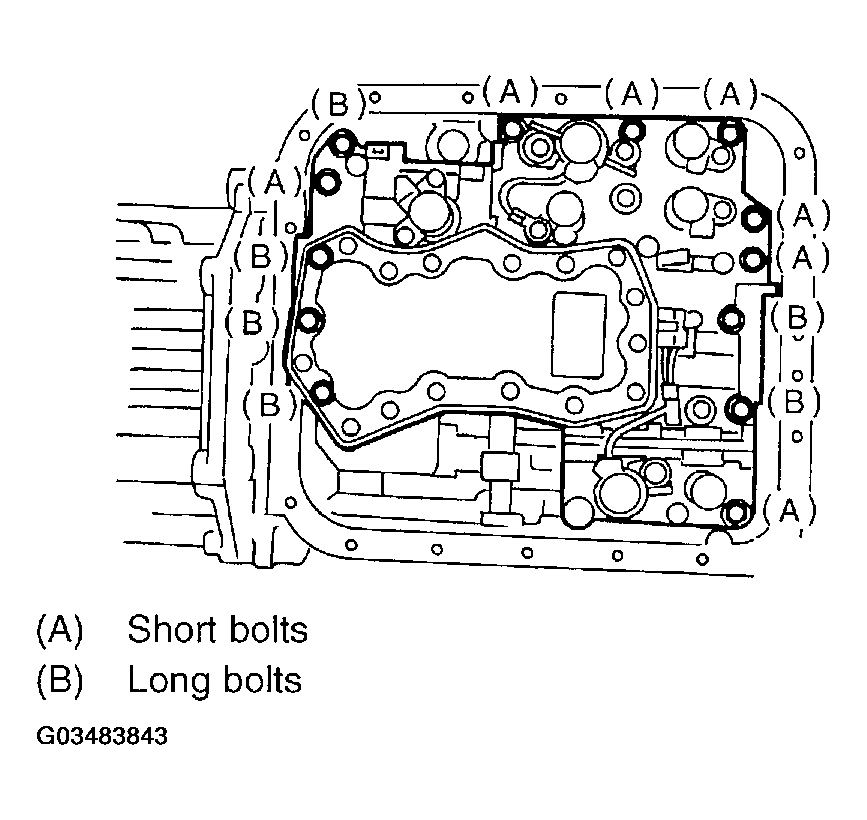

    Fig 1: Aligning Groove Of Manual Valve
    G03483843Courtesy of SUBARU OF AMERICA, INC.
  3. Tighten the valve body to the specified torque.
    NOTE: Tighten the control valve mounting bolts evenly.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.8 ft-lb)

  4. Connect all connectors.

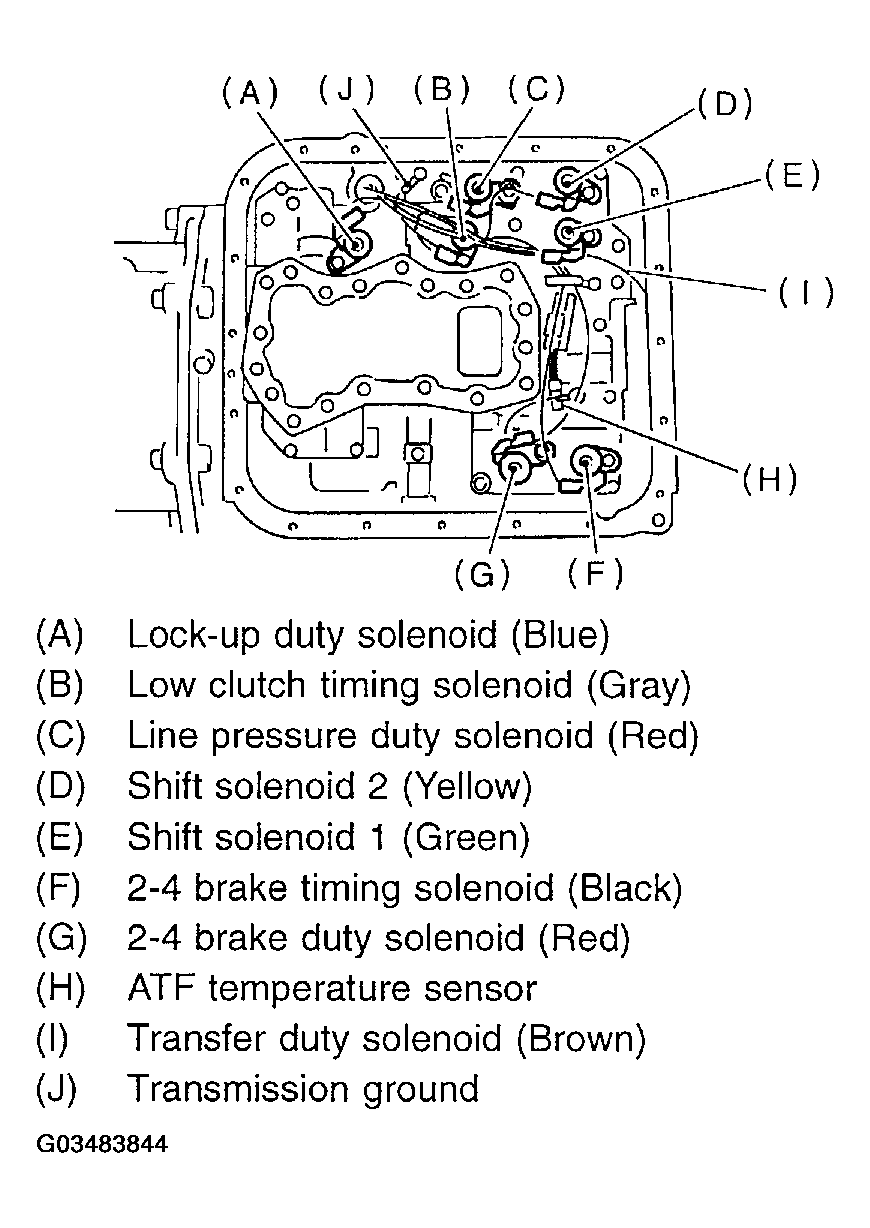

    Fig 2: Connecting Connectors
    G03483844Courtesy of SUBARU OF AMERICA, INC.
  5. Attach the magnet at the specified position.
    Fig 3: Attaching Magnet At Specified
    G03483845Courtesy of SUBARU OF AMERICA, INC.
  6. Apply proper amount of liquid gasket to the entire oil pan mating surface.

    Liquid gasket:

    THREE BOND 1217B

    Fig 4: Applying Liquid Gasket To Entire Oil Pan Mating Surface
    G03483846Courtesy of SUBARU OF AMERICA, INC.
  7. Besides bolt hole on transmission side, completely fill in liquid gasket at three holes.

    Fluid packing:

    THREE BOND 1217B

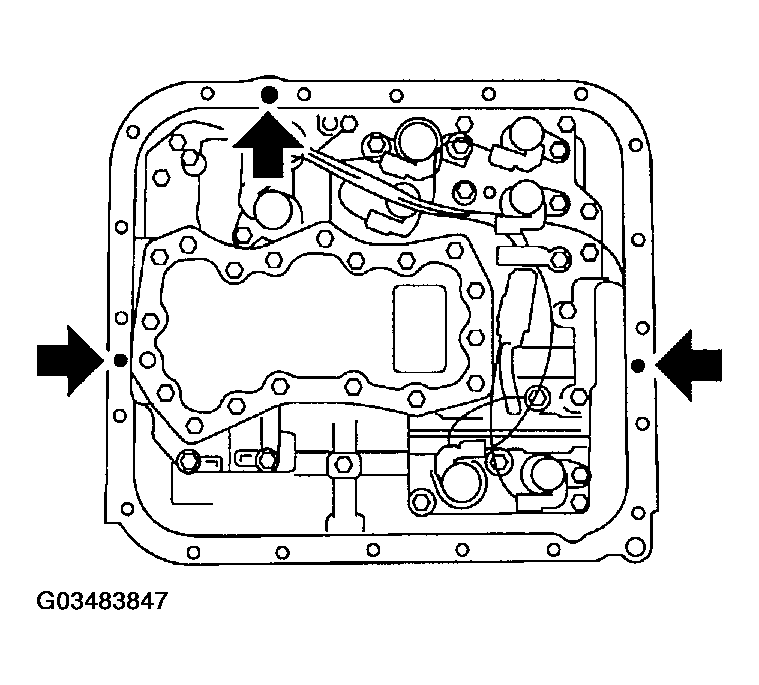

    Fig 5: Identifying Bolt Hole On Transmission Side
    G03483847Courtesy of SUBARU OF AMERICA, INC.
  8. Install the oil pan to the transmission case assembly.
    NOTE: Tighten the bolts evenly.

    Tightening torque:

    5 N.m (0.50 kgf-m, 3.6 ft-lb)

    Fig 6: Installing Oil Pan To Transmission Case Assembly
    G03483848Courtesy of SUBARU OF AMERICA, INC.
  9. Turn over the transmission case to its original position.
  10. Install inhibitor switch and adjust the inhibitor switch by referring to appropriate AUTOMATIC TRANSMISSION (ON-VEHICLE SERVICE) .
  11. Install air breather hose. Refer to INSTALLATION  , Air Breather Hose.
  12. Insert inhibitor switch and transmission connector into stay.

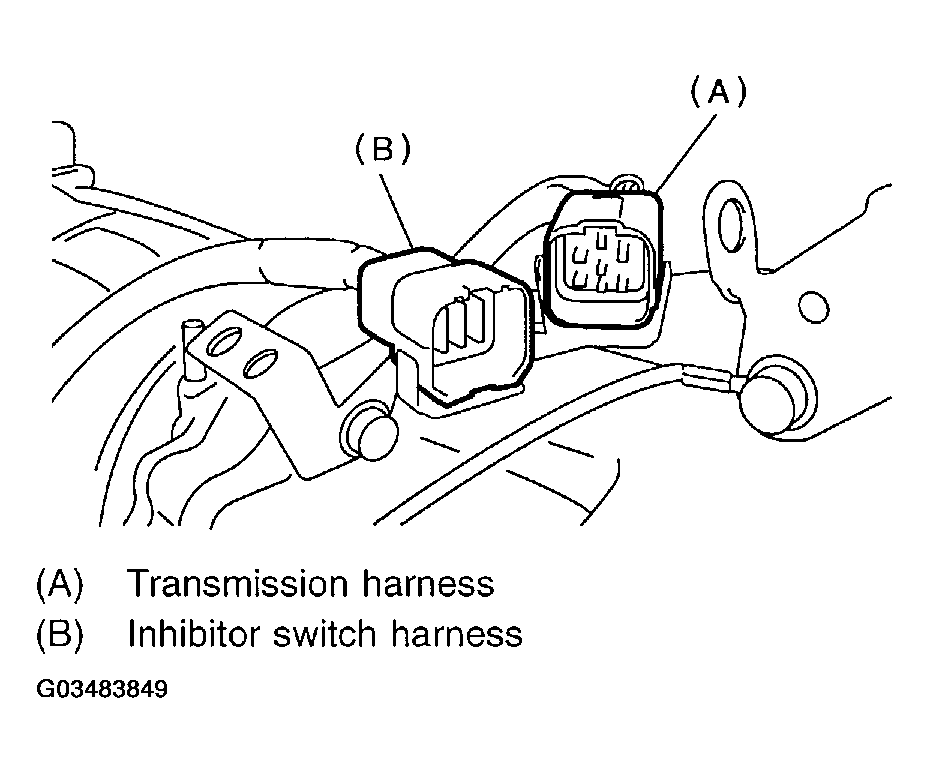

    Fig 7: Inserting Inhibitor Switch And Transmission Connector Into Stay
    G03483849Courtesy of SUBARU OF AMERICA, INC.
  13. Insert the input shaft while turning lightly by hand.
    CAUTION: Be careful not to damage the bushing.

    Normal protrusion A:

    50 - 55 mm (1.97 - 2.17 in)

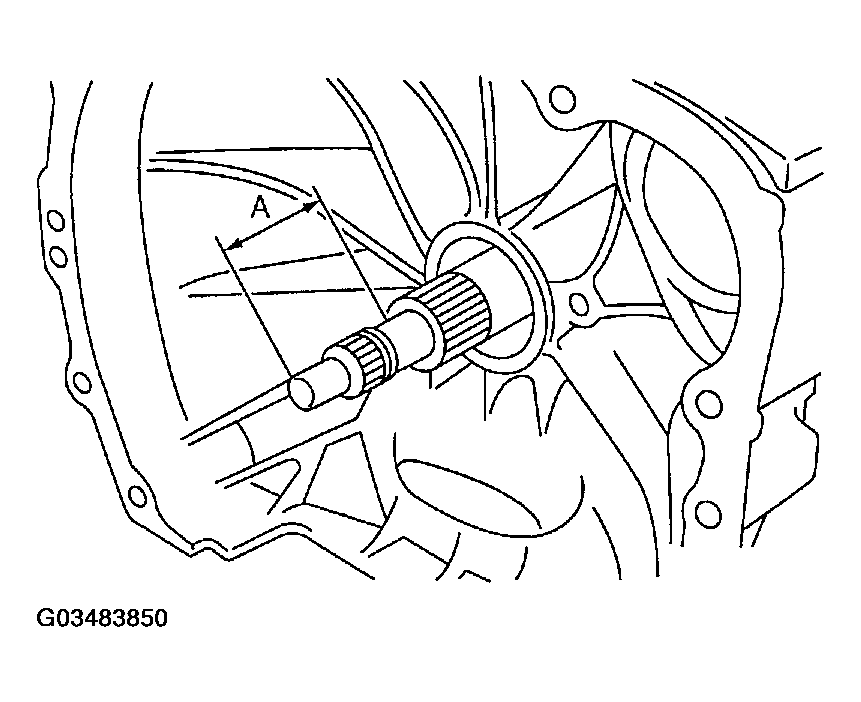

    Fig 8: Inserting Input Shaft
    G03483850Courtesy of SUBARU OF AMERICA, INC.
