Side Retainer

Install bearing outer race to side retainer.
NOTE: Avoid scratching side retainer and bearing outer race when pressing into place.
Install new oil seal.
ST 499797000 INSTALLER

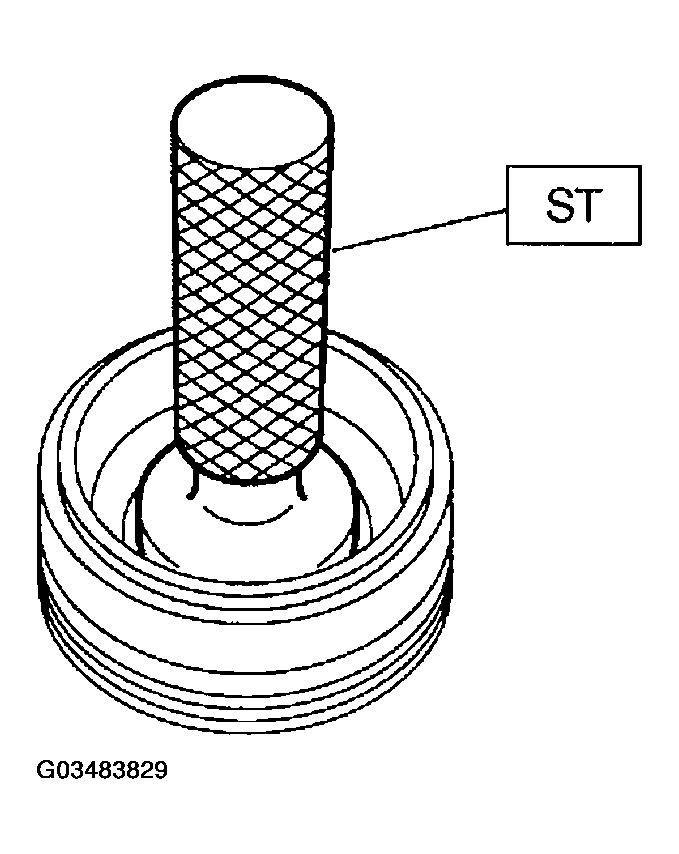

Fig 1: Installing Bearing Outer Race To Side Retainer
Courtesy of SUBARU OF AMERICA, INC.
Install new O-ring.
NOTE: Do not stretch or damage O-ring.

Fig 2: Installing New O-Ring
Courtesy of SUBARU OF AMERICA, INC.
