Select Lever Shift Lock Cannot Be Released Wiring Diagram:

WIRING DIAGRAM:

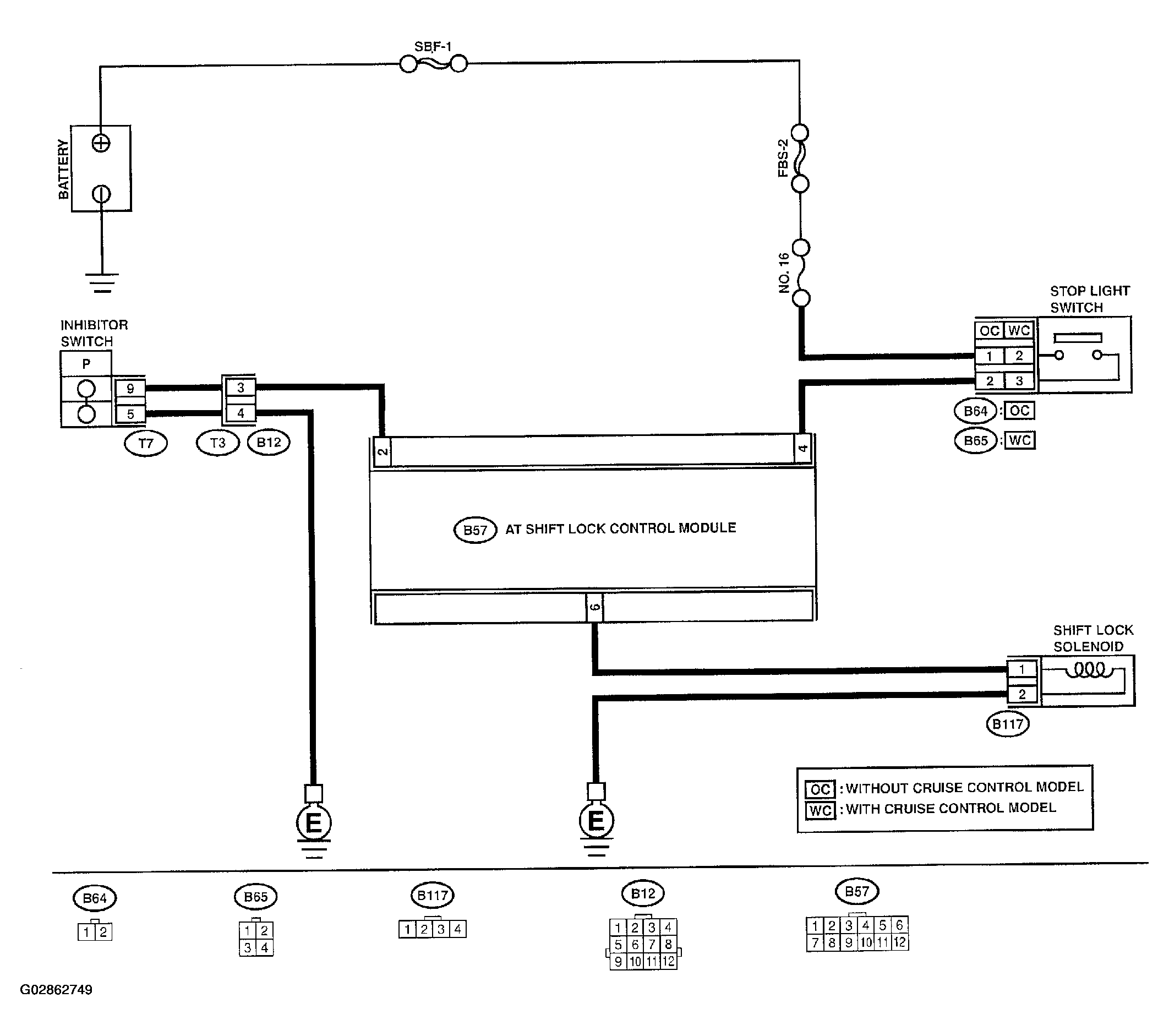

Fig 1: AT Shift Lock Control Module Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

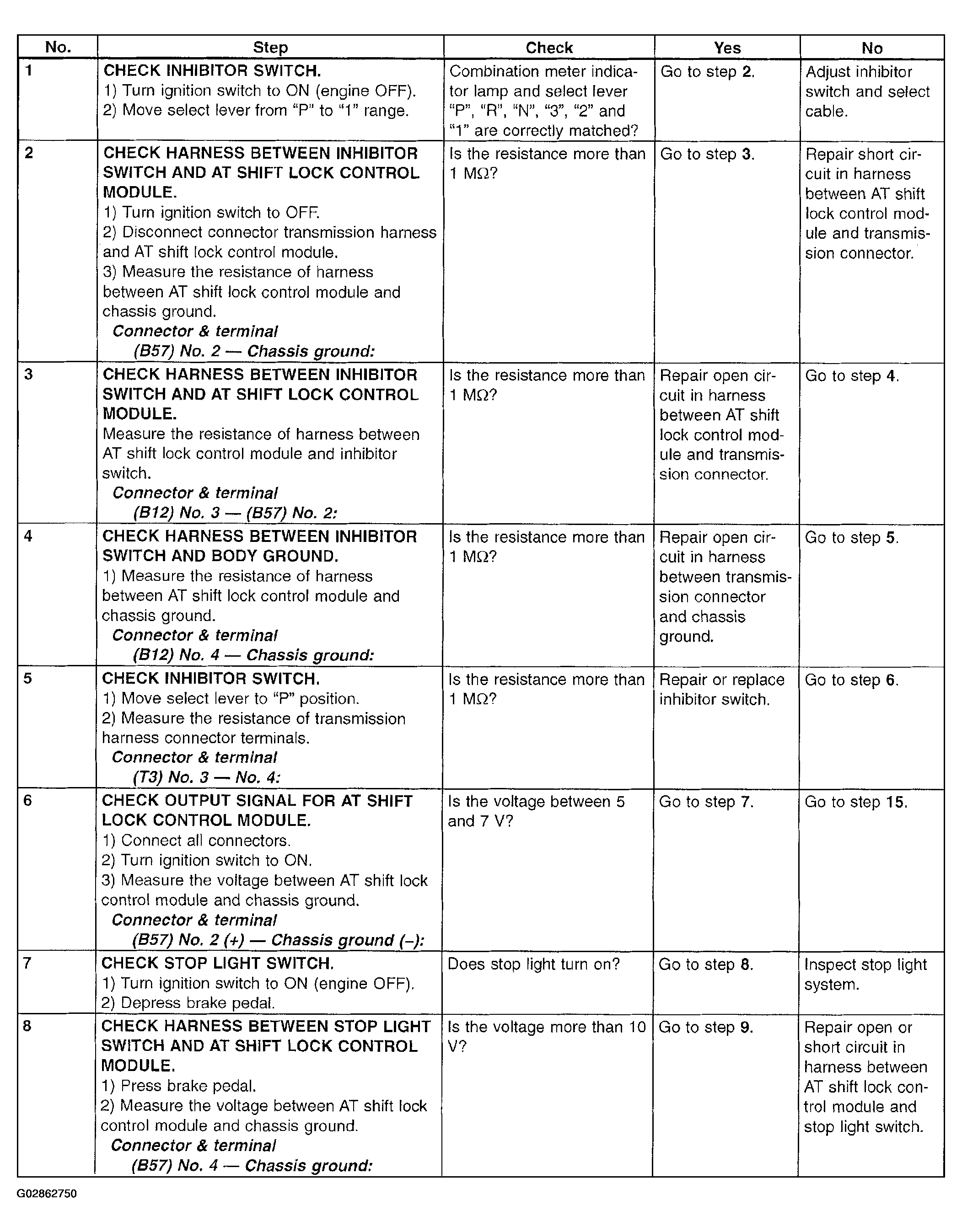

Fig 2: AT Shift Lock Control Module Inspection Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

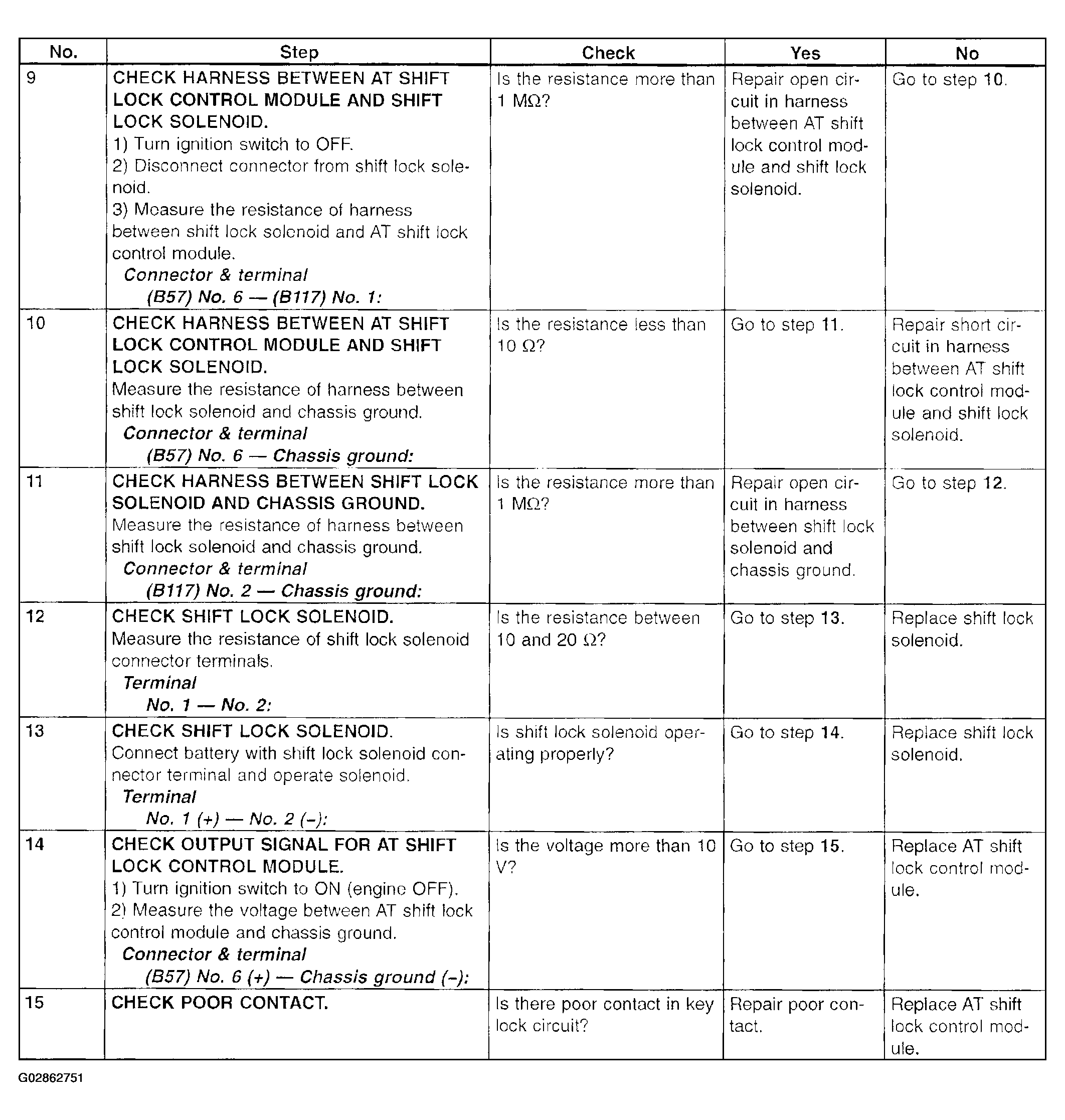

Fig 3: AT Shift Lock Control Module Inspection Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
