Front Inner Remote: Removal

  1. Remove the door trim. Refer to REMOVAL , Front Door Trim.
  2. Remove the sealing cover. Refer to REMOVAL , Front Sealing Cover.
  3. Unlatch rod holder.
  4. Remove the two rod joints.
  5. Remove the front inner remote.

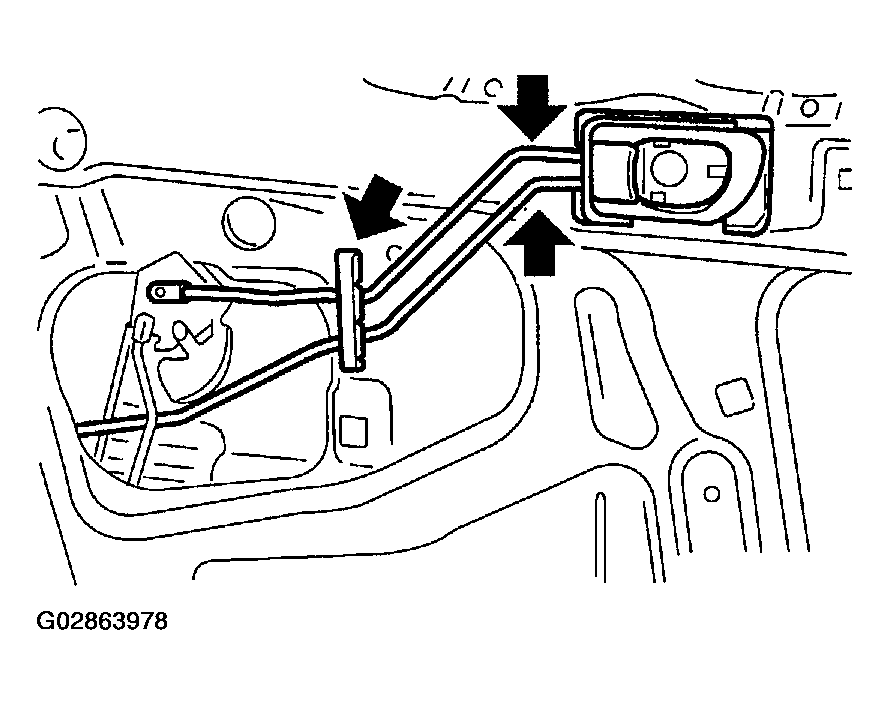

    Fig 1: Removing Front Inner Remote
    G02863978Courtesy of SUBARU OF AMERICA, INC.
