Basic Diagnostic Procedure
Basic Diagnostic Procedure

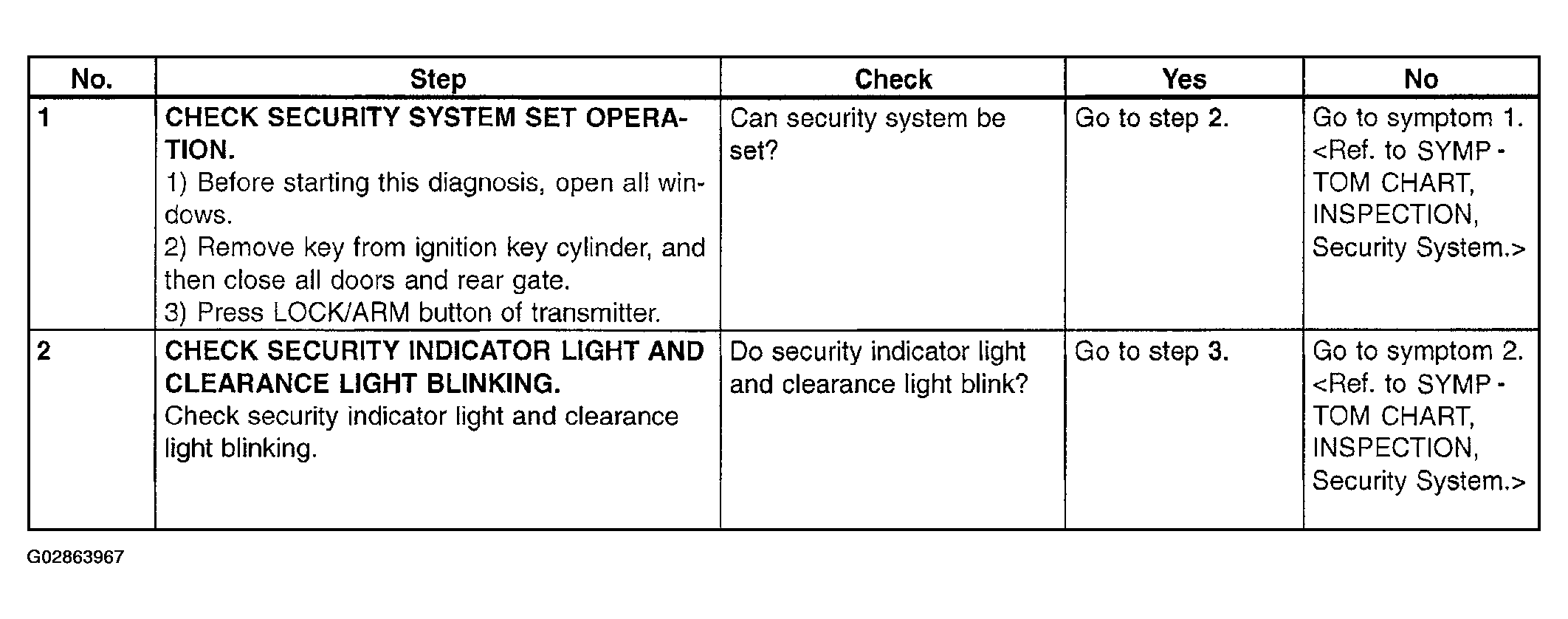

Fig 1: Security System Inspection Basic Diagnostic Procedure (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

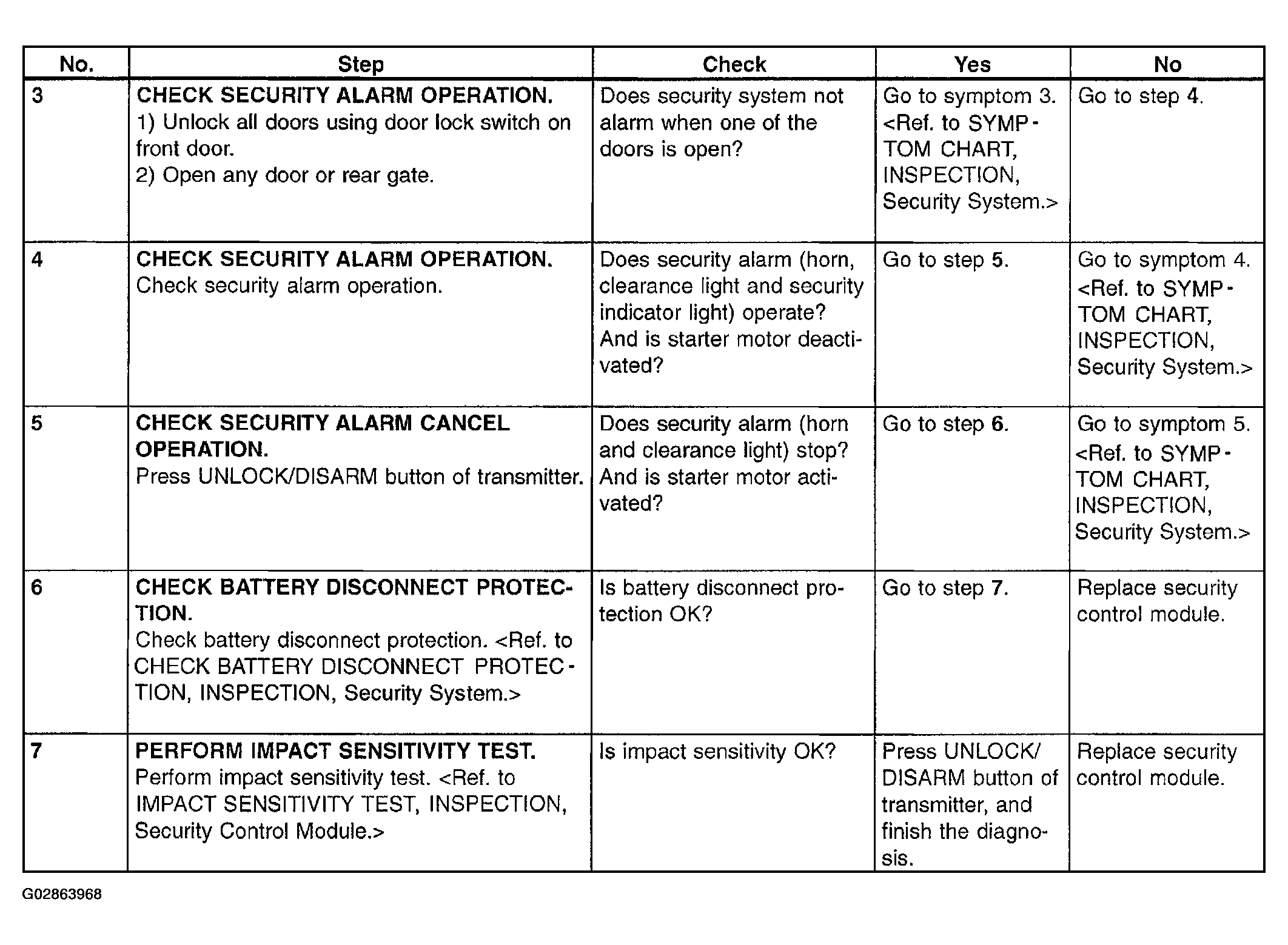

Fig 2: Security System Inspection Basic Diagnostic Procedure (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
