Cruise Control System - Mechanism & Function: Schematic

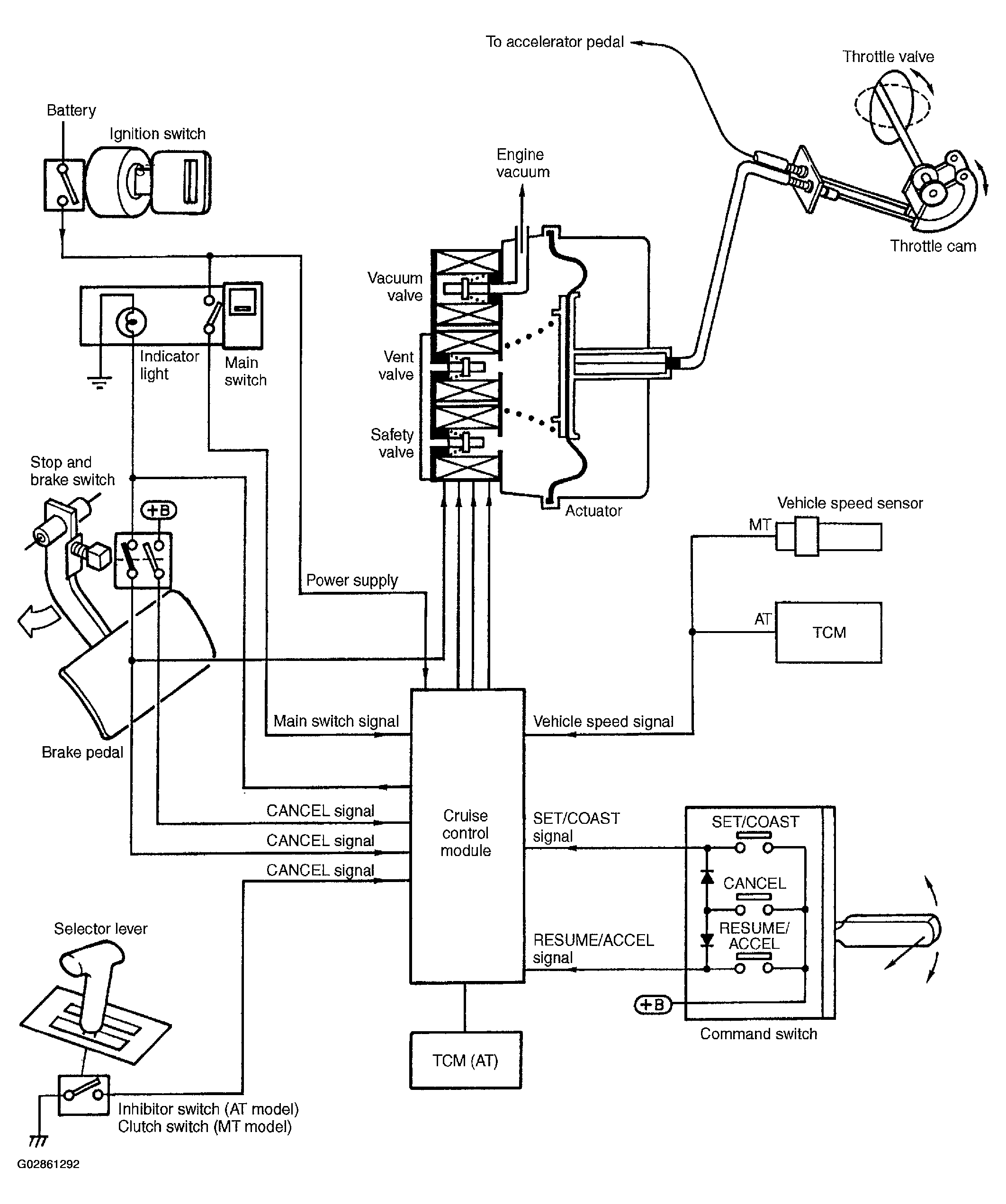

Fig 1: Cruise Control Schematic
G02861292Courtesy of SUBARU OF AMERICA, INC.
