Check Door Lock Switch And Circuit

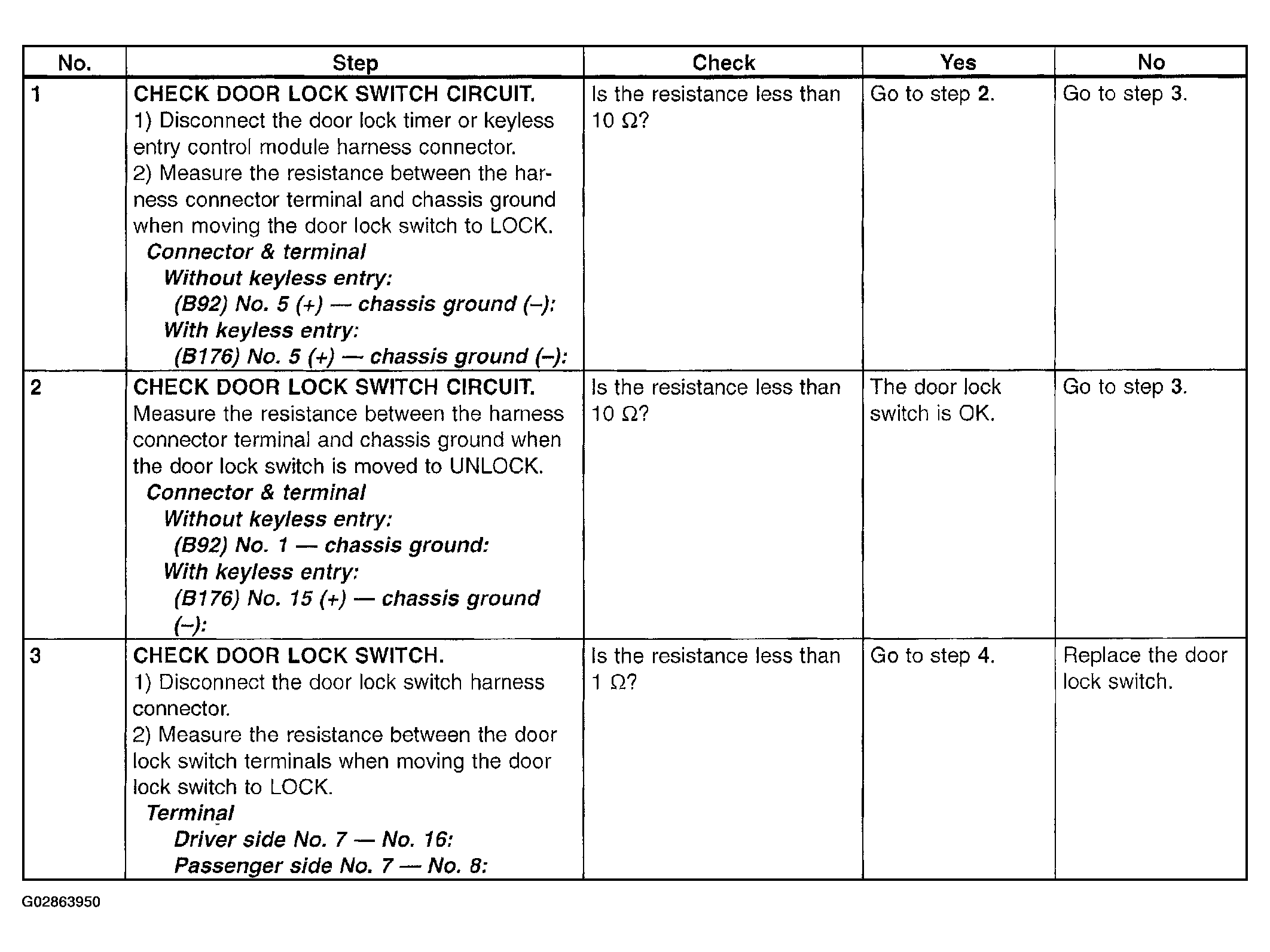

Fig 1: Checking Door Lock Switch & Circuit Inspection Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

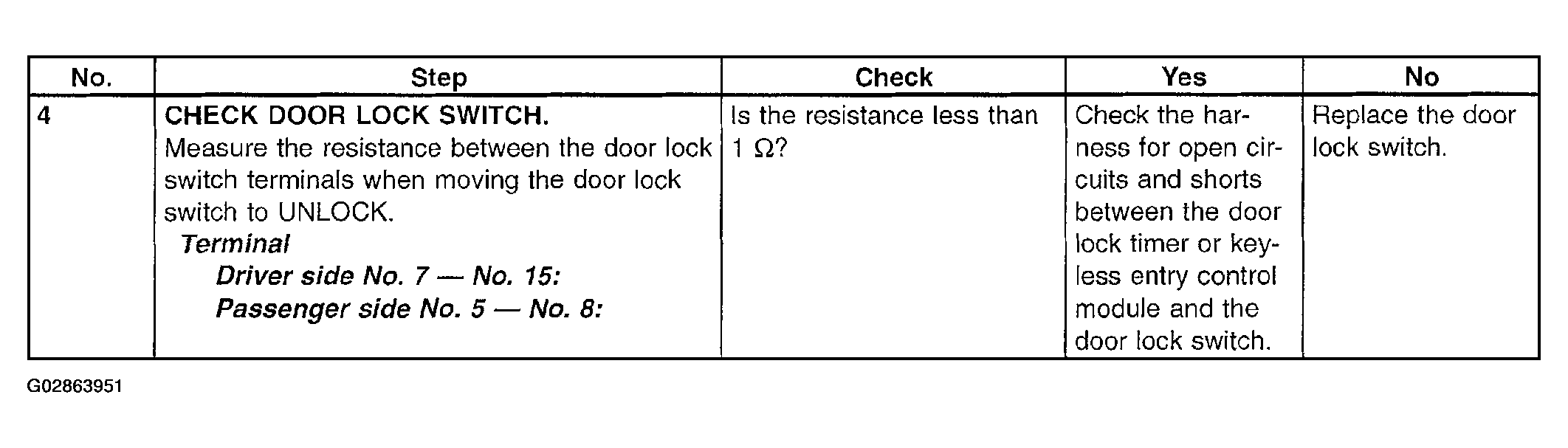

Fig 2: Checking Door Lock Switch & Circuit Inspection Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
