Power Windows - Mechanism & Function
›
Construction
›
Circuit Diagram
Circuit Diagram

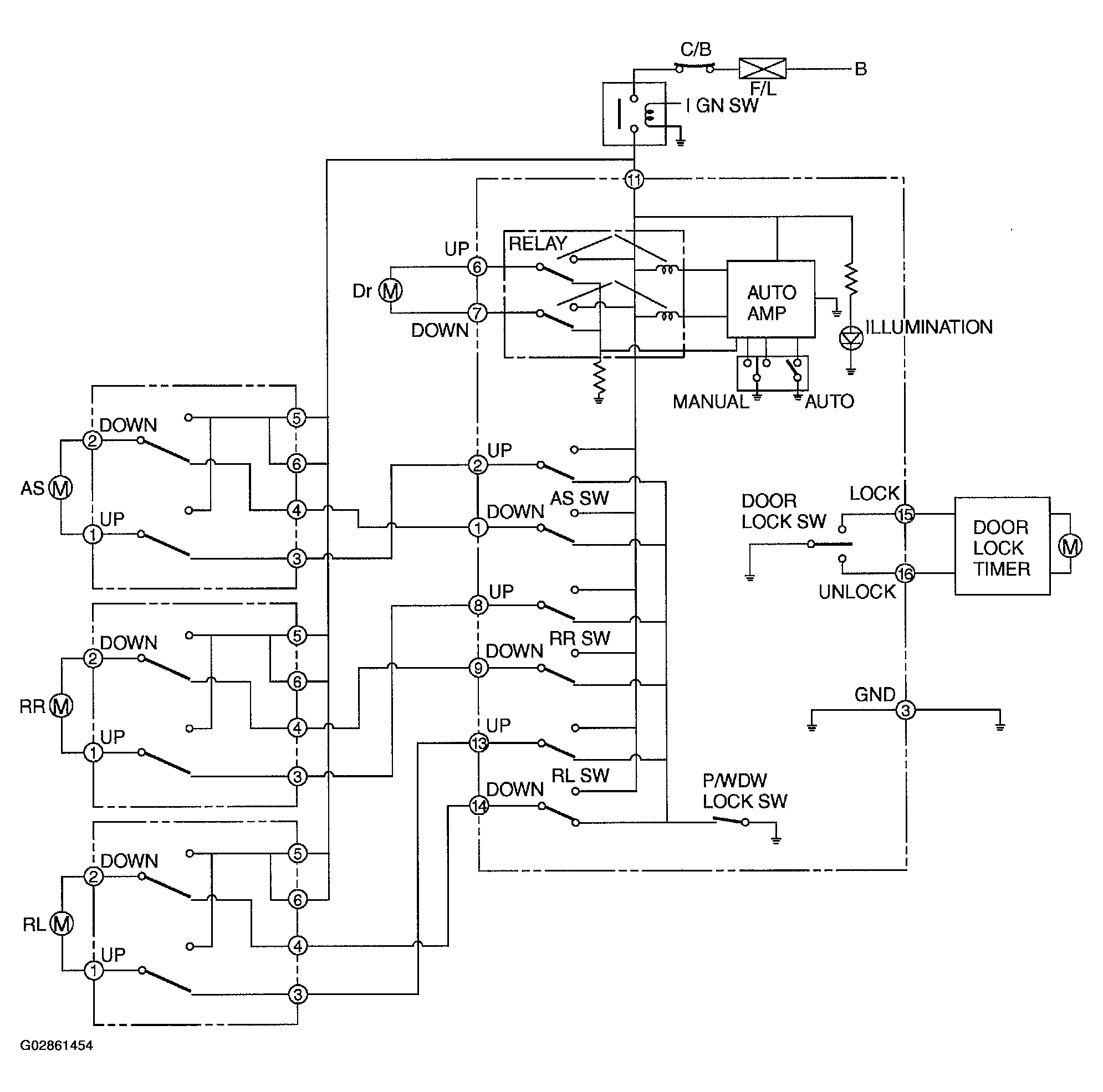

Fig 1: Power Window Wiring Schematic
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
