Operating Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.

Remove air cleaner case. Refer to REMOVAL under AIR CLEANER CASE .
Remove clutch hose from operating cylinder.
CAUTION: Cover hose joint to prevent clutch fluid from flowing out.

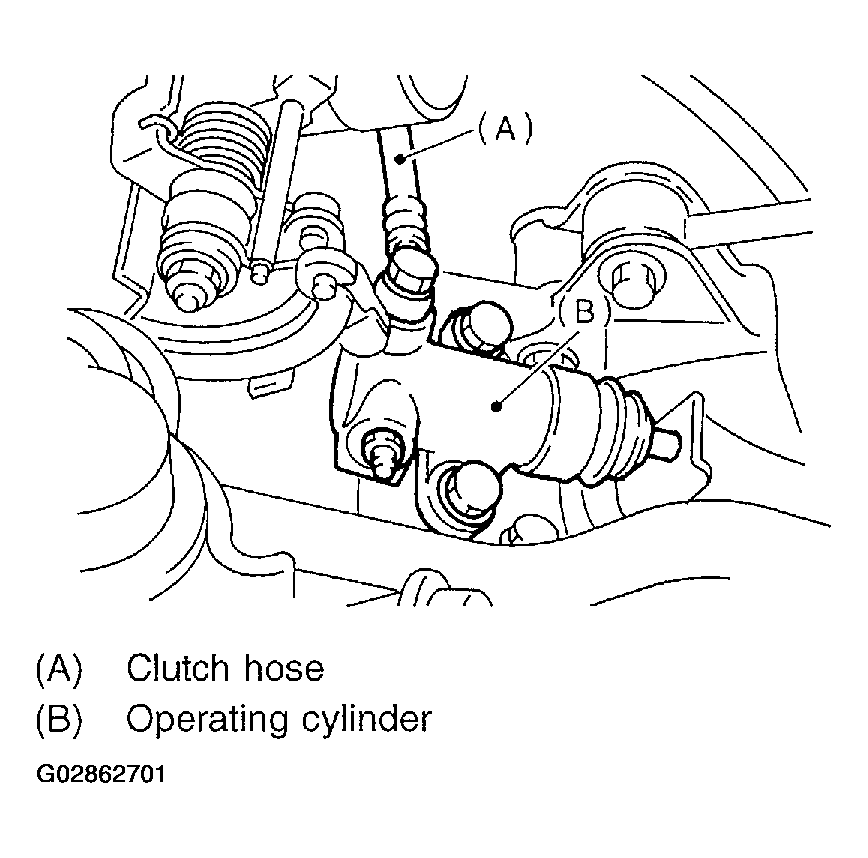

Fig 1: Removing Clutch Hose From Operating Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Remove operating cylinder from transmission.

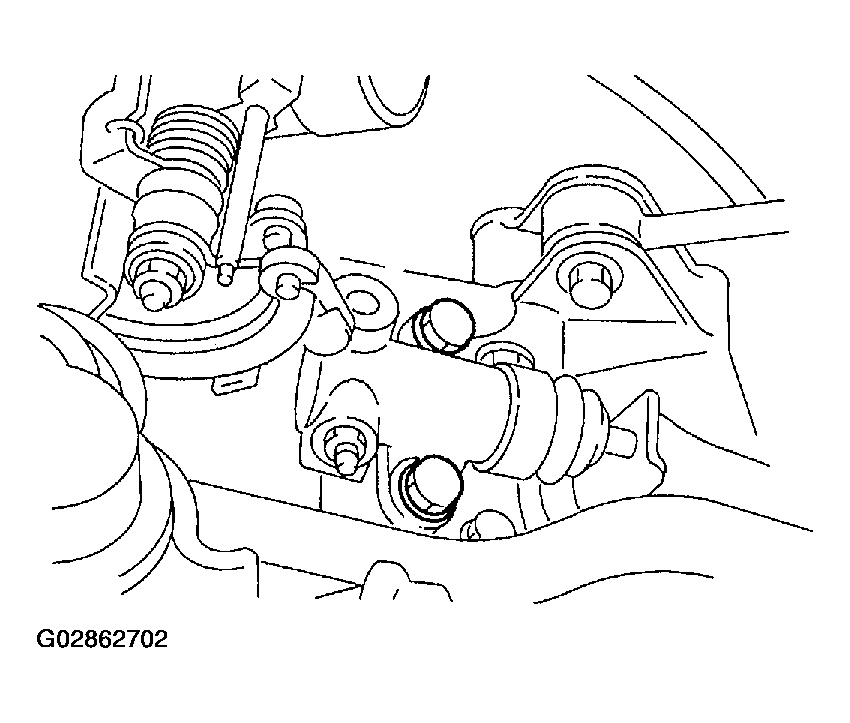

Fig 2: Removing Operating Cylinder From Transmission

Courtesy of SUBARU OF AMERICA, INC.
