Thrust Angle: Inspection
WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Position the vehicle on a level surface.
- Move the vehicle 3 to 4 m (10 to 13 ft) directly forward.

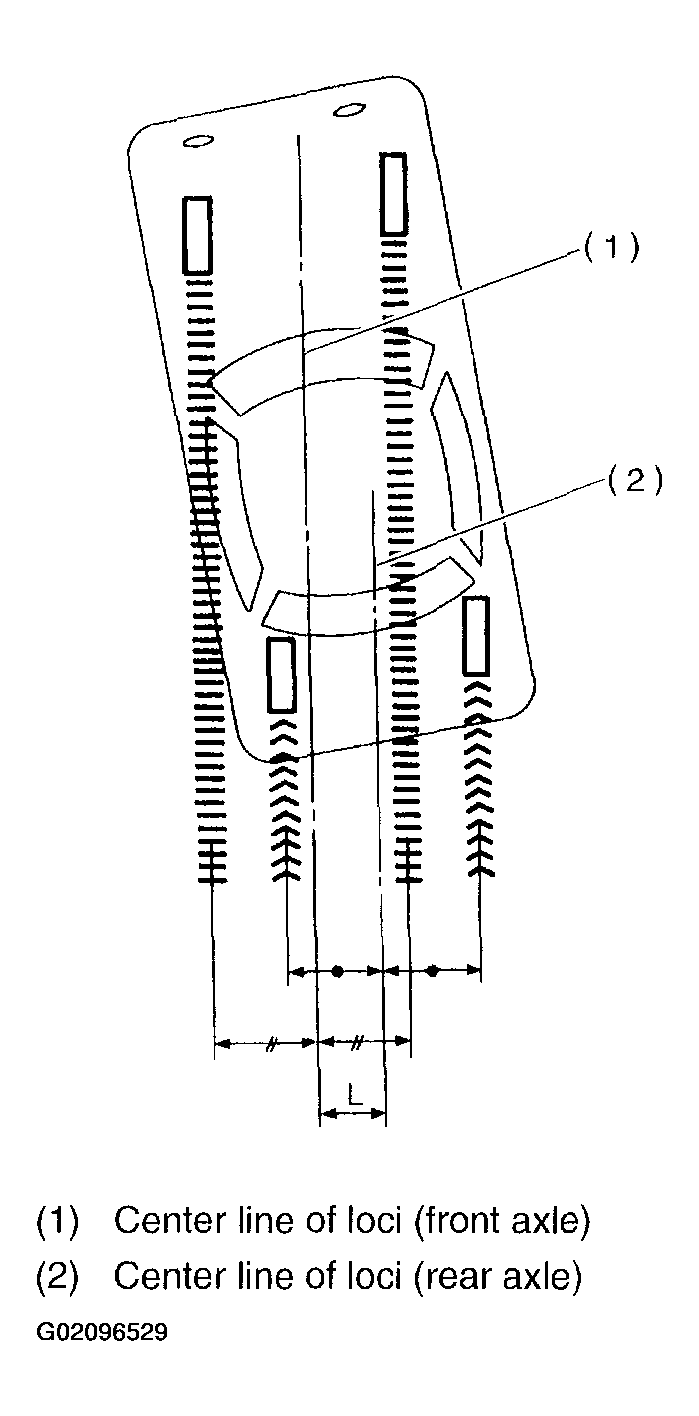

- Determine the center lines of front axle loci and rear axle loci.
- Measure the distance "L" between center line of loci of the axles.
- Thrust angle: Less than 30' when "L" is less than 22 mm (0.9 in).
