Non-Turbo Model

Reassembly precautions
1. Whenever the O-rings, oil seals, and snap rings are removed, they must be replaced with new ones.
2. Thoroughly wash the parts and allow to dry. They must be kept free from cleaning oil and dust.
3. Reassembly procedure must be performed in clean place. Ensure that the parts are kept away from the waste threads or other dust particles.
4. Cleaning oil tends to stay inside the front casing. Remove it completely by blowing compressed air.
5. Ensure that the parts are free from rust. (Use specified hydraulic oil for rust prevention after cleaning and drying.)
6. Reverse the sequence of disassembly procedures.
Apply the grease to the oil seal and inner surface of front casing (at bearing location).
CAUTION: Make sure that the front body internal surfaces are free from damage.
Attach ST to the front body. Using a press, install the oil seal.
ST 34199AE030

Fig 1: Installing Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
Press-fit the shaft assembly into the front body.
Apply the specified hydraulic oil to the O-rings and fit them into the front casing.
Install the side plate to the front casing.
CAUTION: Use care not to let side plate gall.

Fig 2: Installing Side Plate To Front Casing
Courtesy of SUBARU OF AMERICA, INC.
Install the cam ring to the front casing with alignment mark facing forward.

Fig 3: Installing Cam Ring To Front Casing
Courtesy of SUBARU OF AMERICA, INC.
Install the rotor to the front casing with groove facing rearward.

Fig 4: Installing Rotor To Front Casing
Courtesy of SUBARU OF AMERICA, INC.

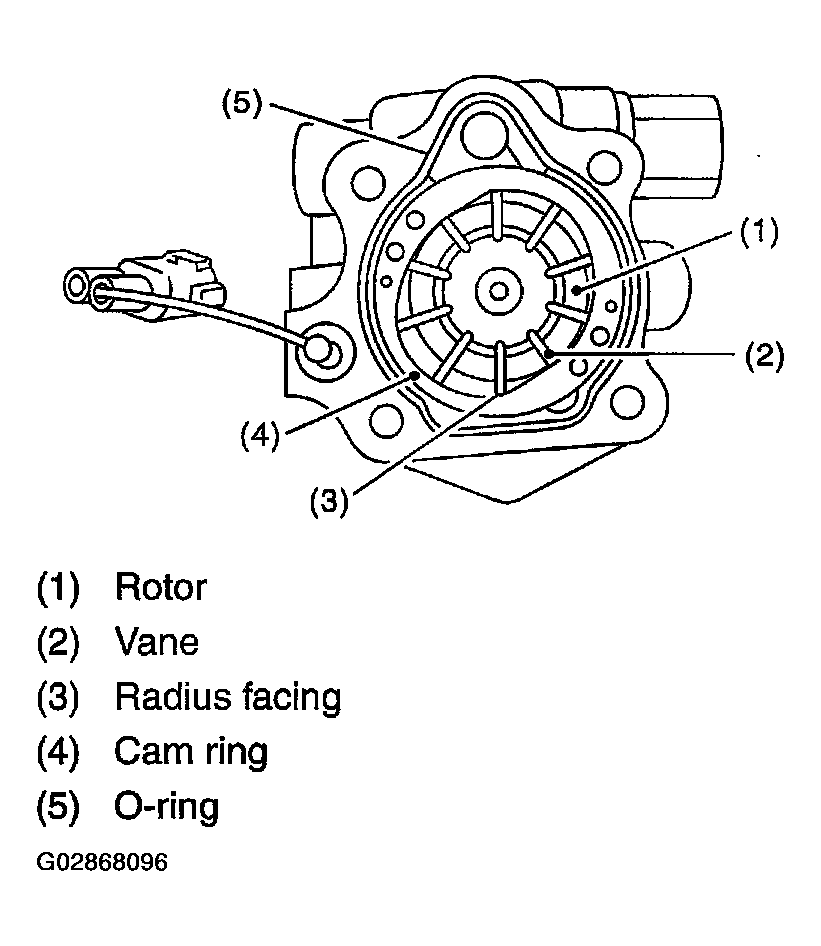

Install the 10 vanes into the rotor with their nose radius facing toward cam ring.
Install the cam ring to the front casing, securing with knock pins.
CAUTION: Do not use hammer to fit knock pins in position.
Mount the O-ring on the front casing.

Fig 5: Installing O-Ring On Front Casing
Courtesy of SUBARU OF AMERICA, INC.

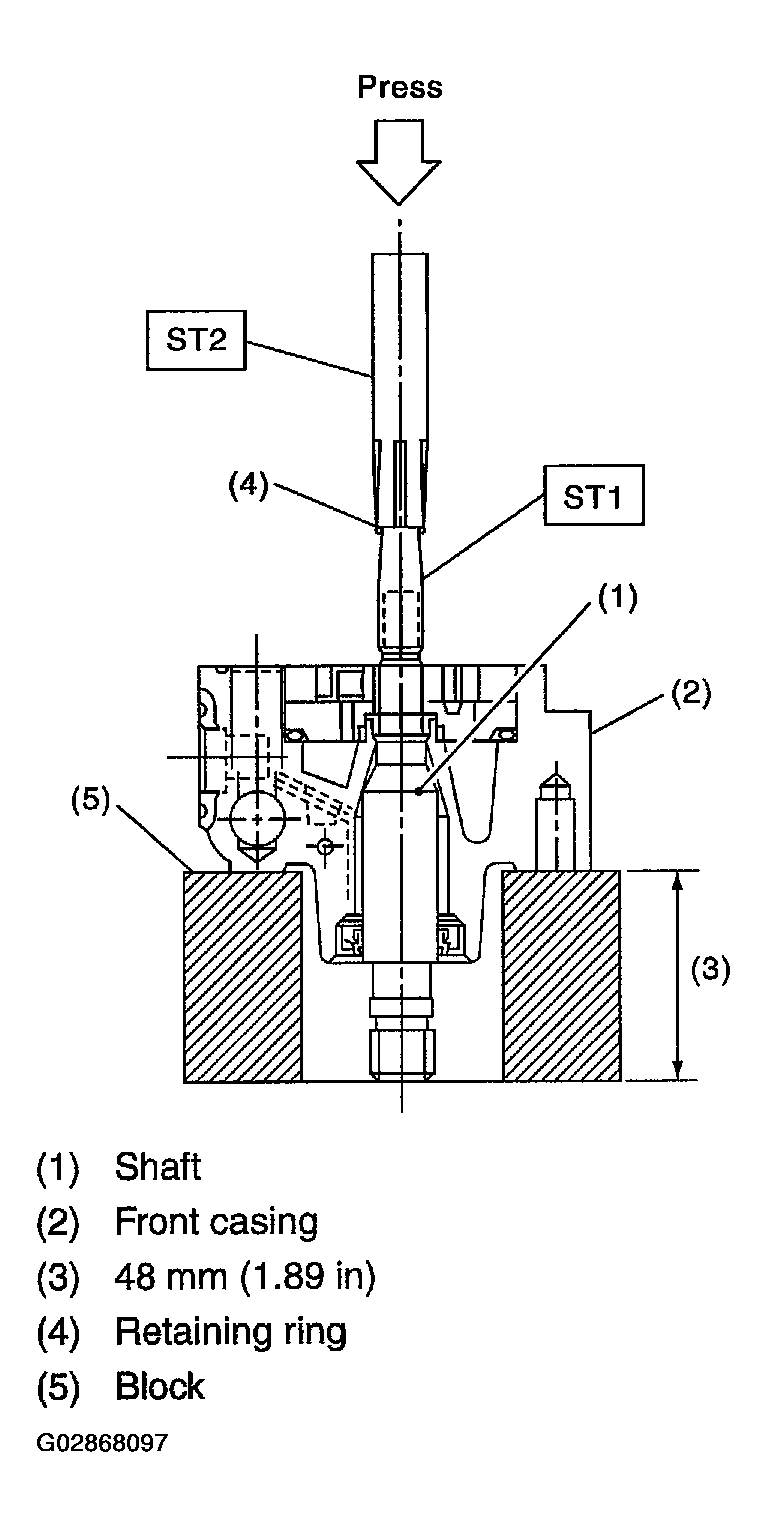

Using STs, press the retaining ring into the shaft groove.
CAUTION: Discard retaining ring and replace with a new one.

NOTE: Use ST2, bending its top edge slightly toward the inside.

ST1 34099AC030 INSTALLER RETAINING RING CAP

ST2 34099AC040 INSTALLER RETAINING RING PIPE

Fig 6: Installing Retaining Ring Into Shaft Groove
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Make sure the retaining ring is fit in the second groove of the shaft.

Fig 7: Installing Retaining Ring In Second Groove Of Shaft
Courtesy of SUBARU OF AMERICA, INC.
Mount on pressure switch on front casing.

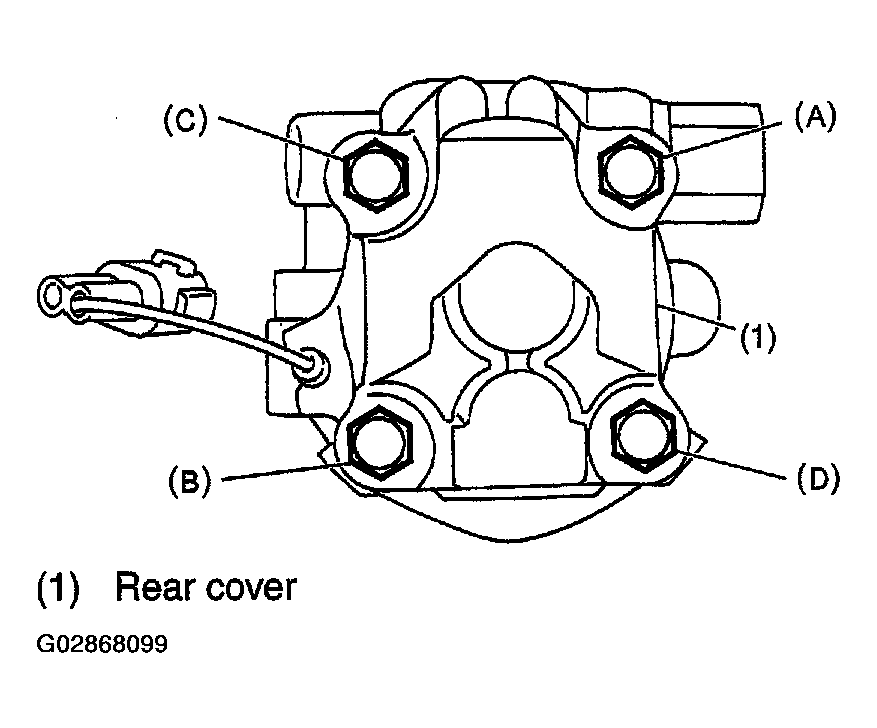

With knock pin positions aligned, install the rear cover.
CAUTION: Loosely the tighten bolts in the sequence (A), (B), (C), and (D) shown in figure. Then, tighten in the same sequence.

Tightening torque: 21 N.m (2.14 kgf-m, 15.5 ft-lb)

Fig 8: Installing Pressure Switch On Front Casing
Courtesy of SUBARU OF AMERICA, INC.

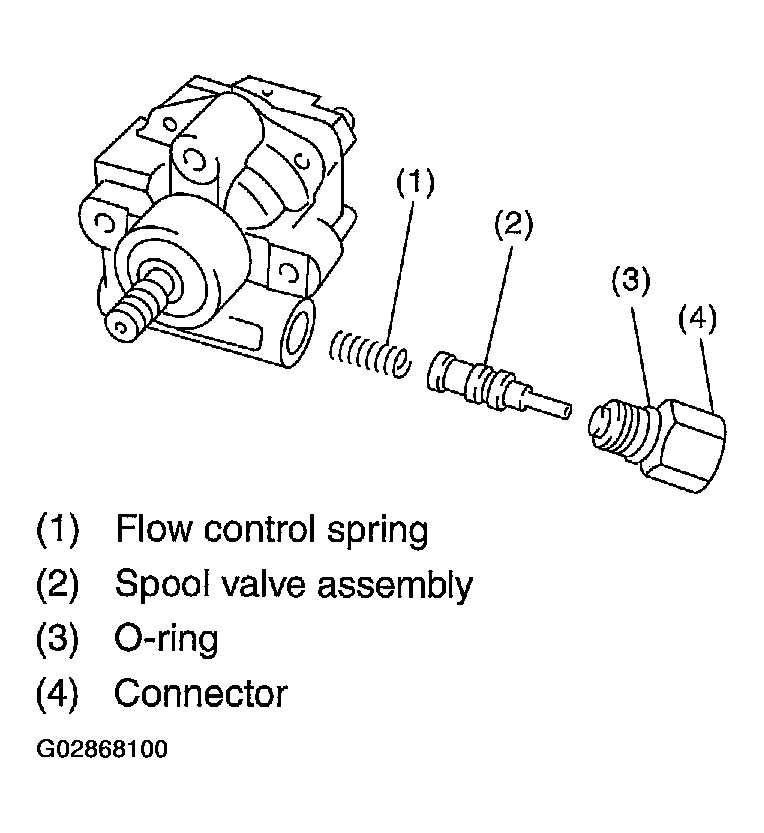

Install the spring into the front casing. Then, with spool valve dipped in specified hydraulic oil, install it into the front casing.
Using a 5-mm dia. round bar, ensure that the valve moves smoothly.
Set the O-ring, with grease applied to it, onto the connector and secure connector to the front casing.
CAUTION:
- Use care to prevent damage to O-ring at installation.
- When tightening the connector, ensure that the O-ring does not protrude or get caught.
Tightening torque: 49 N.m (5.0 kgf-m, 36.2 ft-lb)

Fig 9: Installing O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Fix the oil pump pulley temporarily.
When the reassembly procedures have been completed, turn the shaft by hand to ensure it turns smoothly. If it binds or other unusual conditions are evident, disassemble again and check for foreign matter trapped on sliding surfaces and improper installation. Eliminate the cause of trouble.
Check followings by referring to "CHECK" article.
- Excessive play in pulley shaft
- Ditch deflection of pulley
- Resistance to rotation of pulley
- Measurement of generated oil pressure
