Basic Inspection

Perform the following inspection procedures and repair or replace defective parts.

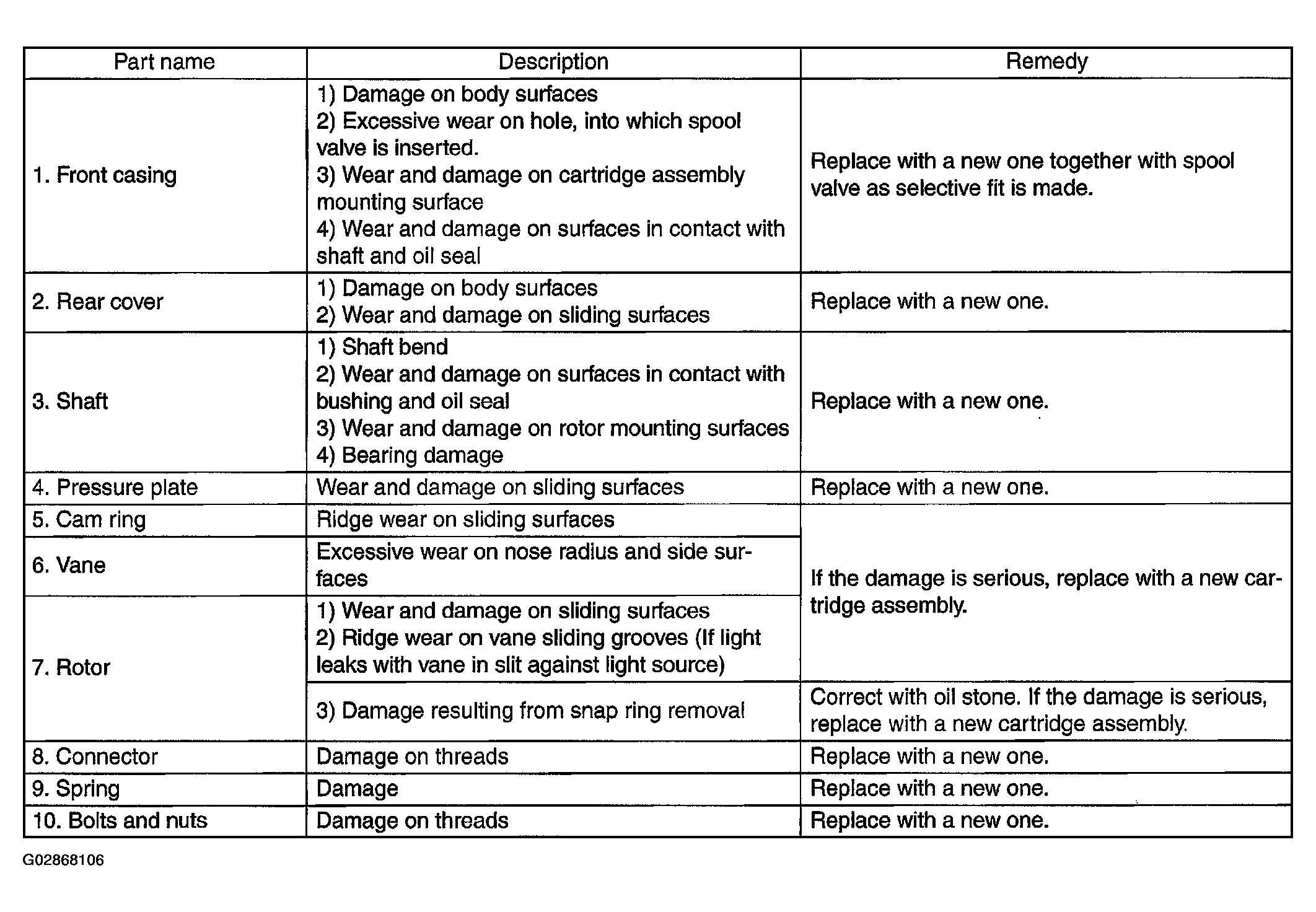

Fig 1: Inspection Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

• In accordance with the following table, check all removed parts for wear and damage, and make repair or replacement if necessary.

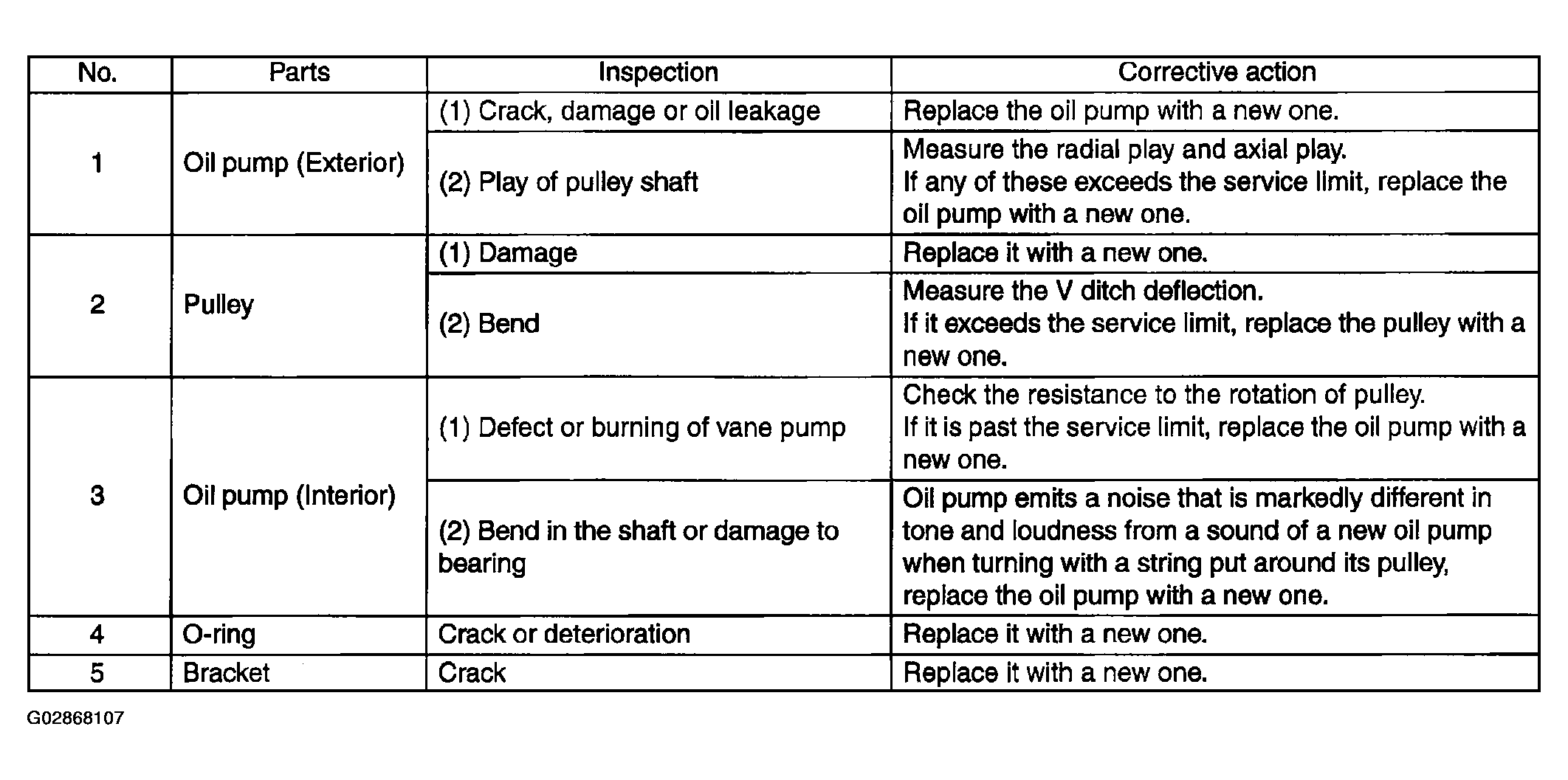

  Fig 2: Inspection Chart (2 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.
