Service Limit

Make a measurement as follows. If it exceeds the specified service limit, replace the parts with new ones.

CAUTION:

Fix oil pump on a vise to make a measurement. At this time, hold oil pump with the least possible force between two wood pieces.
Do not set outside of flow control valve or pulley on a vise; otherwise outside or pulley might be deformed. Select properly sized wood pieces.

Play of pulley shaft
On condition: P: 9.8 N (1.0 kgf, 2.2 lb)

Service limit:

Radial play (Direction <==> ) 0.4 mm (0.016 in) or less

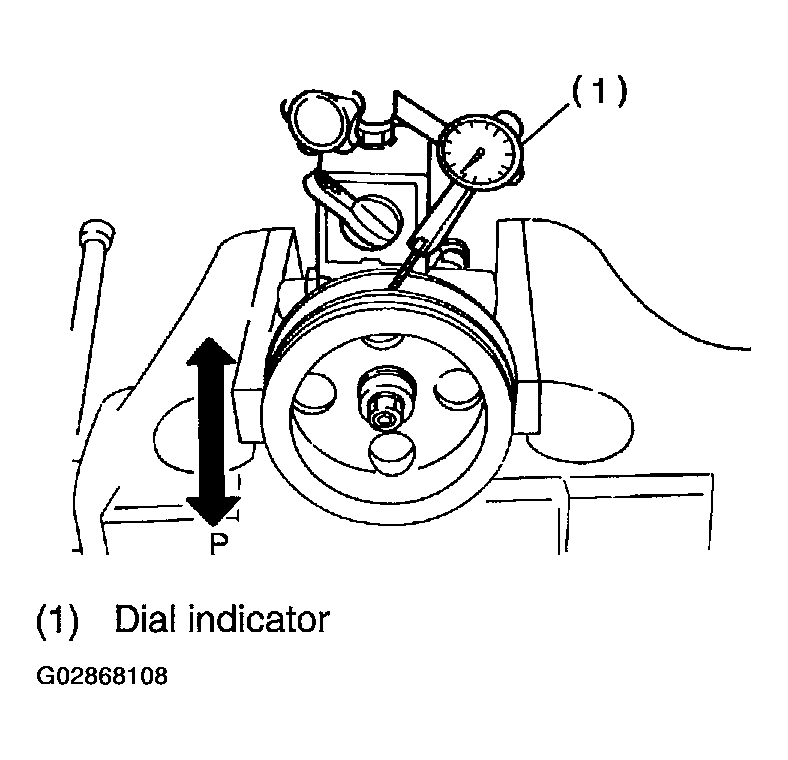

Fig 1: Checking Radial Play
Courtesy of SUBARU OF AMERICA, INC.

Axial play (Direction <==> )

Non-TURBO model 0.4 mm (0.016 in) or less

TURBO model 0.8 mm (0.031 in) or less

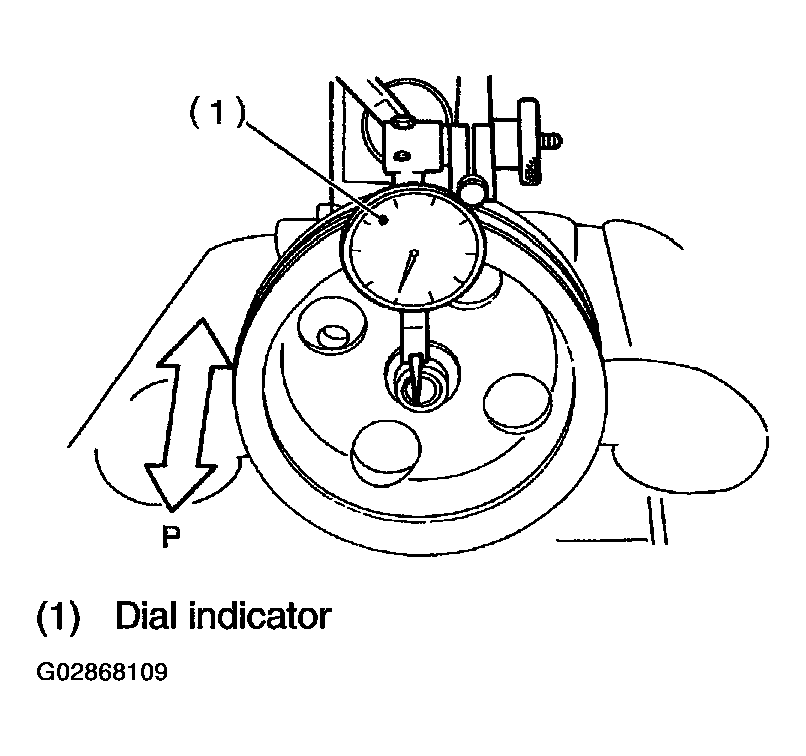

Fig 2: Checking Axial Play
Courtesy of SUBARU OF AMERICA, INC.
Ditch deflection of pulley
Service limit: 1.0 mm (0.039 in) or less

NOTE: Read the value for one surface of V ditch, and then the value for another off the dial.

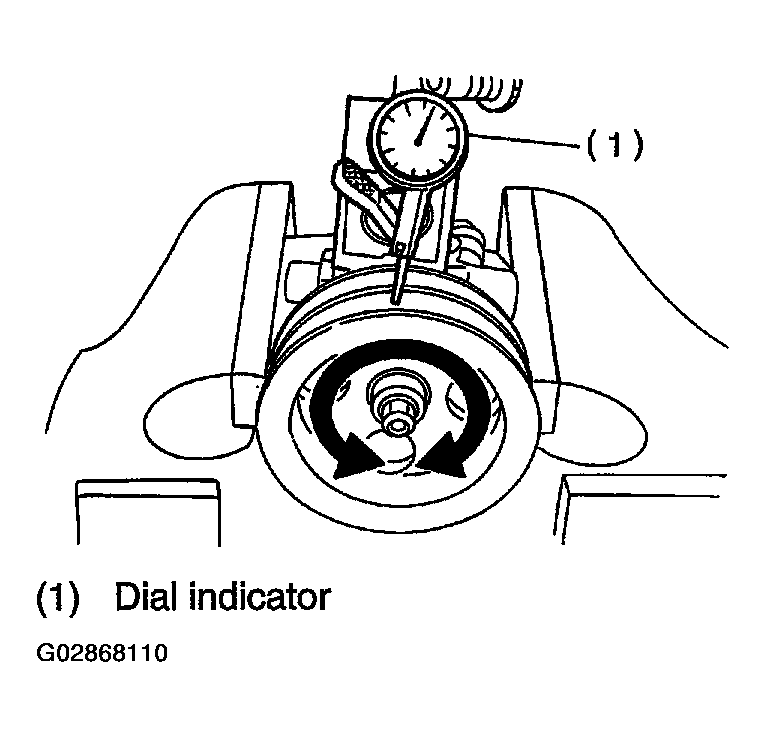

Fig 3: Checking Service Limit
Courtesy of SUBARU OF AMERICA, INC.
Resistance to rotation of pulley
Service limit:

Maximum load; 9.22 N (0.94 kgf, 2.07 lb) or less

NOTE:

A rather higher value may be indicated when pulley starts turning.
Measure the load during rotation and make a judgment.

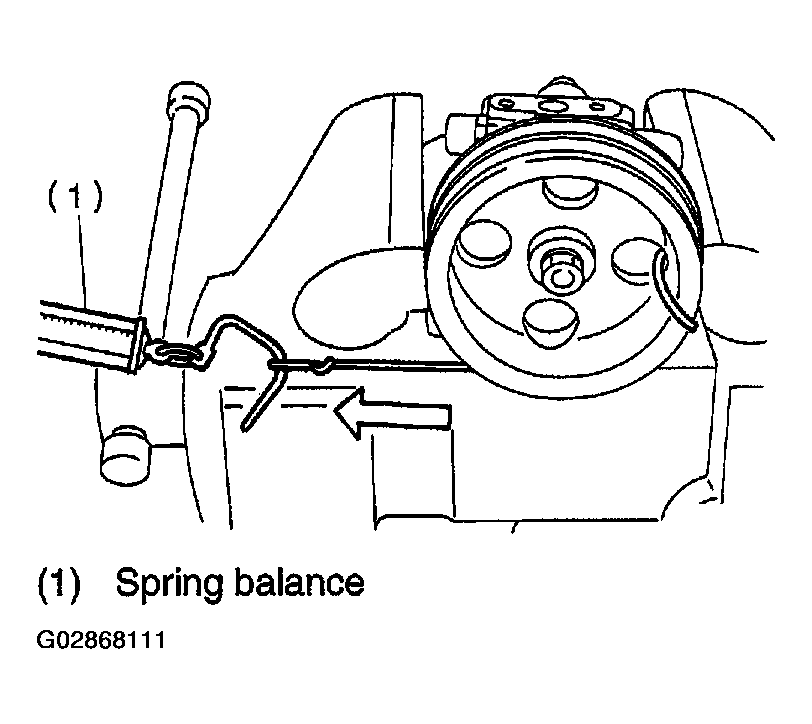

Fig 4: Measuring Load During Rotation
Courtesy of SUBARU OF AMERICA, INC.
