Non-Turbo Model

1. Place the oil pump bracket in a vise. Tighten the bushing using a 12.7 mm (1/2") type 14 and 21-mm box wrench until it is in contact with oil pump mounting surface.
   CAUTION: Do not place oil pump bracket directly in the vise; use soft pads and hold oil pump lightly to protect the pump.
   Fig 1: Installing Oil Pump To Bracket (Non-Turbo Model)

   Courtesy of SUBARU OF AMERICA, INC.
2. Tighten the bolt which installs oil pump to the bracket.

   Tightening torque: 15.7 N.m (1.6 kgf-m, 11.6 ft-lb)

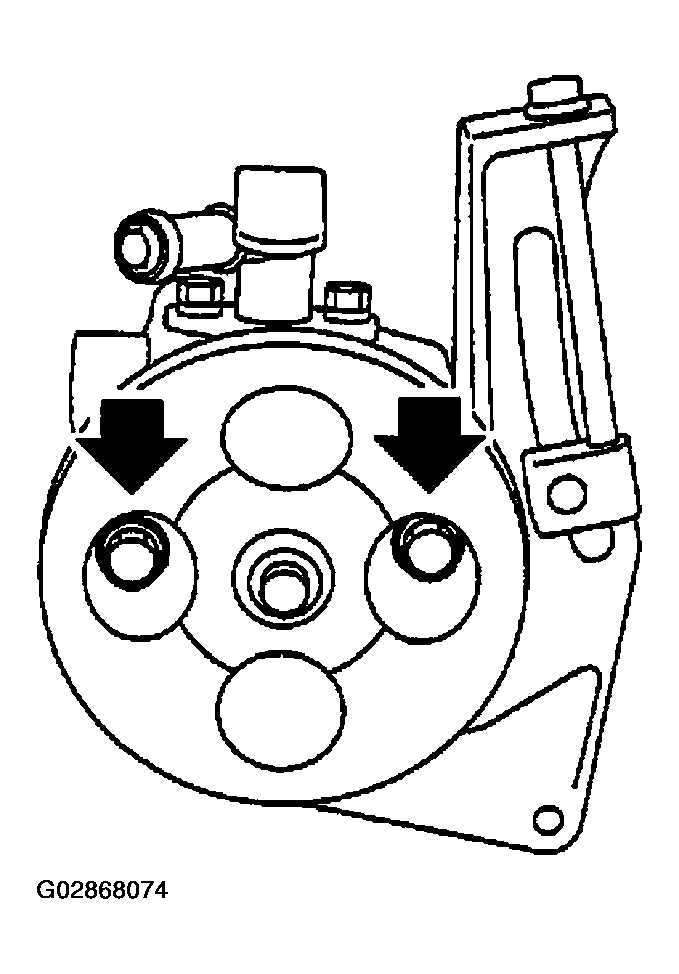

   Fig 2: Installing Oil Pump To Bracket

   Courtesy of SUBARU OF AMERICA, INC.

   Tightening torque: 37.3 N.m (3.8 kgf-m, 27.5 ft-lb)

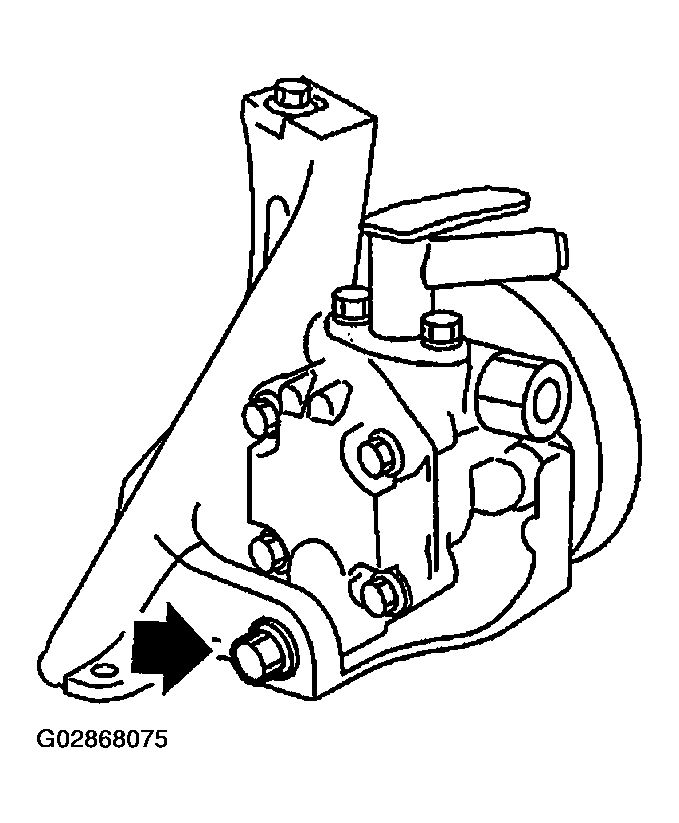

   Fig 3: Tightening Bolt

   Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 22 N.m (2.2 kgf-m, 15.9 ft-lb)

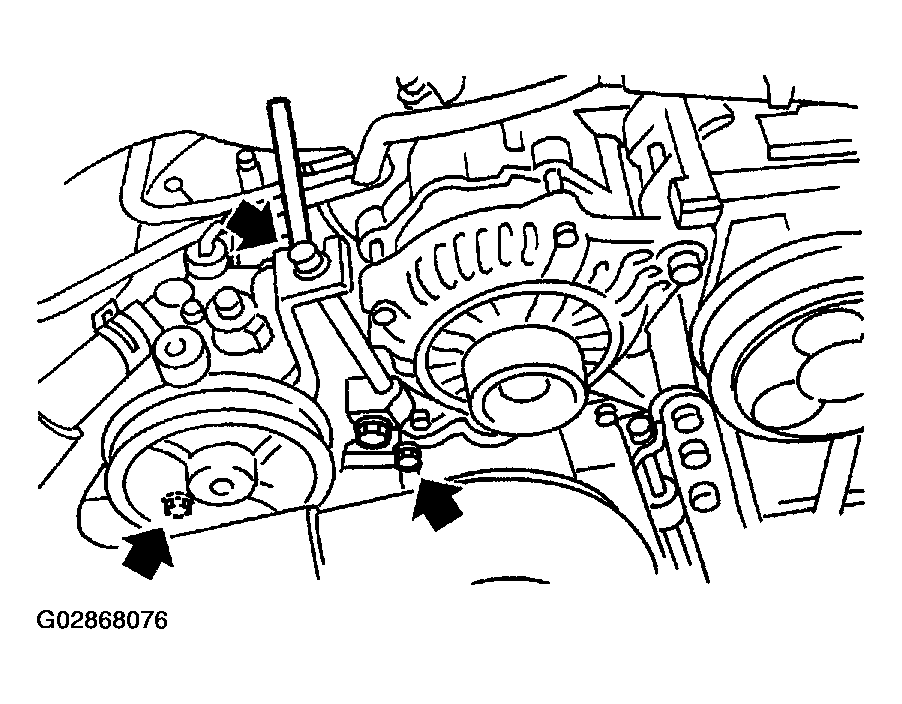

Fig 4: Tightening Power Steering Pump Bracket Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Joint nut 39.2 N.m (4 kgf-m, 28.9 ft-lb)

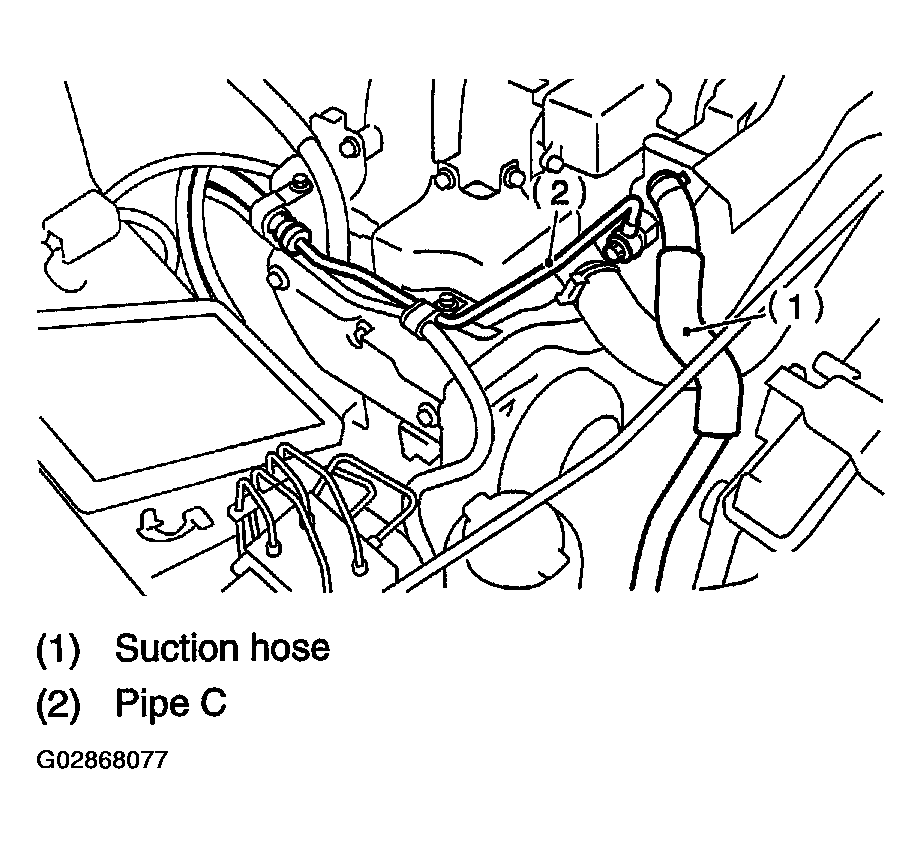

Fig 5: Connecting Pipe C & Suction Hose

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 52 N.m (5.3 kgf-m, 38 ft-lb)

Refer to DRIVE BELT ADJUSTMENT .

Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)
