Automatic Transmission (Mechanism & Function)
›
Transmission Control Module (TCM)
›
Control System
Control System

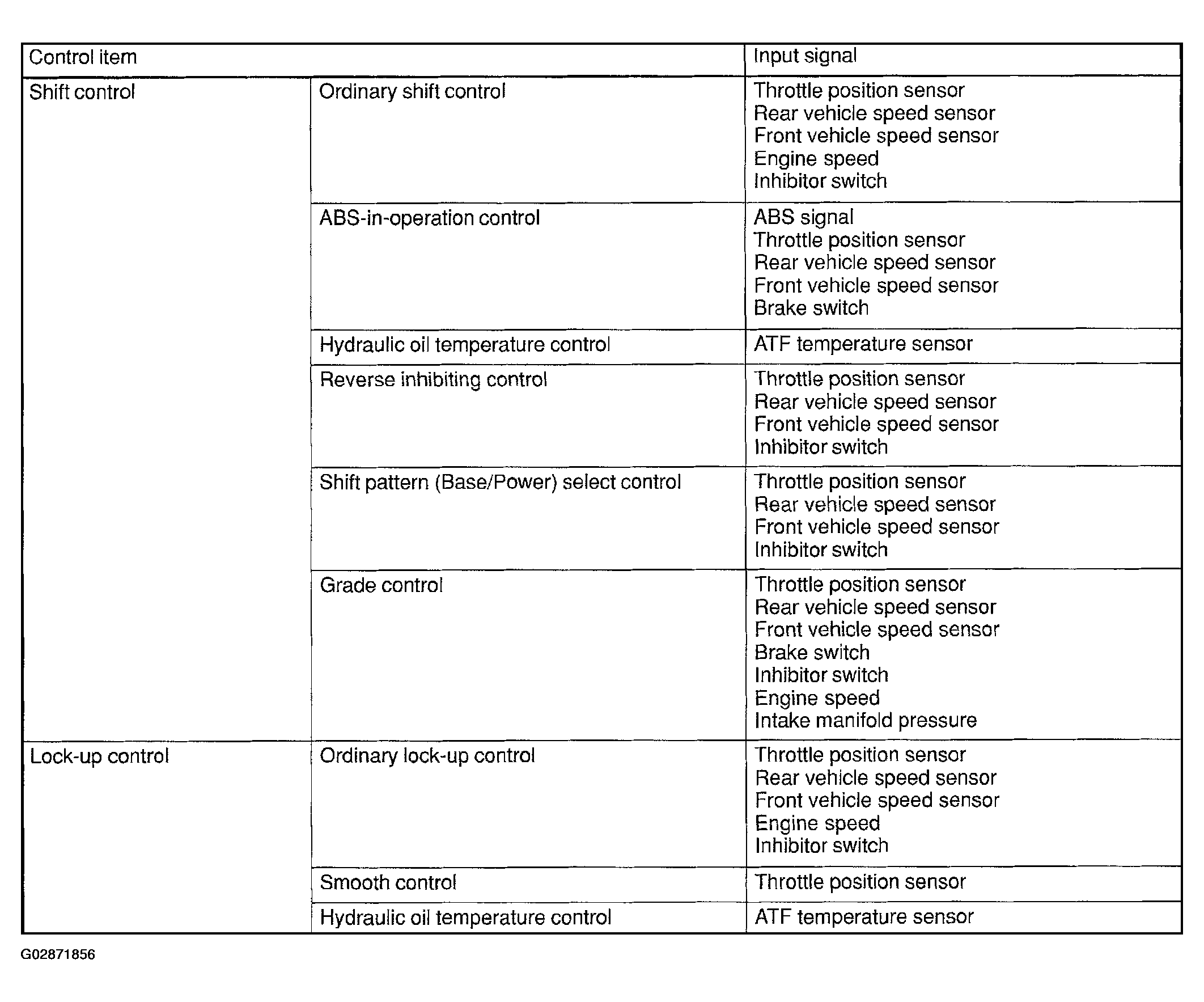

Fig 1: Control System Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

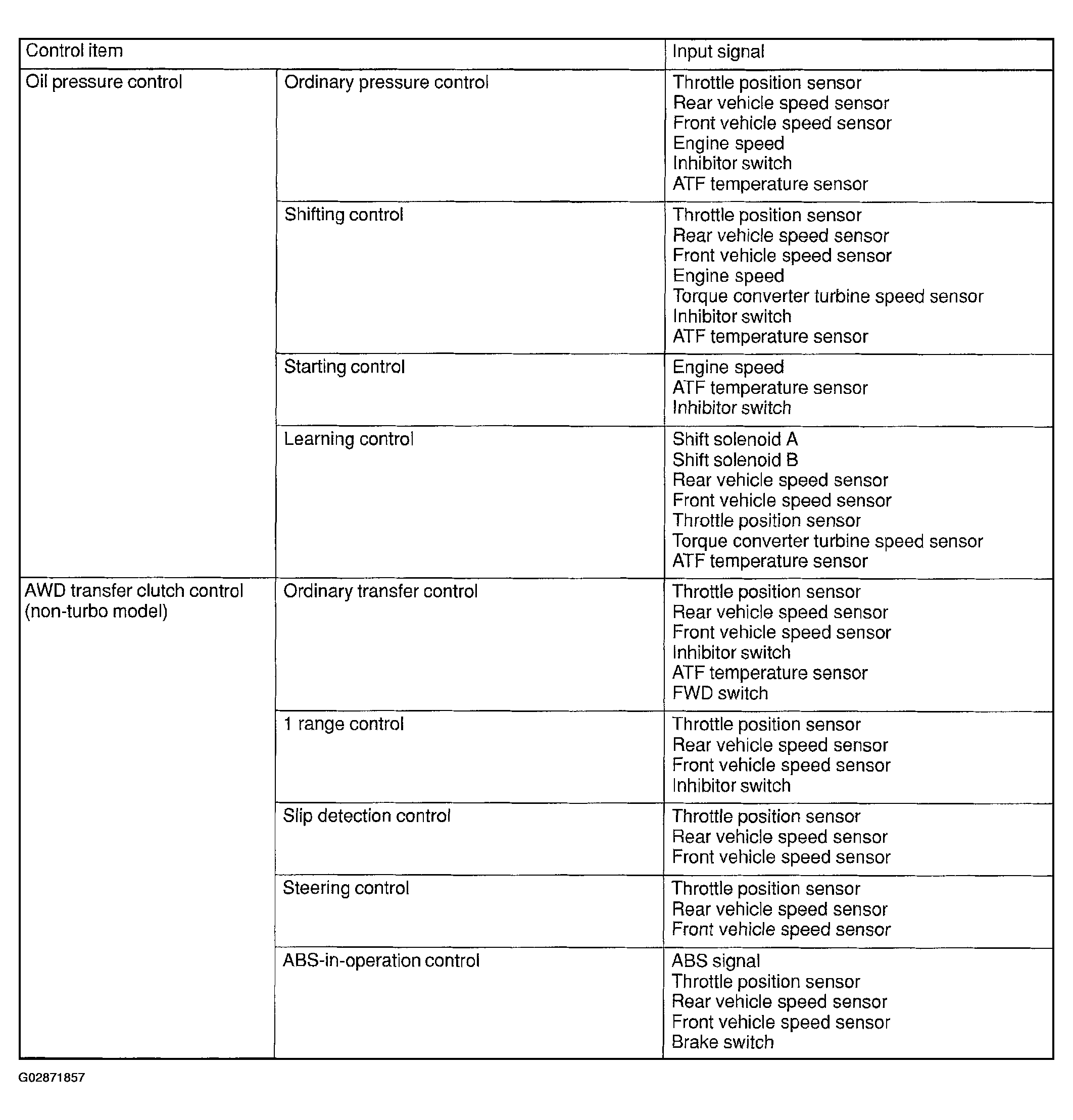

Fig 2: Control System Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

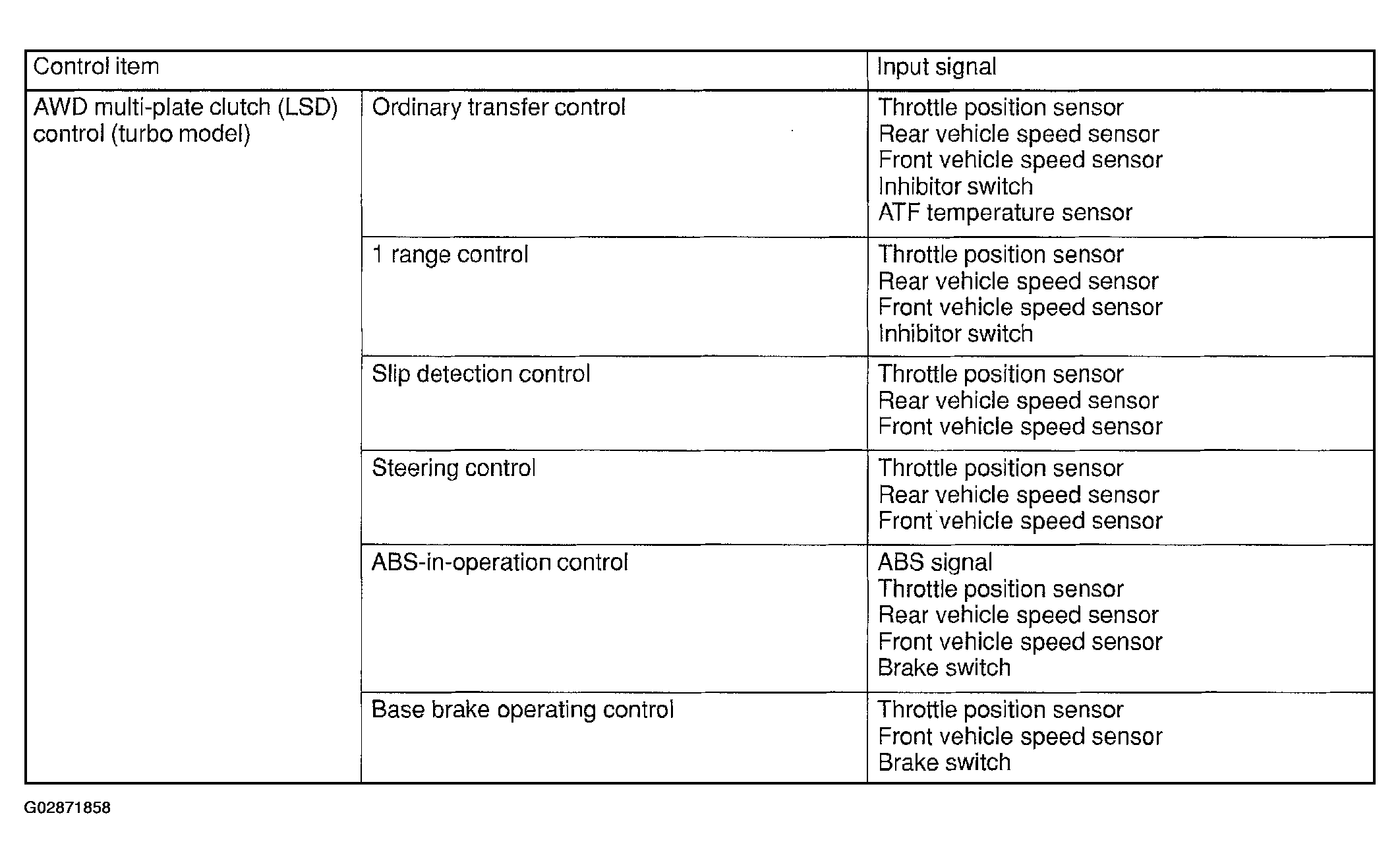

Fig 3: Control System Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
