Subaru
›
2002
›
Impreza RS, Automatic
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
A/T Control Systems
›
AT Shift Lock System
›
Inspection
›
Integrated Module Power Supply And Ground Line Wiring Diagram:
Integrated Module Power Supply And Ground Line Wiring Diagram:

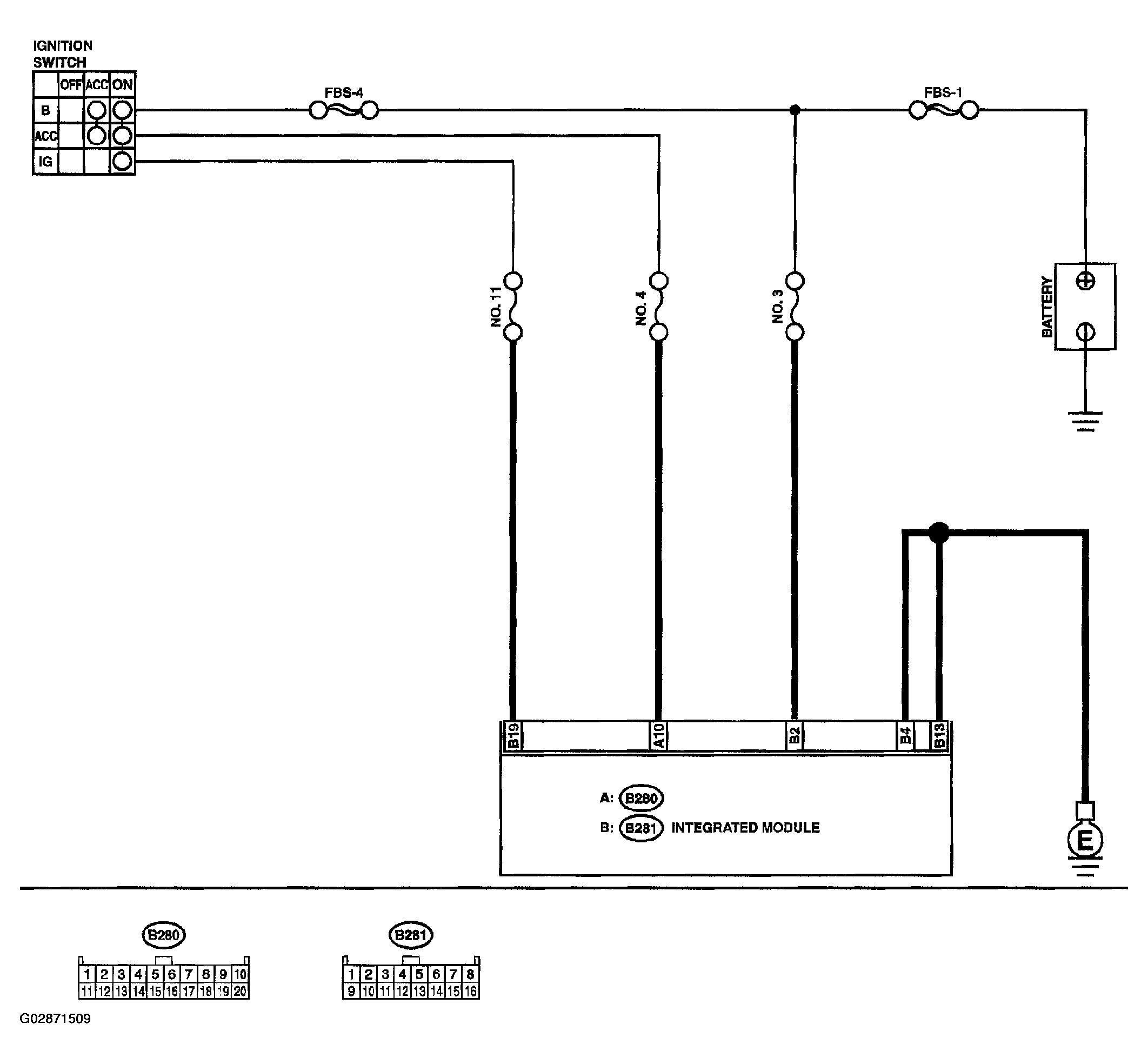

Fig 1: Integrated Module Power Supply And Ground Line Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

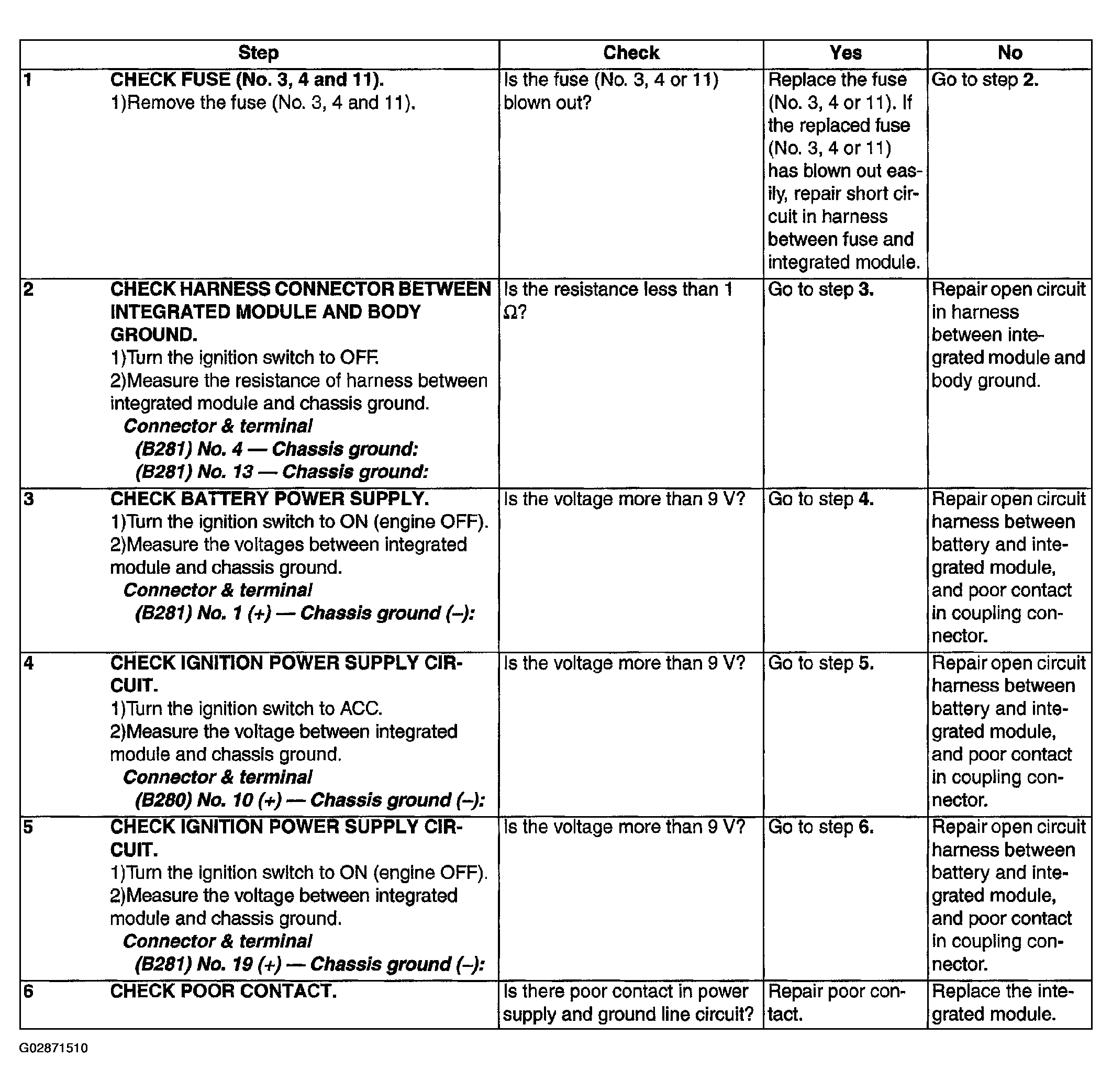

Fig 2: Inspection Table - Integrated Module Power Supply And Ground Line Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
