Subaru
›
2002
›
Impreza RS, Automatic
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
A/T Control Systems
›
AT Shift Lock System
›
Inspection
›
Key Interlock Does Not Lock Or Release Wiring Diagram:
Key Interlock Does Not Lock Or Release Wiring Diagram:

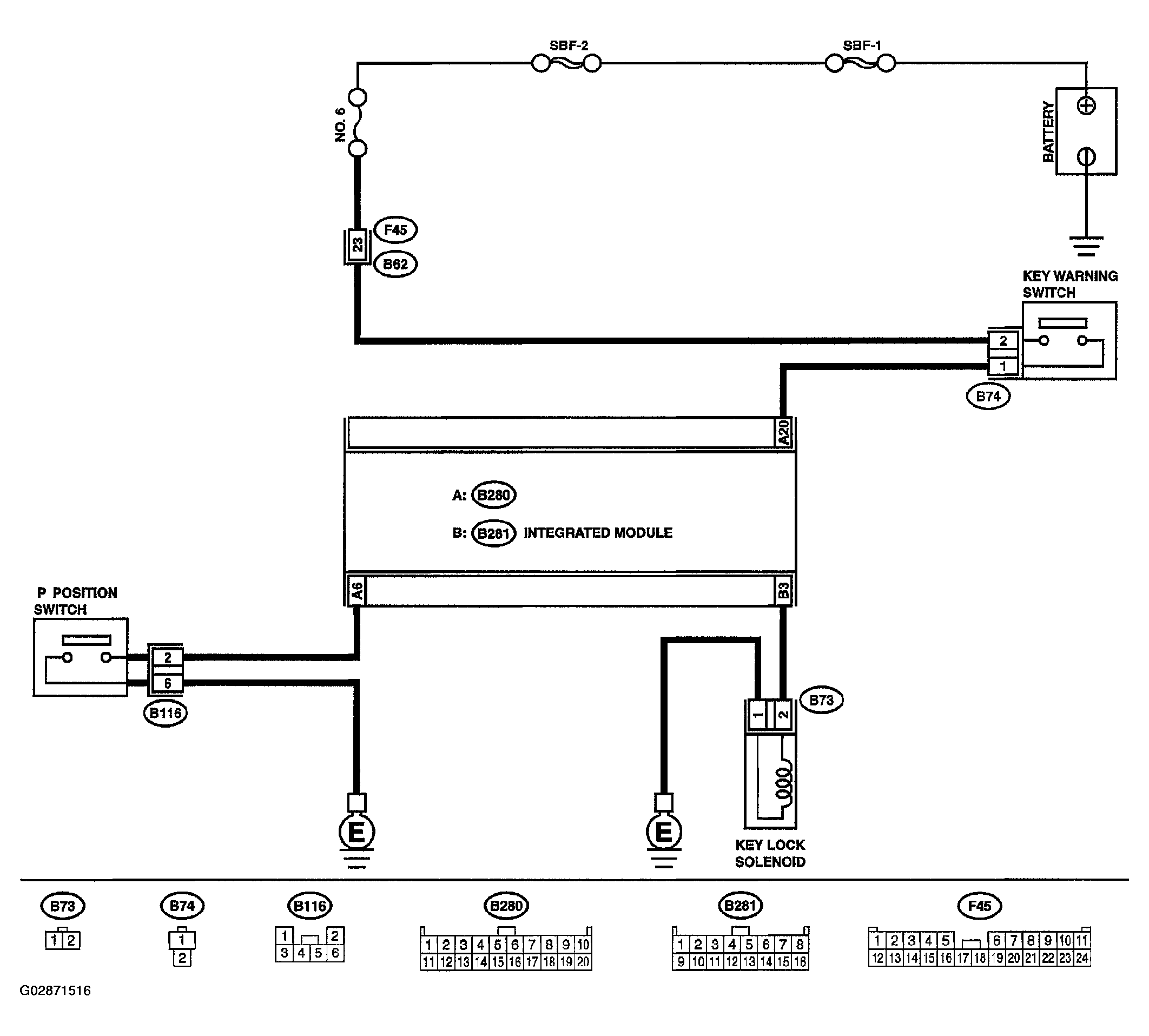

Fig 1: Key Interlock Does Not Lock Or Release Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

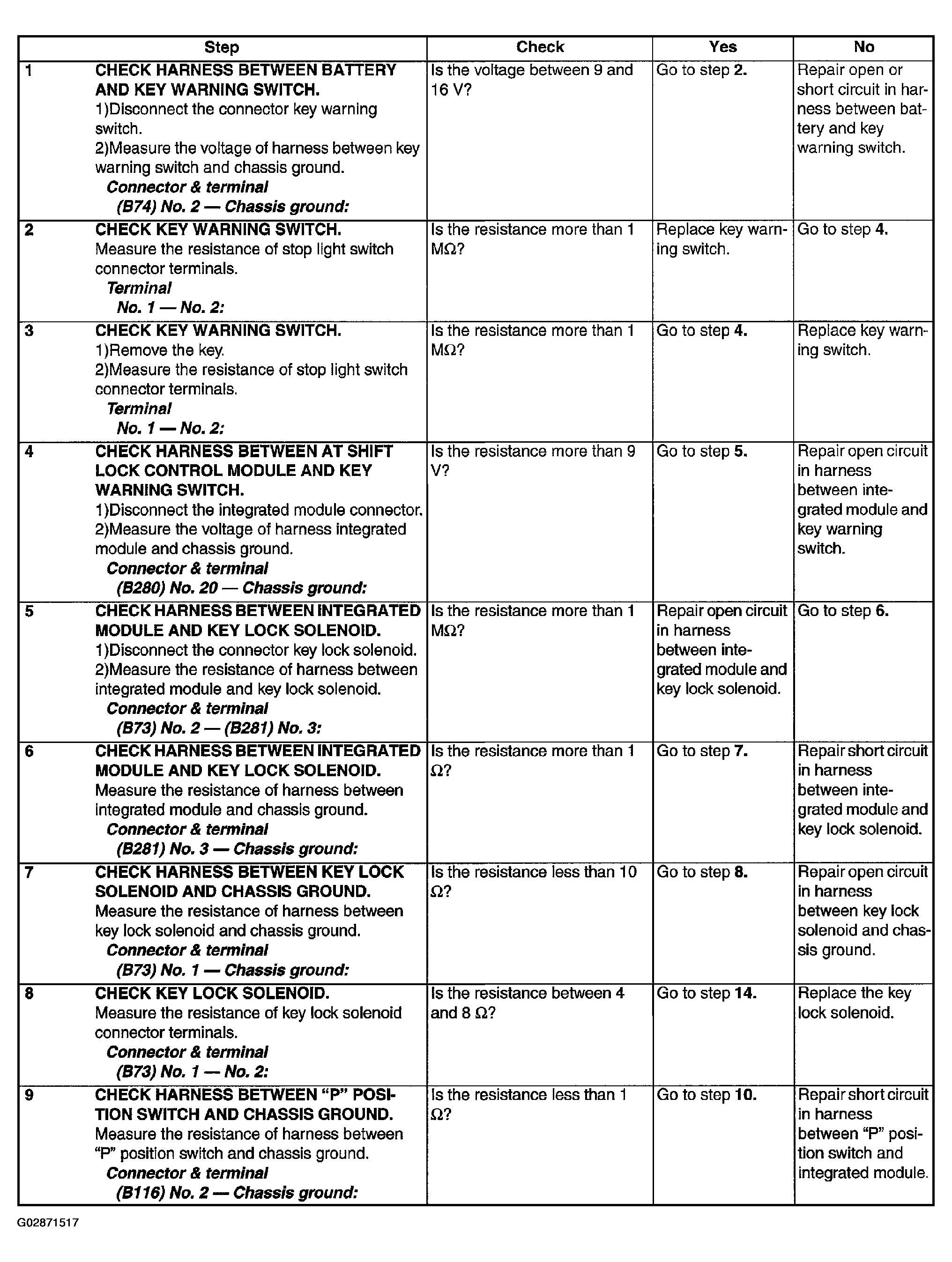

Fig 2: Inspection Table - Key Interlock Does Not Lock Or Release (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

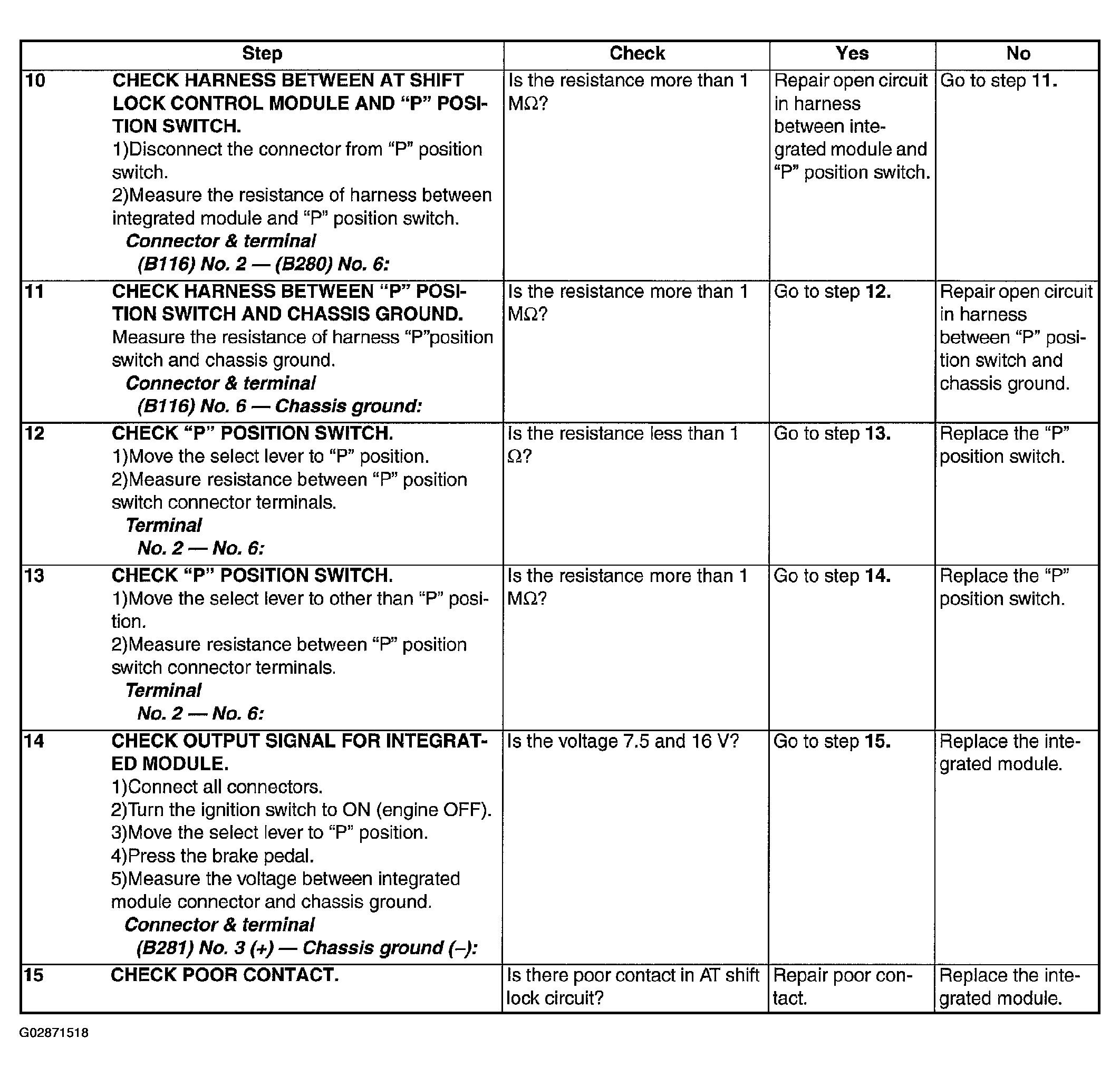

Fig 3: Inspection Table - Key Interlock Does Not Lock Or Release (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
