Integrated Module

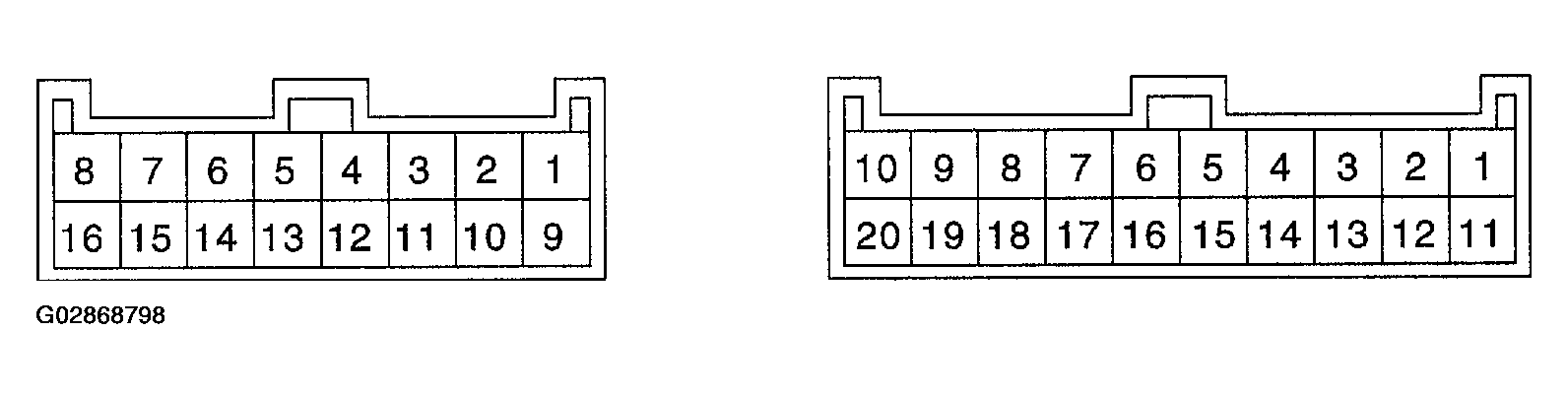

INTEGRATED MODULE CHART
| Content | Terminal No. | Measuring condition |
|---|---|---|
| Door switch (Except driver's door) | A7 (INPUT) | 0 V is present when any door is open (Except driver's door). |
| Door switch (Driver's door) | A8 (INPUT) | 0 V is present when driver's door is open. |
| Door unlock switch | A11 (INPUT) | 0 V is present when operating the door lock switch. |
| Door lock switch | A12 (INPUT) | 0 V is present when operating the door lock switch. |
| Keyless entry control module | A13 | - |
| Keyless entry control module | A14 | - |
| Ignition switch (ON) | A19 (INPUT) | Battery voltage is present when ignition switch is turned ON. |
| Key warning switch | A20 (INPUT) | Battery voltage is present when inserting the key into ignition switch. |
| Power supply | B1 | Battery voltage is constantly present. |
| Power supply | B2 | Battery voltage is constantly present. |
| Ground | B4 | 0 V is constantly present. |
| Room light | B5 (OUTPUT) | 0 V is present when pressing the transmitter UNLOCK/DISARM button one time. |
| Door and rear gate lock actuator | B6 (OUTPUT) | Battery voltage is present when pressing the transmitter LOCK/ARM button one time. |
| Door and rear gate lock actuator (Except driver side) | B7 (OUTPUT) | Battery voltage is present when pressing the transmitter UNLOCK/DISARM button two times. |
| Door lock actuator (Driver side) | B8 (OUTPUT) | Battery voltage is present when pressing the transmitter UNLOCK/DISARM button one time. |
| Ground | B13 | 0 V is constantly present. |
