Control Module I/O Signal: Schematic

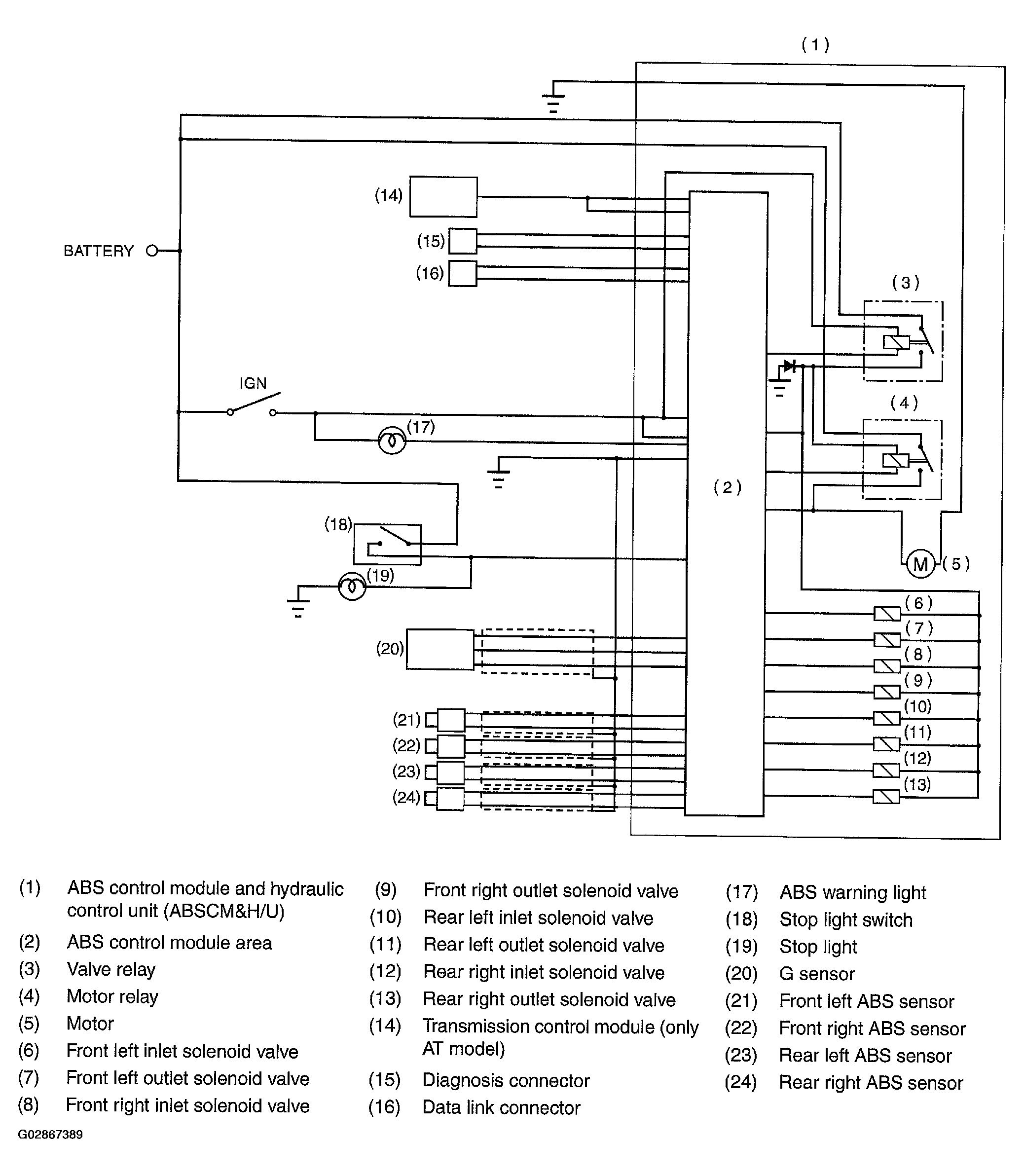

Fig 1: ABS I/O Signal Voltage Schematic
G02867389Courtesy of ISUZU MOTOR CO.
