Console Box: Removal

Disconnect the ground terminal from battery.
Remove the console cover.

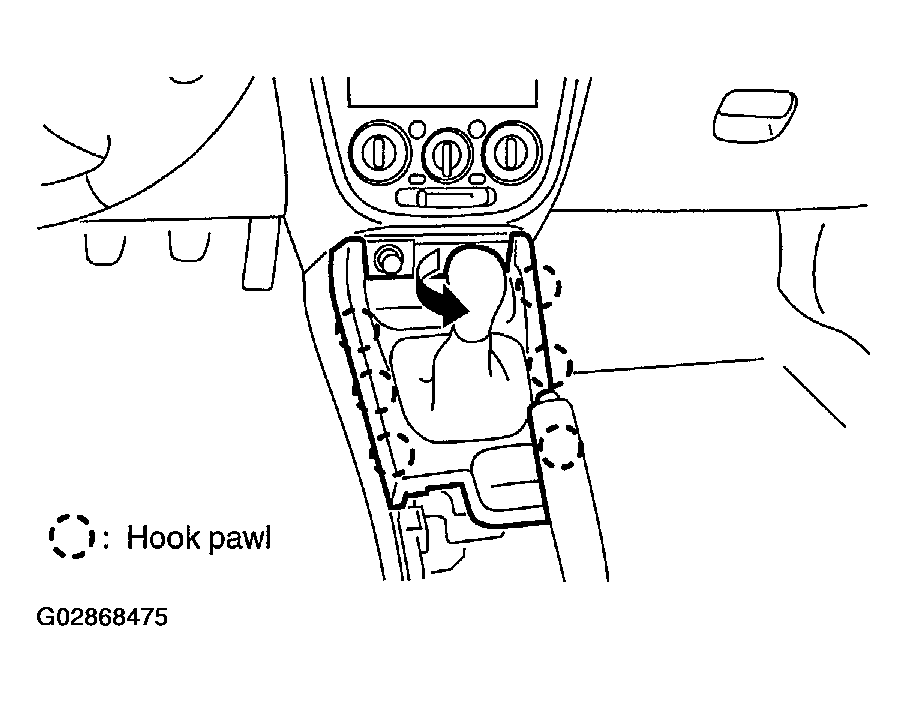

Fig 1: Removing Console Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift knob (MT model) and front cover.

Fig 2: Removing Shift Knob And Front Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screws to remove the console box.

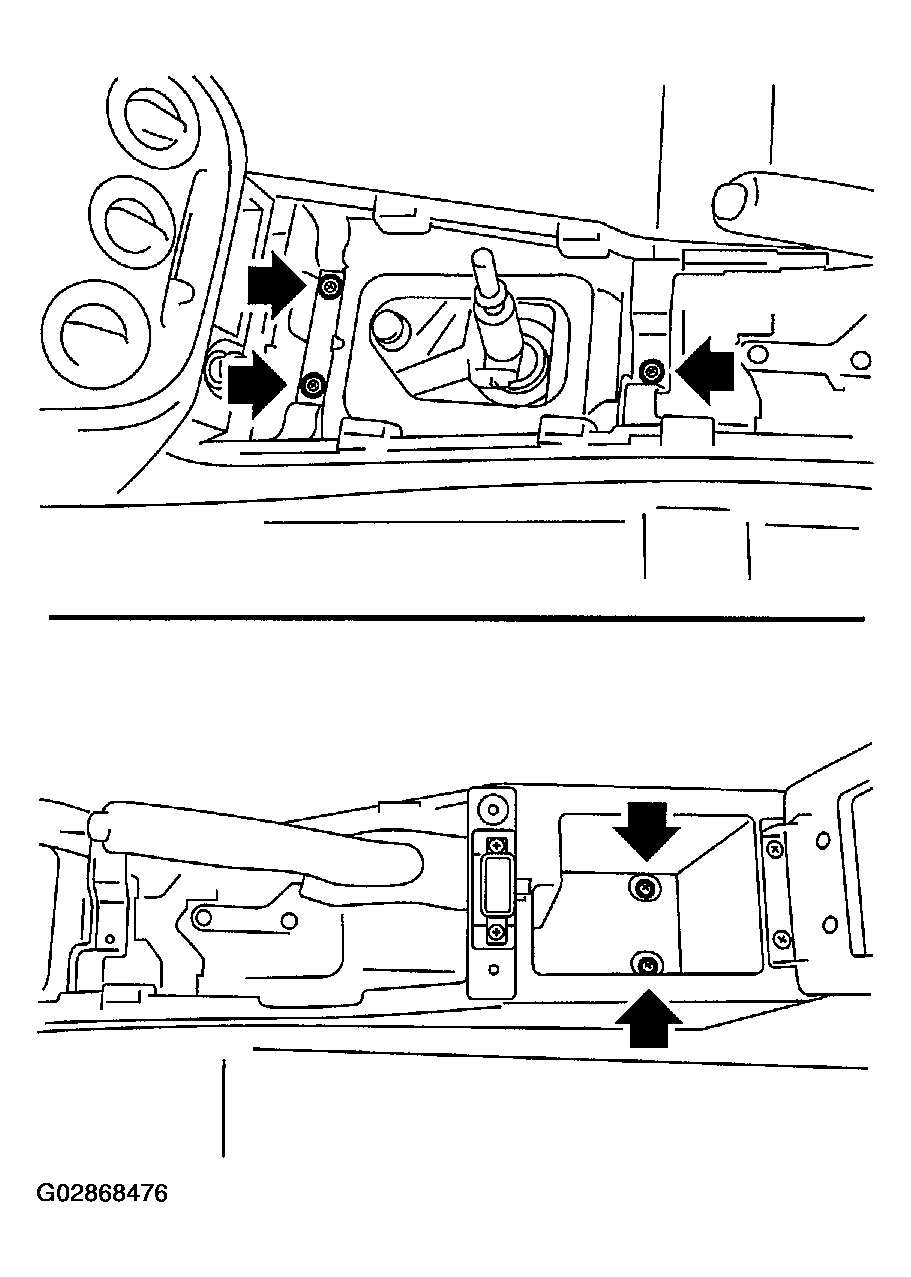

Fig 3: Loosening Screws
Courtesy of SUBARU OF AMERICA, INC.
