Non-Turbo Model

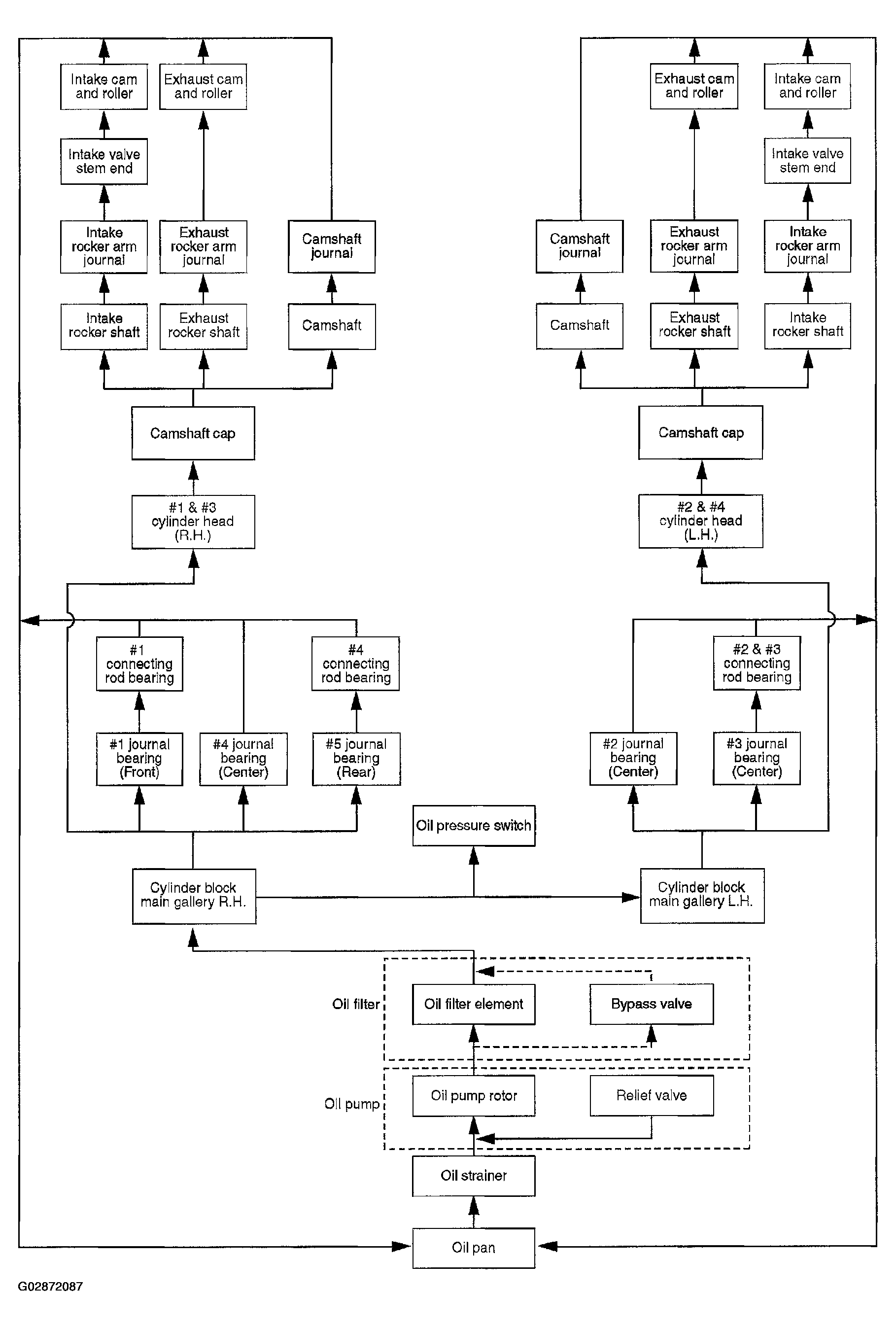

Fig 1: Identifying Engine Oil Flow Chart (Non-Turbo)
G02872087Courtesy of SUBARU OF AMERICA, INC.
