Throttle Position Sensor: Removal

Disconnect the battery ground cable.

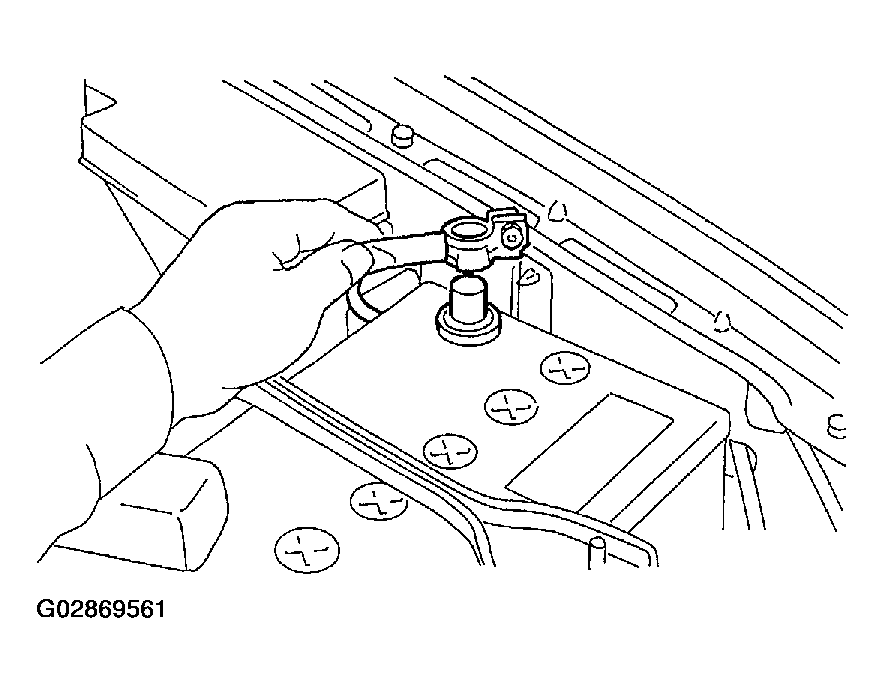

Fig 1: Disconnecting The Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the throttle position sensor.

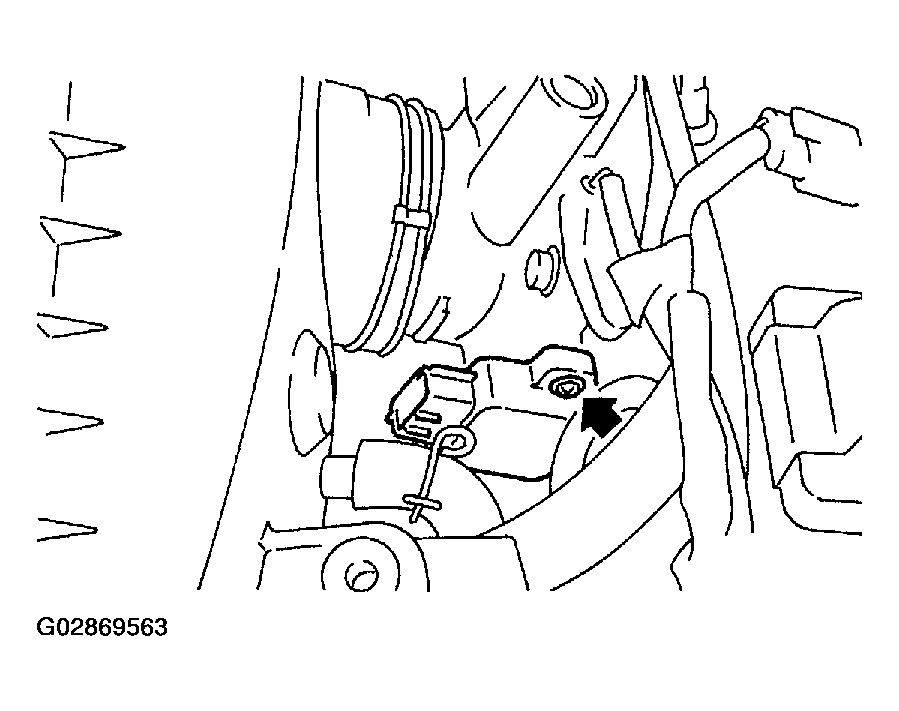

Fig 2: Disconnecting The Connector From The Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the throttle position sensor holding screws, and remove it.

Fig 3: Removing The Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
