Turbo Model

  1. Reassembly precautions
    1. Whenever the O-rings, oil seals, and snap rings are removed, they must be replaced with new ones.
    2. Thoroughly wash the parts and allow to dry. They must be kept free from cleaning oil and dust.
    3. Reassembly procedure must be performed in clean place. Ensure that the parts are kept away from the waste threads or other dust particles.
    4. Cleaning oil tends to stay inside the front casing. Remove it completely by blowing compressed air.
    5. Ensure that the parts are free from rust. (Use specified hydraulic oil for rust prevention after cleaning and drying.)
    6. Reverse the sequence of disassembly procedures.
  2. Apply grease to the oil seal and inner surface of front casing (at bearing location).
    CAUTION: Make sure that the front body internal surfaces are free from damage.
  3. Attach ST to front body. Using a press, install the oil seal.

    ST 34199AE030 INSTALLER

    Fig 1: Installing Oil Seal
    G02868101Courtesy of SUBARU OF AMERICA, INC.
  4. Install the pump pulley to front body.
  5. Using ST, place the oil pump in a vise.

    ST 34199AE020 MOUNT

  6. Remove the rear cover.
  7. Install the following parts to casing.

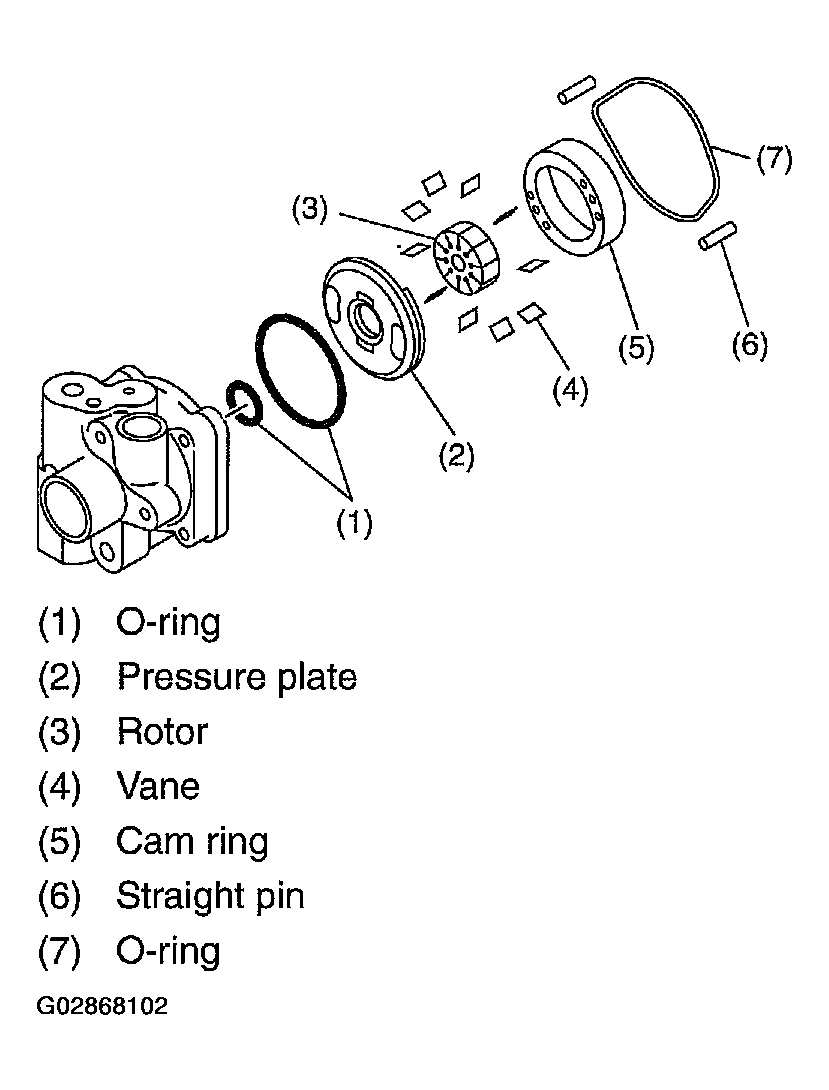

    Fig 2: Identifying Parts To Casing
    G02868102Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Install the rotor with the mark facing the rear case side.
    Fig 3: Installing Rotor
    G02868103Courtesy of SUBARU OF AMERICA, INC.
  8. Using 8-mm box wrench, tap the retaining ring into the shaft groove.

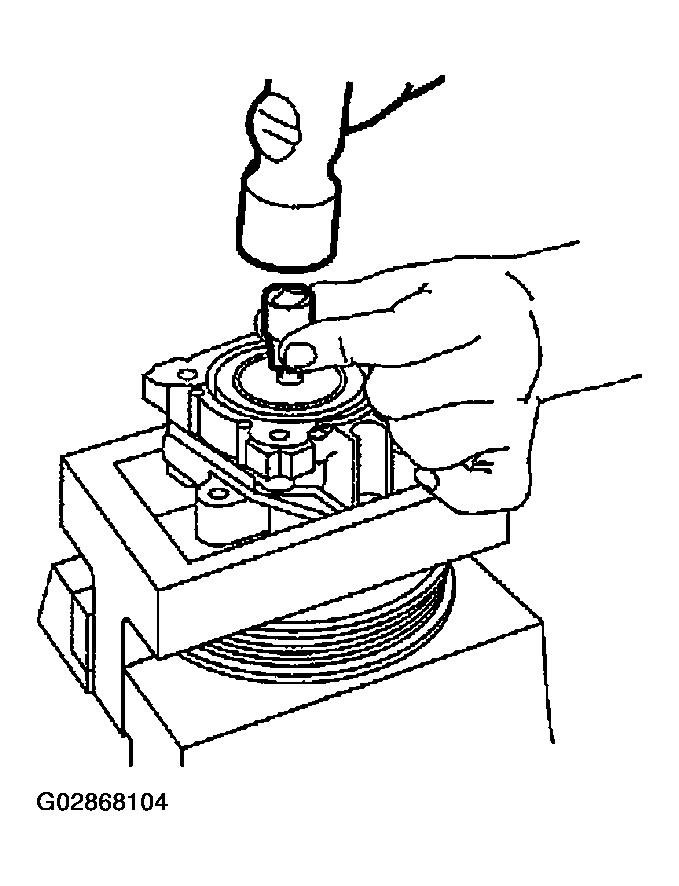

    Fig 4: Taping Retaining Ring Into Shaft Groove
    G02868104Courtesy of SUBARU OF AMERICA, INC.
  9. Install the O-ring to the rear cover.
  10. Install the rear cover.

    Tightening torque: 27.5 N.m (2.8 kgf-m, 20.3 ft-lb)

    CAUTION: Loosely tighten the bolts in the sequence (A), (B), (C), and (D) shown in figure. Then, tighten in the same sequence.

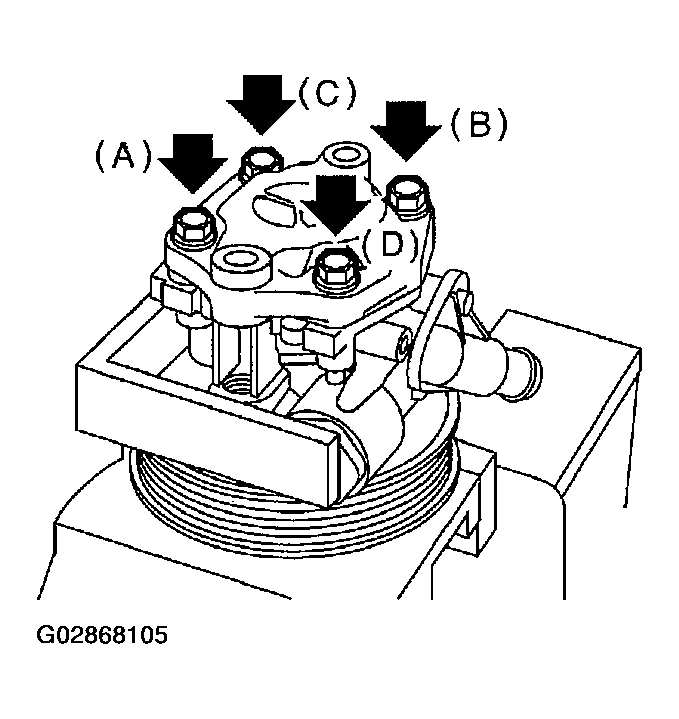

    Fig 5: Tightening Bolts In Sequence
    G02868105Courtesy of SUBARU OF AMERICA, INC.
  11. When the reassembly procedures have been completed, turn the shaft by hand to ensure it turns smoothly. If it binds or other unusual conditions are evident, disassemble again and check for foreign matter trapped on sliding surfaces and improper installation. Eliminate the cause of trouble.
  12. Check followings by referring to "CHECK" article.
    • Excessive play in pulley shaft
    • Ditch deflection of pulley
    • Resistance to rotation of pulley
    • Measurement of generated oil pressure
