Main Relay: Removal

  1. Disconnect the battery ground cable.

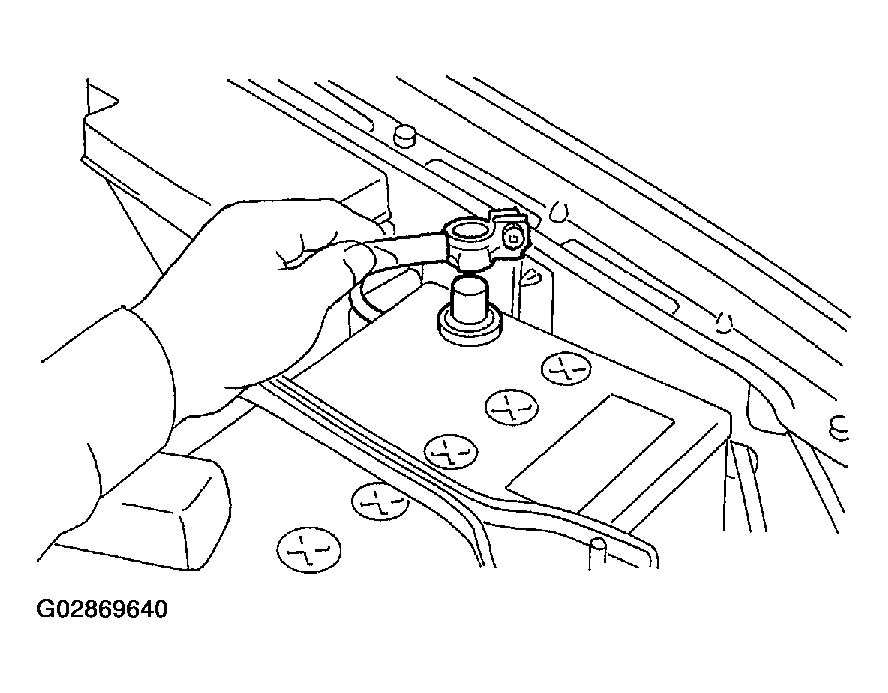

    Fig 1: Disconnecting The Battery Ground Cable
    G02869640Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the passenger's side front side sill cover.
  3. Remove the bolt which holds main bracket on the body.
  4. Disconnect the connectors from the main relay.
    Fig 2: Disconnecting The Connectors From The Main Relay
    G02869641Courtesy of SUBARU OF AMERICA, INC.
