Keyless Entry System
›
Inspection
›
Check Key Warning Switch
Check Key Warning Switch

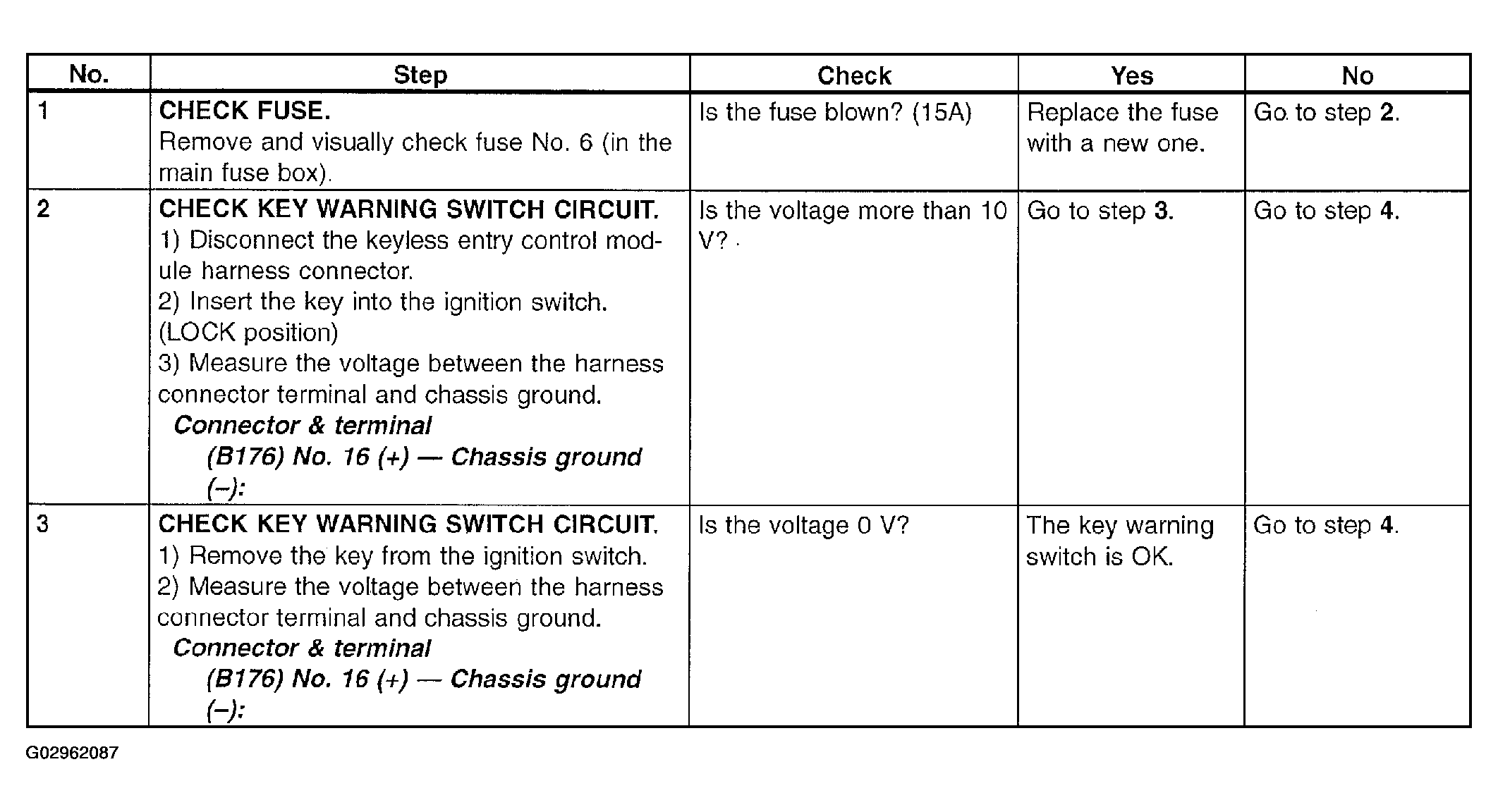

Fig 1: Checking Key Warning Switch Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

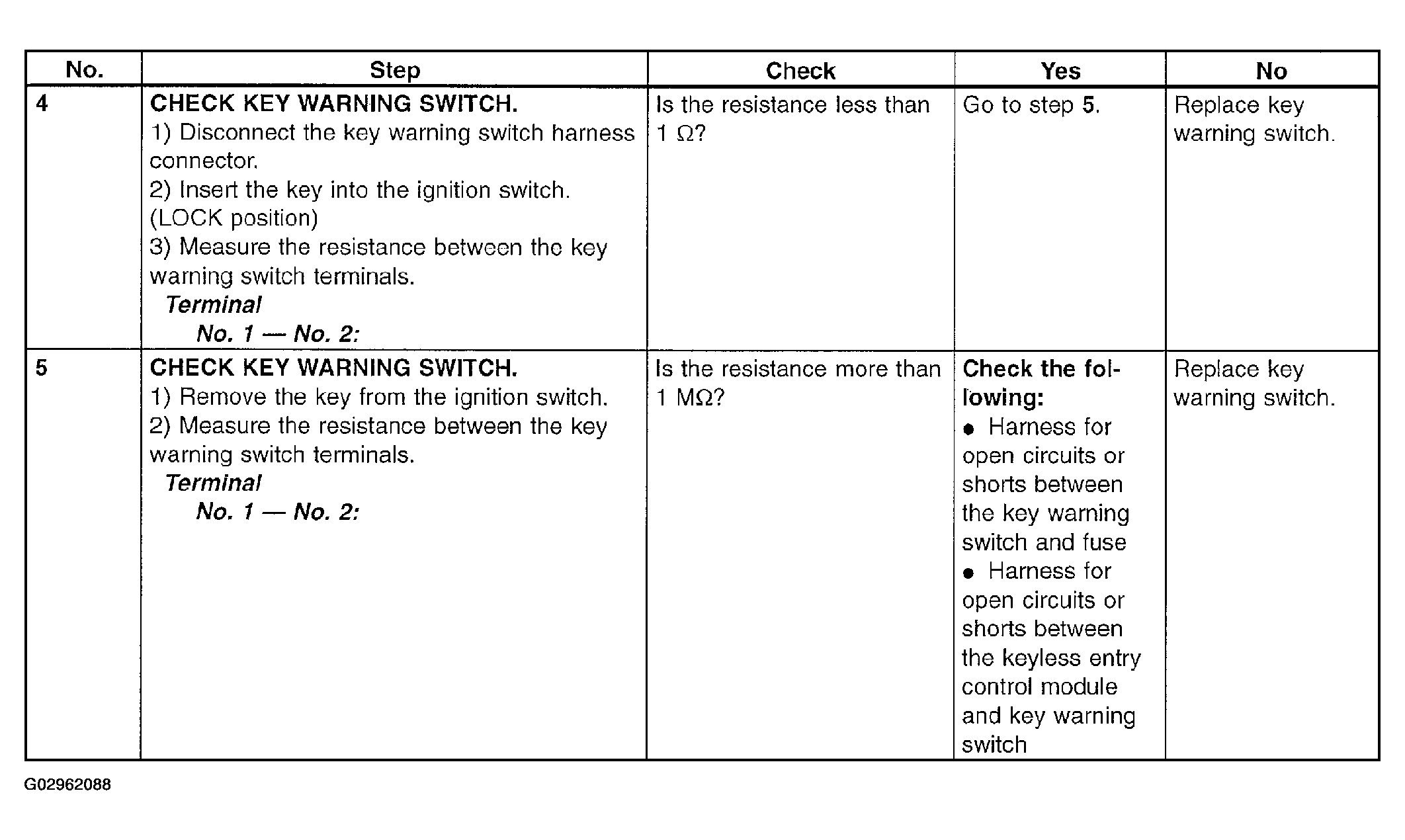

Fig 2: Checking Key Warning Switch Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
