Check Security Indicator Light Circuit
Check Security Indicator Light Circuit

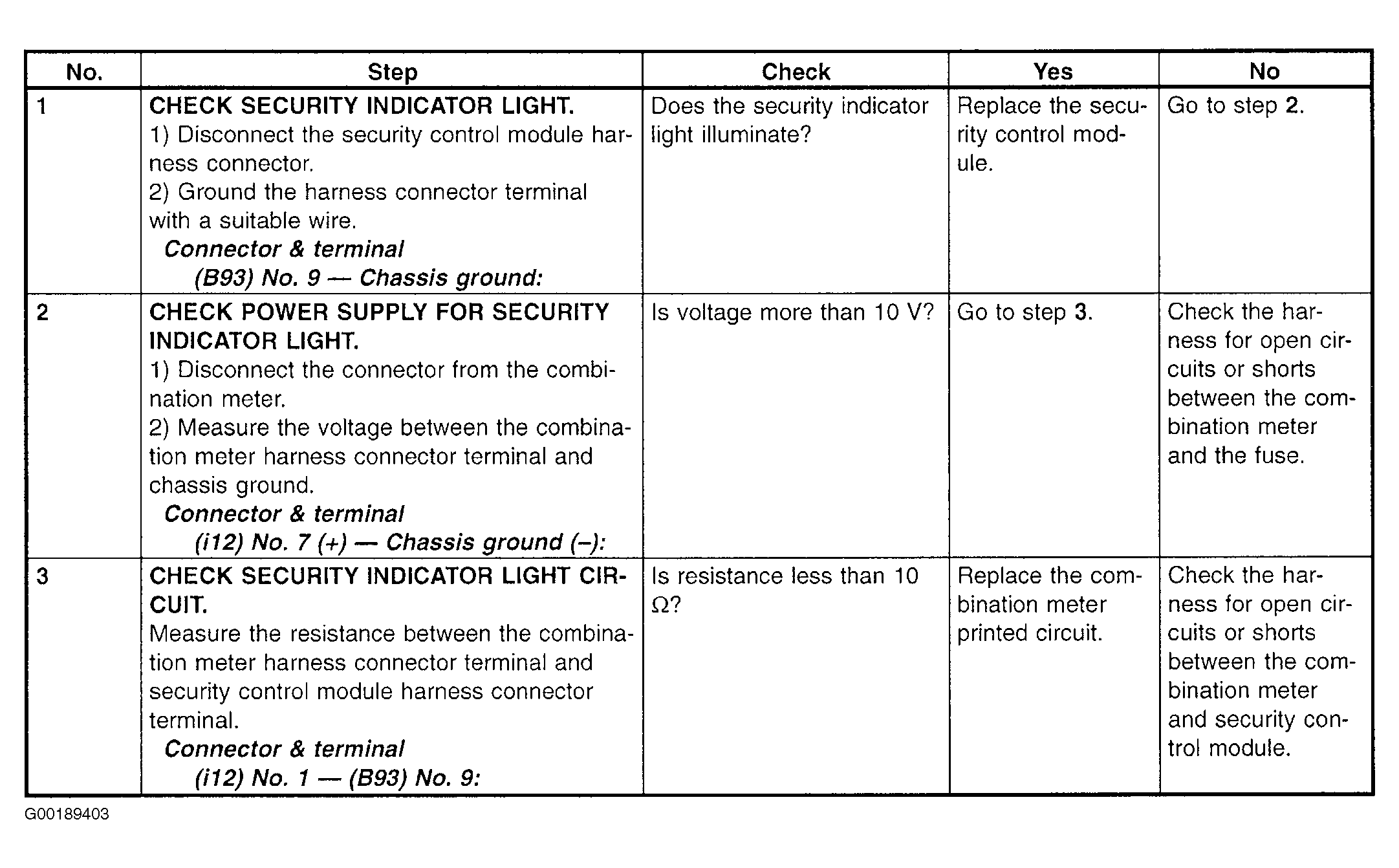

Fig 1: Check Security Indicator Light Circuit (Testing Procedure)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
