Remote Control Mirror System: Inspection

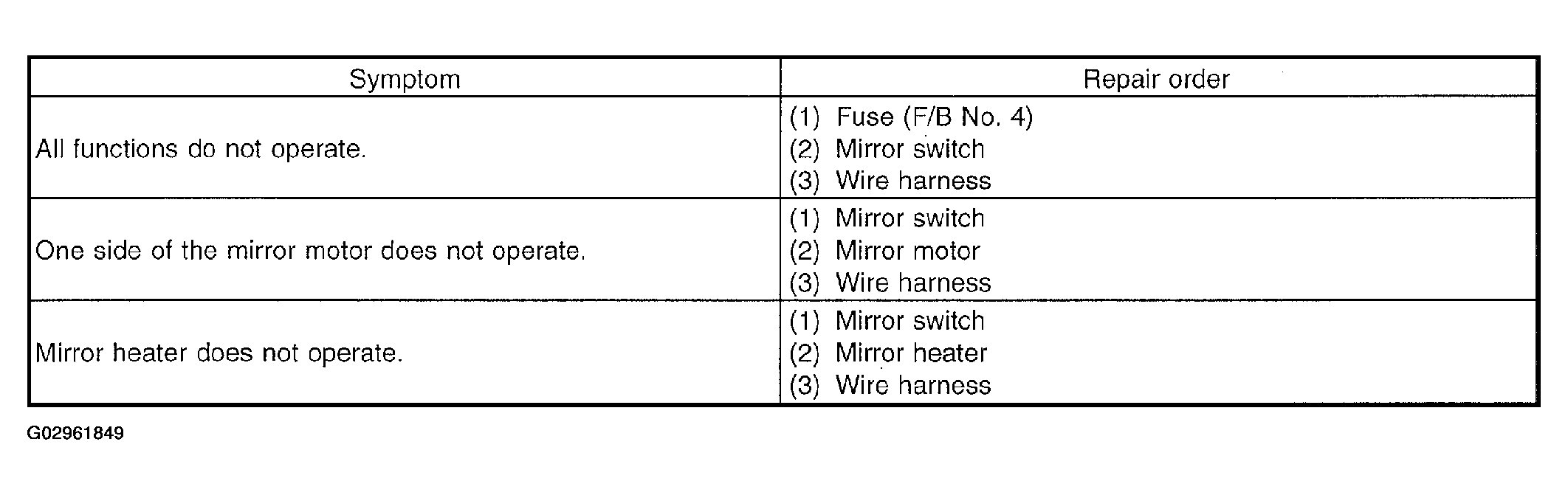

Fig 1: Remote Control Mirror System Inspection Table
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
