Differentials & Drive Axles: Differentials: General Description: Specifications: Notes

When replacing rear differential assembly, select the correct one according to the following table.

NOTE: Using a different rear differential assembly causes the drive line and tires to "drag" or emit abnormal noise when AWD is selected.

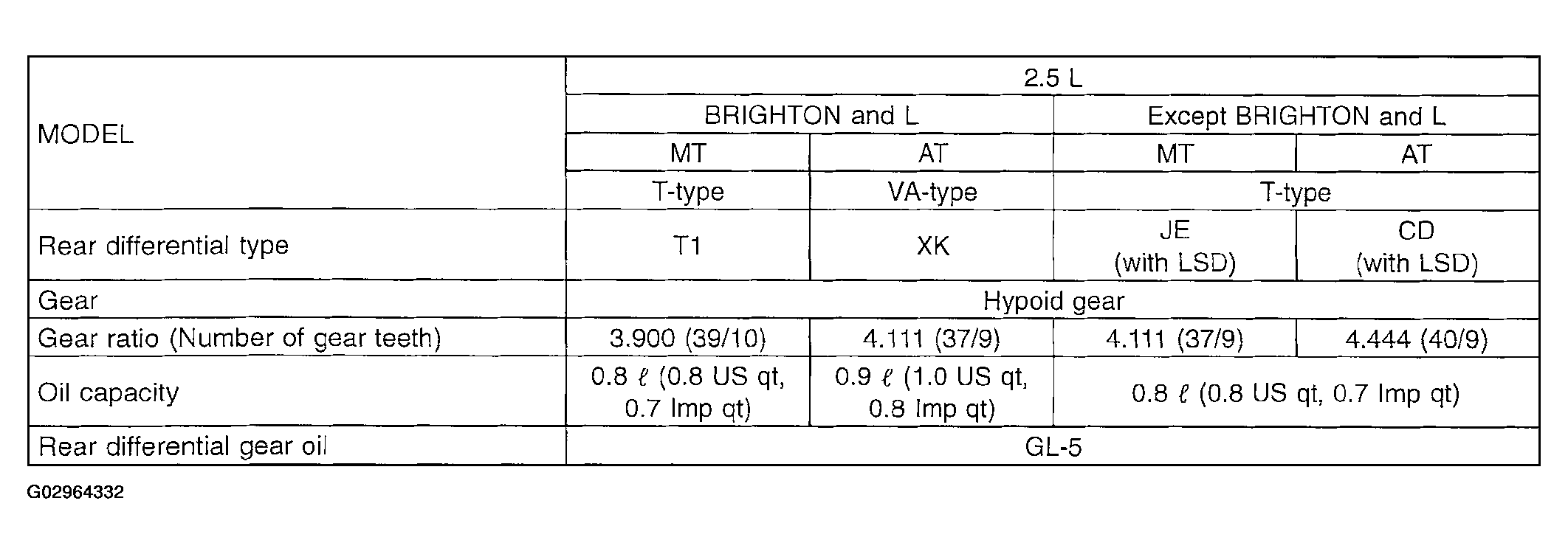

Fig 1: Rear Differential Assembly Specifications Table - 2.5L

Courtesy of SUBARU OF AMERICA, INC.

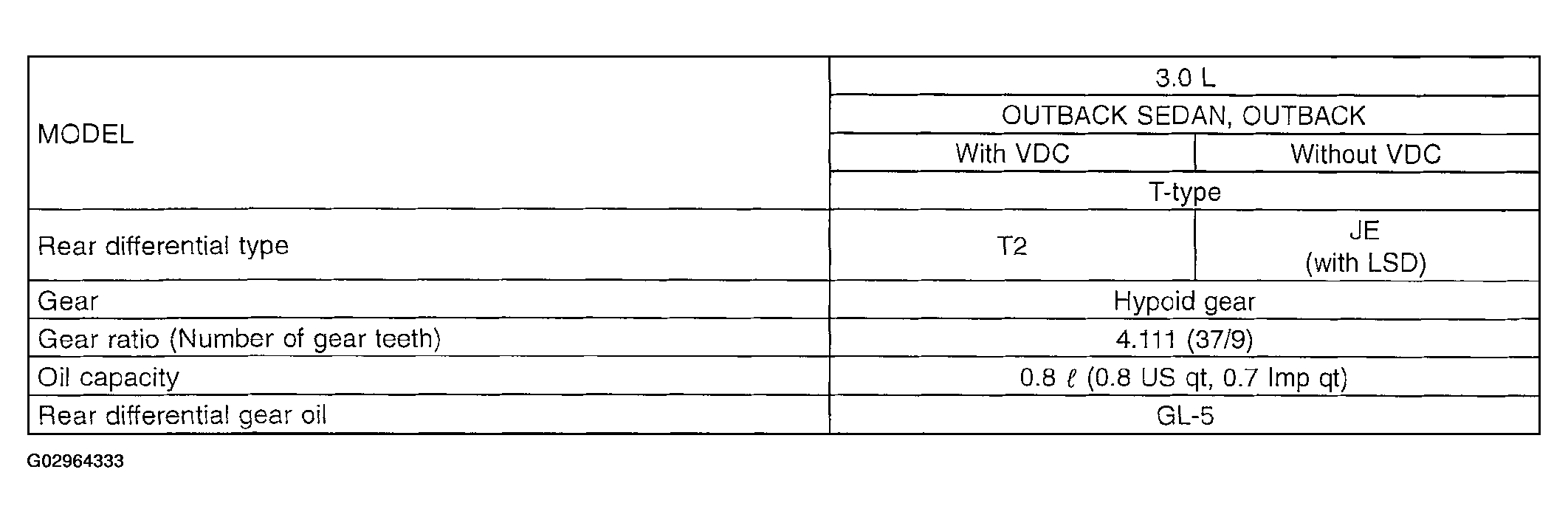

Fig 2: Rear Differential Assembly Specifications Table - 3.0L

Courtesy of SUBARU OF AMERICA, INC.

Identification

Fig 3: Identifying Rear Differential Assembly Identification
Courtesy of SUBARU OF AMERICA, INC.
Rear differential gear oil

Recommended oil

NOTE: Each oil manufacturer has its base oil and additives. Thus, do not mix two or more brands.

Fig 4: Identifying Rear Differential Gear Recommended Oil Chart

Courtesy of SUBARU OF AMERICA, INC.
