Removal & Installation: Starter: Removal

1. Disconnect ground cable from battery.
2. Remove air cleaner case for non-turbo model. See AIR CLEANER CASE  .
3. Remove intercooler for turbo model. See INTERCOOLER  .
4. Remove air cleaner case stay. See Fig 1 .
5. Disconnect connector and terminal from starter. See Fig 2 .
6. Remove starter from transmission.

Fig 1: Removing Air Cleaner Case Stay

Courtesy of SUBARU OF AMERICA, INC.

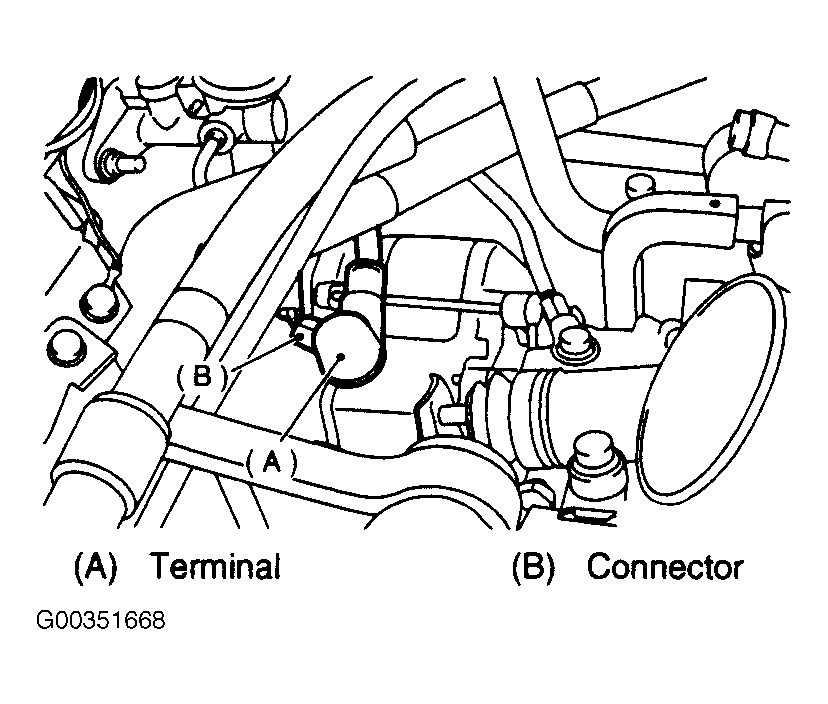

Fig 2: Disconnecting Starter Connector & Terminal

Courtesy of SUBARU OF AMERICA, INC.
