Induction Valve Control Solenoid: Removal

  1. Disconnect battery ground cable.
  2. Remove intake manifold.

    < Ref. to , REMOVAL  , Intake Manifold. >

  3. Disconnect connector from induction valve control solenoid.
  4. Remove induction valve control solenoid from intake manifold.

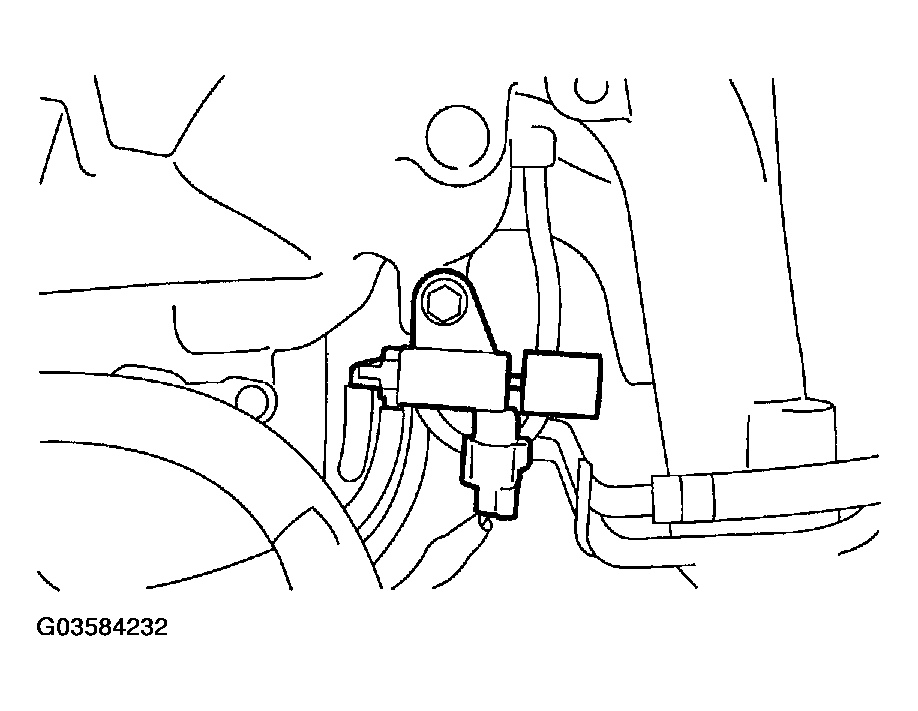

    Fig 1: Disconnecting Connector From Induction Valve Control Solenoid
    G03584232Courtesy of SUBARU OF AMERICA, INC.
