Intake Air Temperature Sensor: Removal

  1. Disconnect battery ground cable.

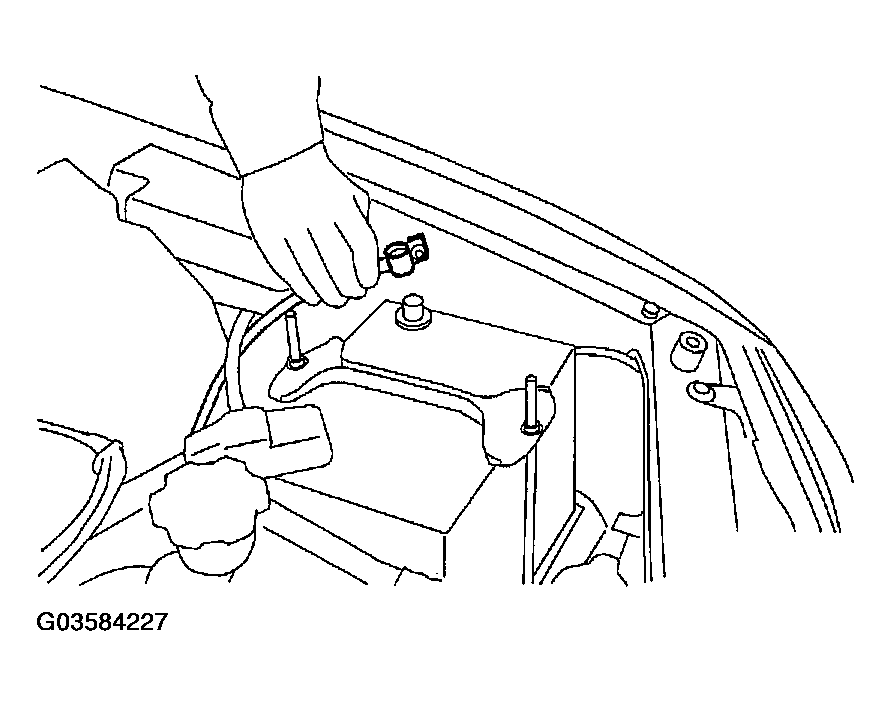

    Fig 1: Disconnecting Battery Ground Cable
    G03584227Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from intake air temperature sensor.
  3. Remove intake air temperature sensor from air intake chamber.

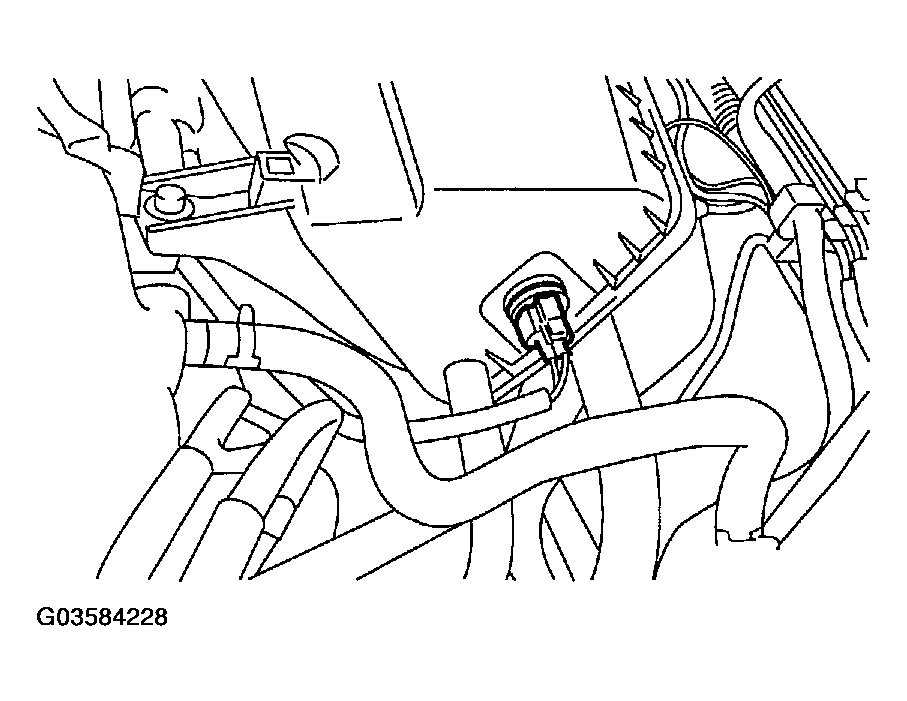

    Fig 2: Disconnecting Connector From Intake Air Temperature Sensor
    G03584228Courtesy of SUBARU OF AMERICA, INC.
