Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel lower cover. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove the screws which secure upper column cover to lower column cover.
    Fig 1: Removing The Screws Which Secure Upper Column Cover To Lower Column Cover
    G02868678Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector from combination switch.
  4. Remove the screws which secure switch and remove the switch.

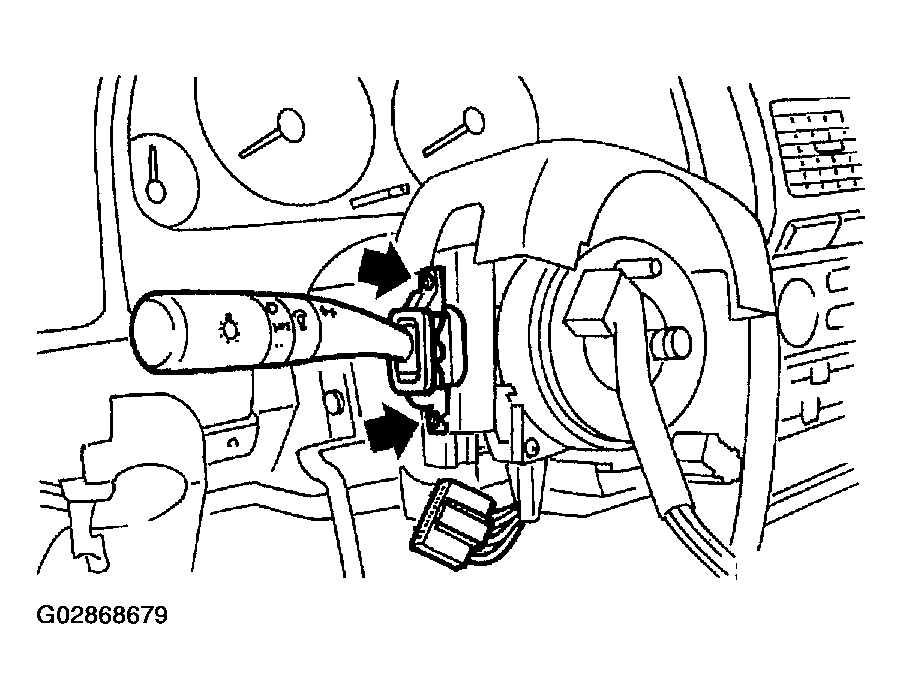

    Fig 2: Removing The Screws Which Secure The Combination Switch
    G02868679Courtesy of SUBARU OF AMERICA, INC.
