Headlight Assembly: Removal

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery.
Remove the duct (A) (when right side headlight is removed).

Fig 1: Removing Duct
Courtesy of SUBARU OF AMERICA, INC.
Remove the front grille and headlight side cover. Refer to FRONT GRILLE and REAR BUMPER .
Disconnect the headlight bulb connector.

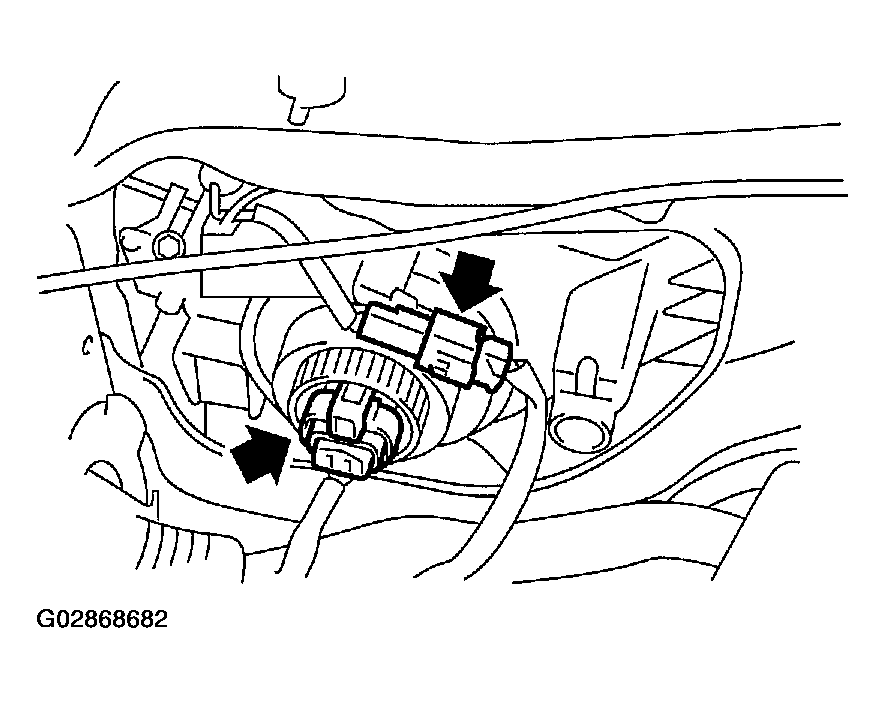

Fig 2: Disconnecting Headlight Bulb Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove three bolts and disconnect the connectors, and then detach the headlight assembly.

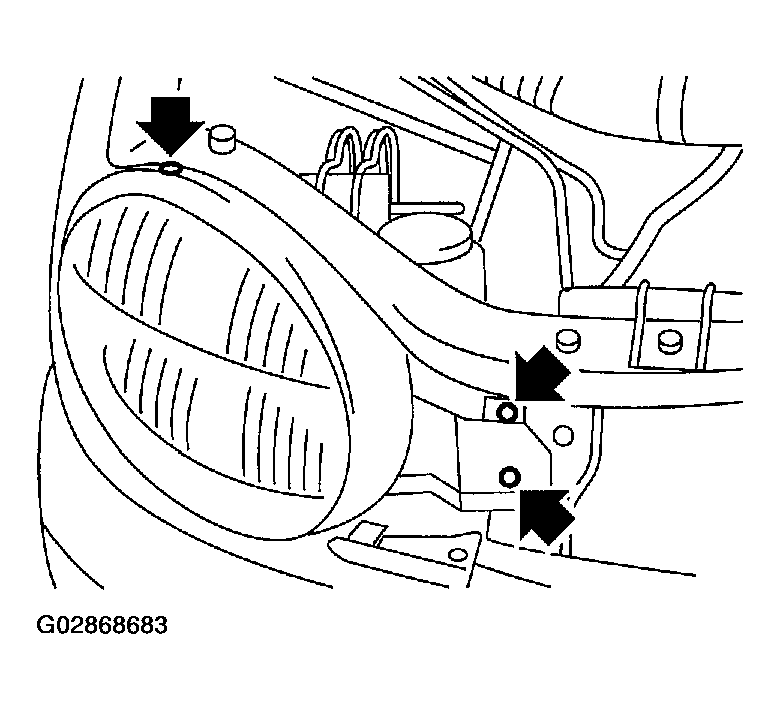

Fig 3: Removing Three Bolts
Courtesy of SUBARU OF AMERICA, INC.
