Section 108 (HVAC System): Condenser: Removal

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Using the refrigerant recovery system, discharge refrigerant. Refer to Refrigerant Recovery Procedure .
Disconnect the ground terminal from battery.
Disconnect the pressure hose and pipe from condenser.

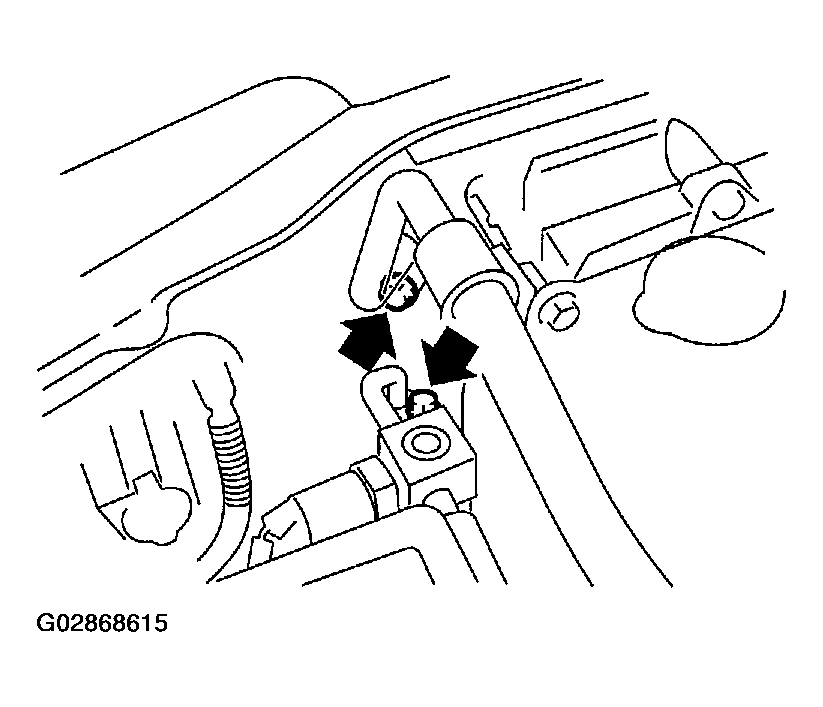

Fig 1: Disconnecting Pressure Hose And Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator bracket (A).

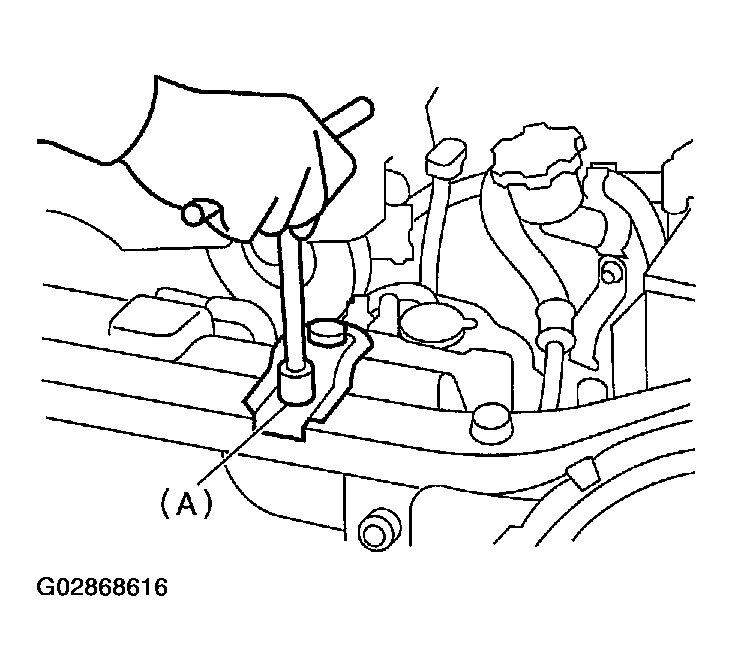

Fig 2: Removing Radiator Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove two bolts. While lifting condenser, pull it out through space between the radiator and the radiator panel.

Fig 3: Removing Two Bolts
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Be careful not to damage the condenser fins. If a damaged fin is found, repair it using a thin screwdriver. If the condenser is replaced, add appropriate amount of compressor oil to the compressor. See REPLACEMENT .
