Section 108 (HVAC System): General Description: Component: Compressor

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

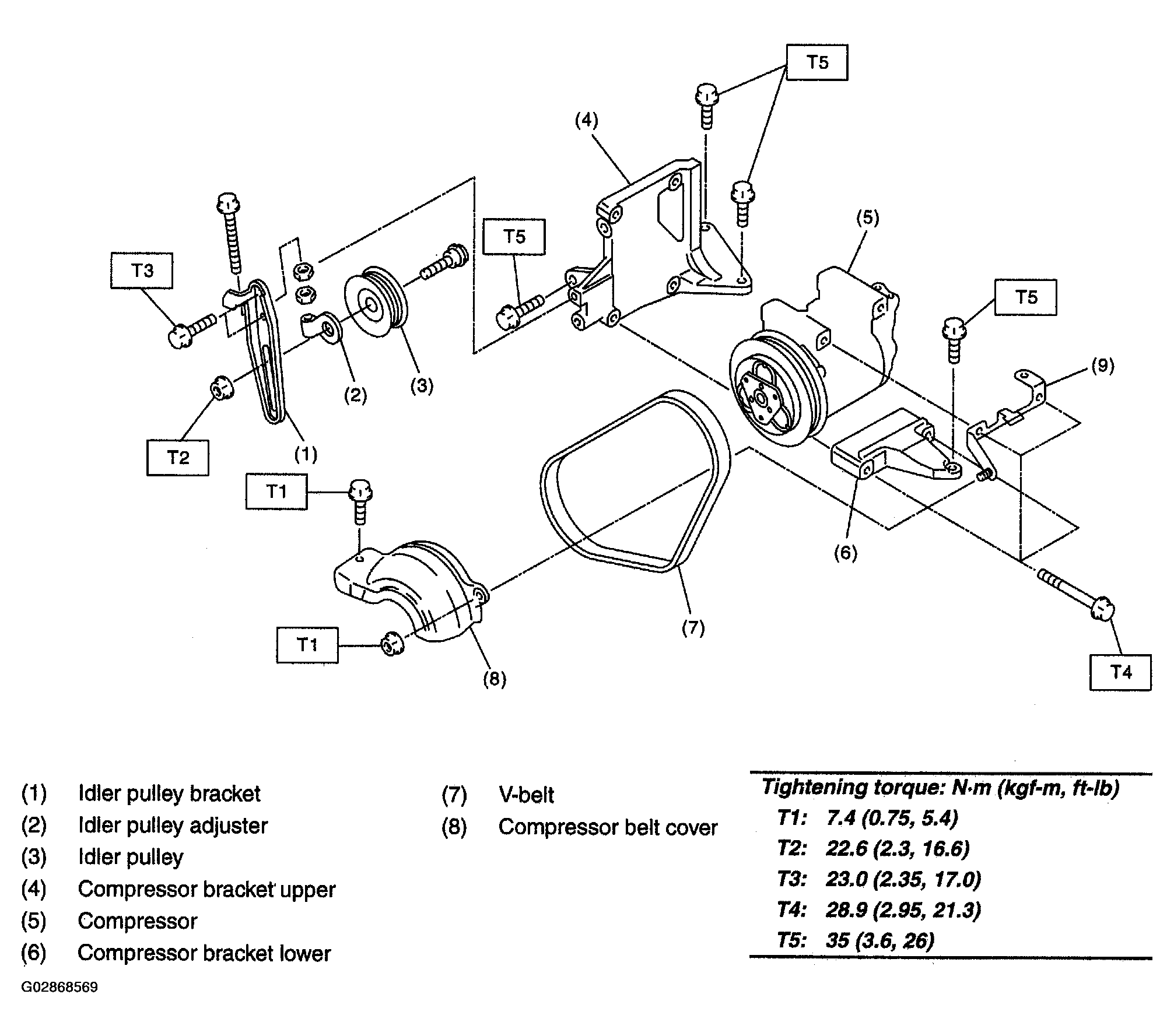

Fig 1: Identifying Compressor Components

Courtesy of SUBARU OF AMERICA, INC.
