Oil Pressure Switch: Installation

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Apply fluid packing to oil pressure switch threads.
Fluid packing: THREE BOND 1215 or equivalent

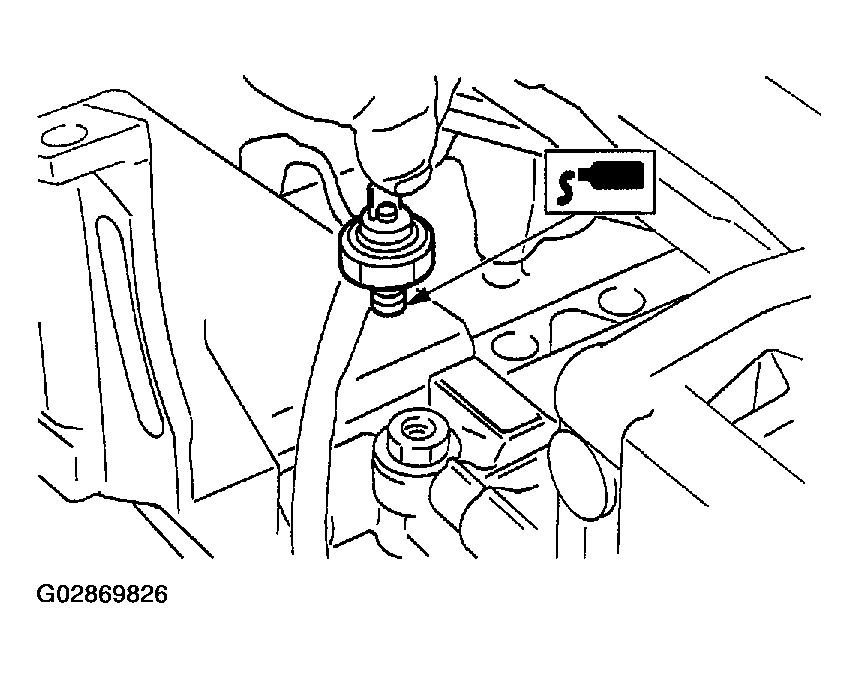

Fig 1: Applying Fluid Packing
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch onto engine block.
Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

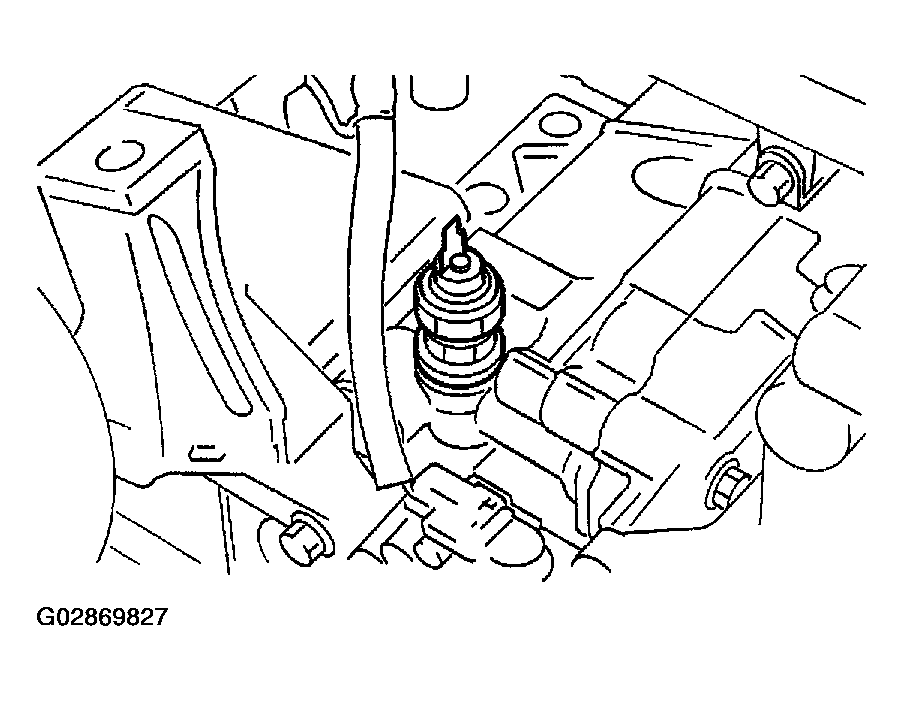

Fig 2: Installing The Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal of oil pressure switch.

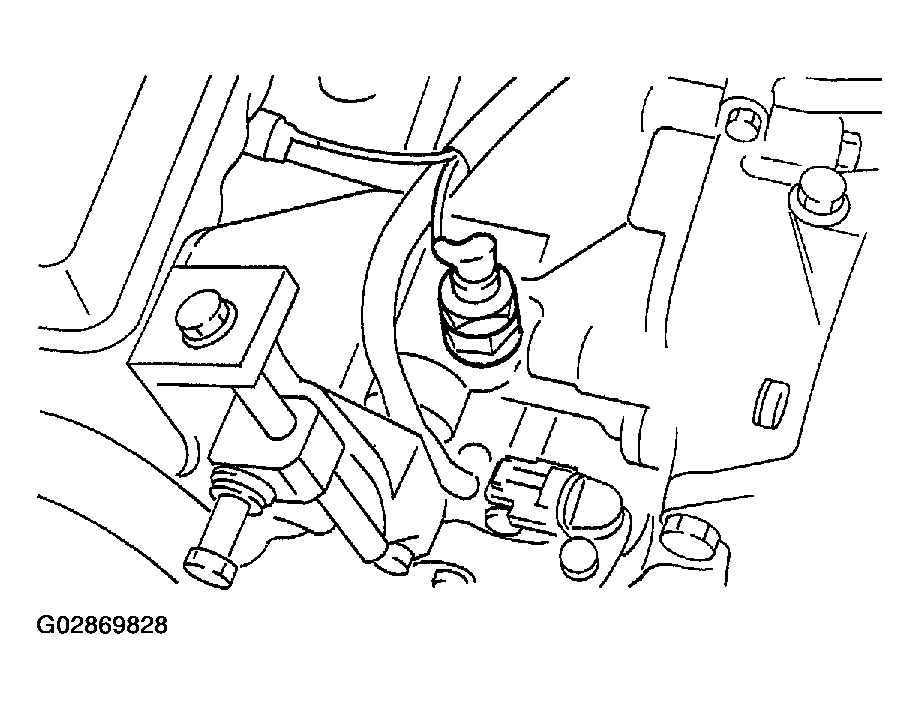

Fig 3: Connecting Terminal Of Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Install the generator on bracket and temporarily tighten installing bolts.

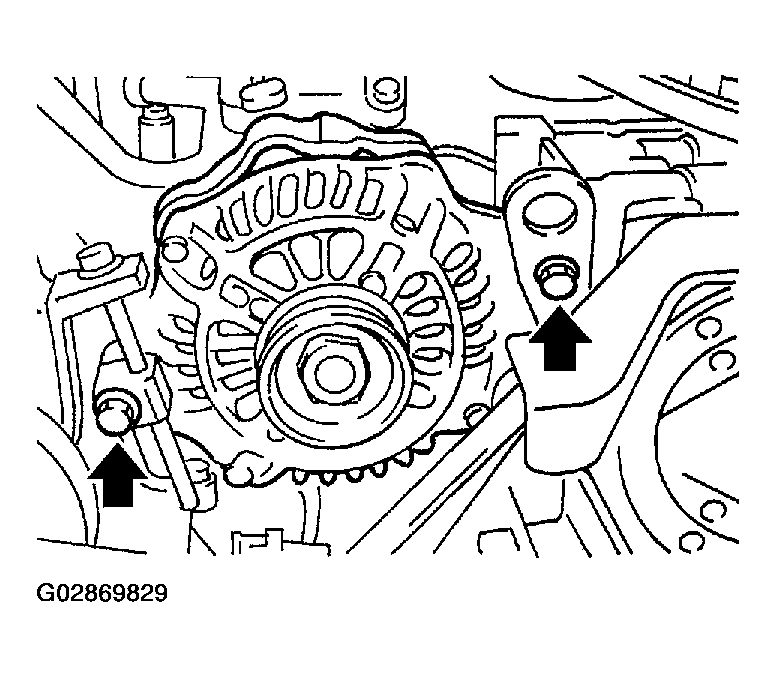

Fig 4: Installing The Generator On Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the front side V-belt and adjust it. For non-turbo, refer to V-BELT . For turbo, refer to V-BELT .
Install the V-belt cover.
- Non-Turbo model

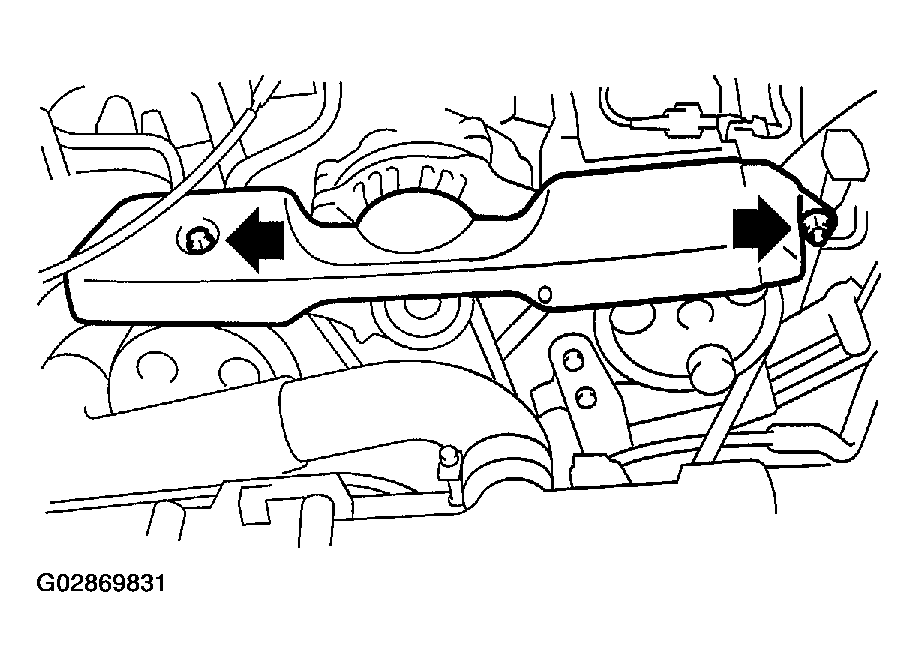

  Fig 5: Installing The V-Belt Cover (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

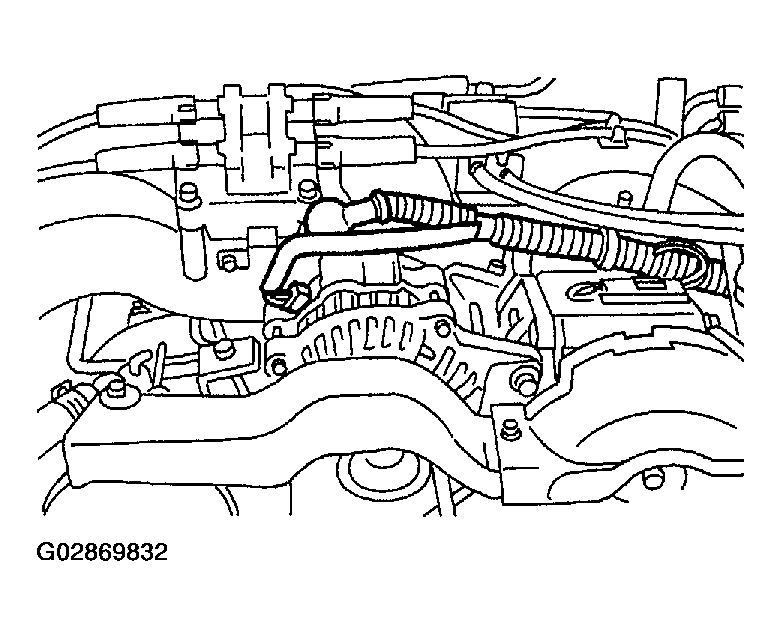

  Fig 6: Installing The V-Belt Cover (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Connect the connector and terminal to generator.
- Non-Turbo model

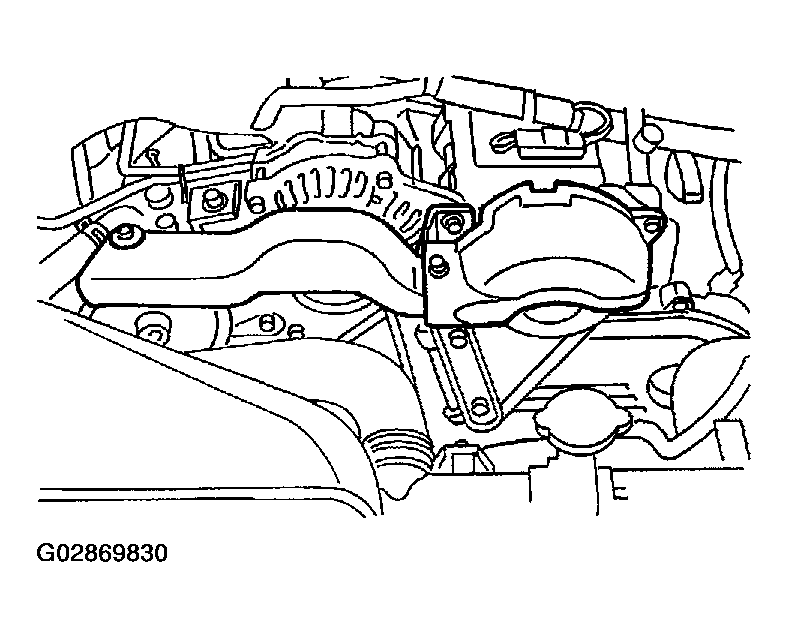

  Fig 7: Connecting The Connector And Terminal To Generator (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

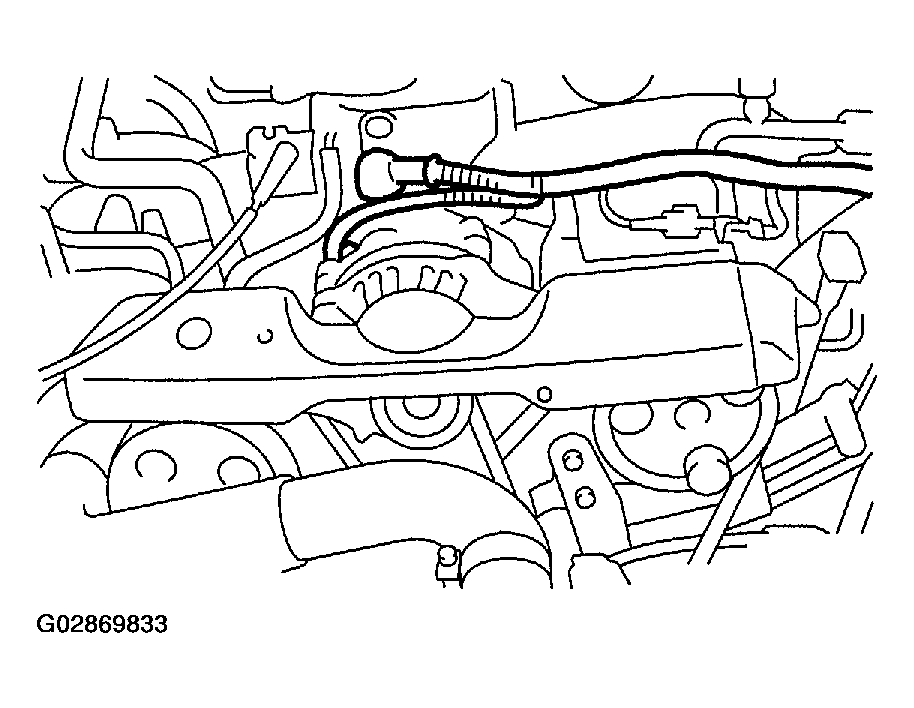

  Fig 8: Connecting The Connector And Terminal To Generator (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
