Oil Pump: Assembly
WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

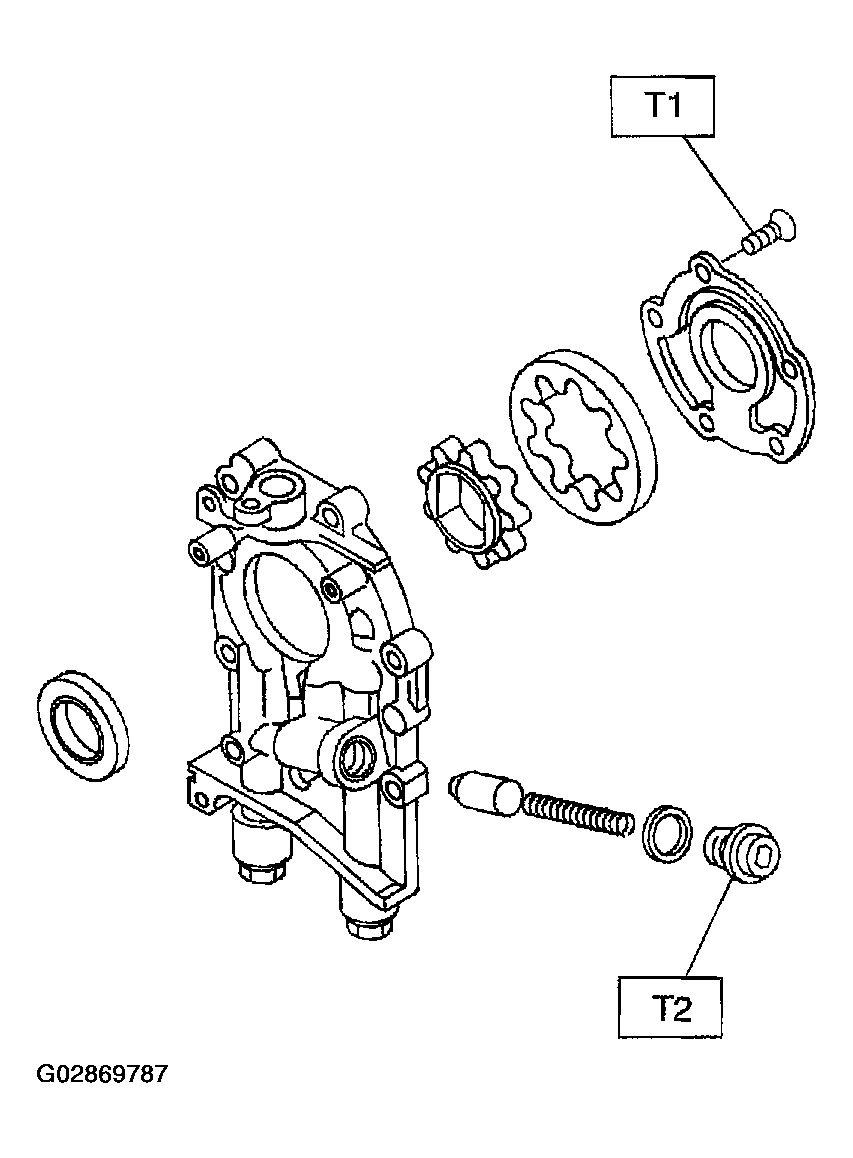

- Install the front oil seal by using ST.
ST 499587100: OIL SEAL INSTALLER
CAUTION: Use a new oil seal. - Apply a coat of engine oil to inner and outer rotors.
- Install the inner and outer rotors in their original positions.
- Install the oil relief valve and relief valve spring.
- Install the oil pump cover.
Tightening torque:
T1; 5 N.m (0.5 kgf-m, 3.6 ft-lb)
T2; 44 N.m (4.5 kgf-m, 32.5 ft-lb)
