General Diagnostic Table: Inspection: Notes

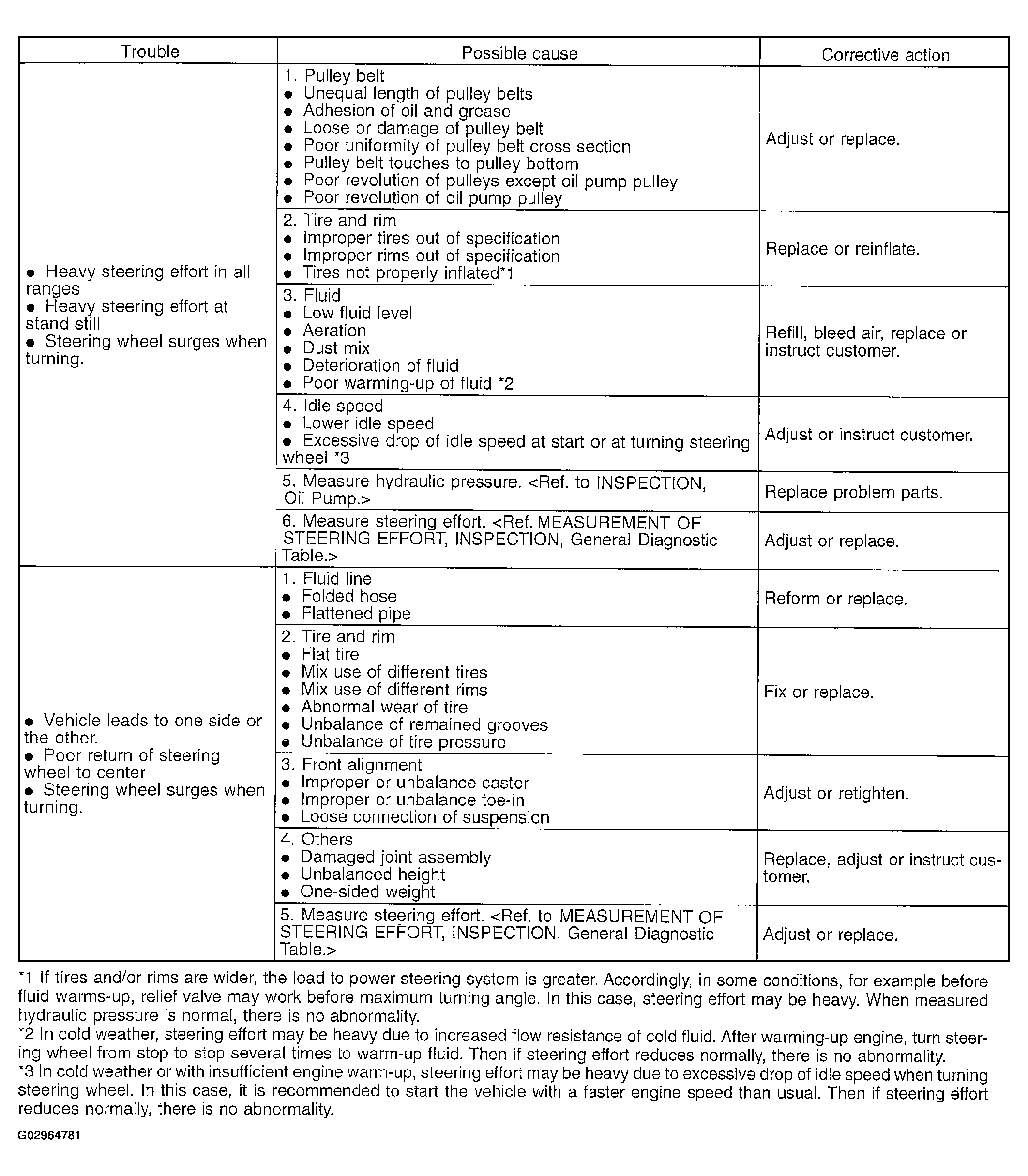

Fig 1: General Diagnostic Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
