Home › Subaru › 2002 › Outback Base, 4D Sedan › Repair and Diagnosis › Steering › Power Assisted System (Power Steering) › Reservoir Tank › Installation › 2.5L Model

2.5L Model

  1. Install reservoir tank to bracket.
  2. Connect pipes D to return hose and suction hose to oil pump.

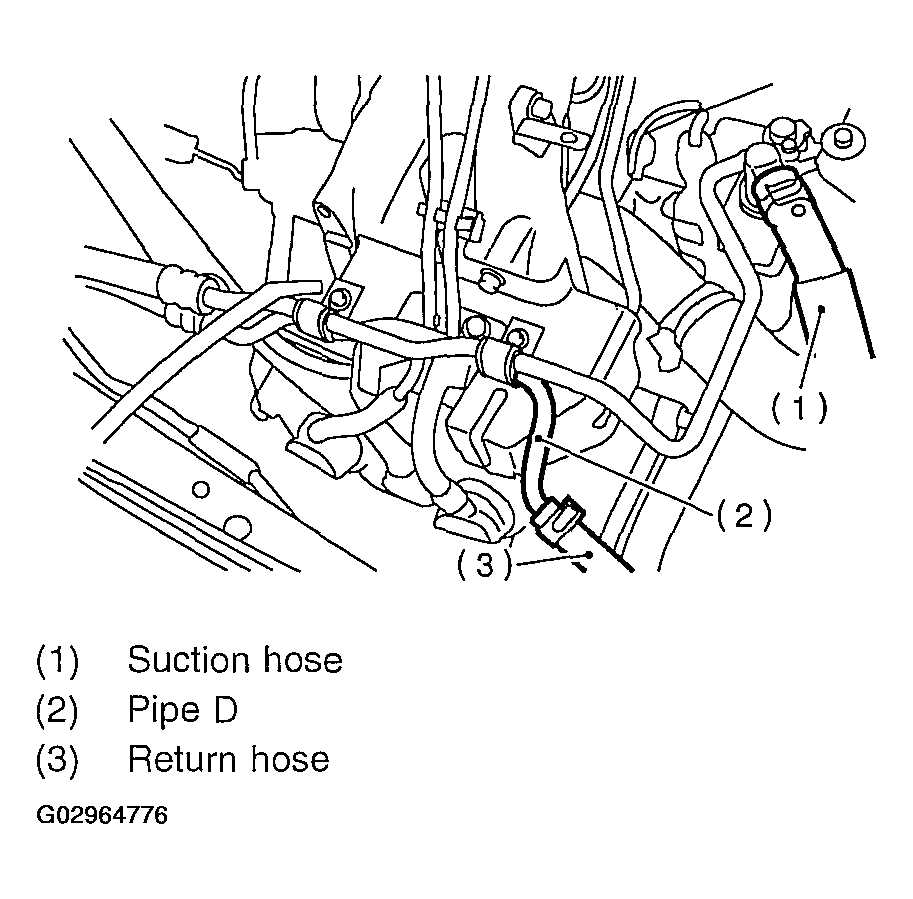

    Fig 1: Connecting Pipes D To Return Hose & Suction Hose To Oil Pump
    G02964776Courtesy of SUBARU OF AMERICA, INC.
  3. Feed the specified power steering fluid. Refer to POWER STEERING FLUID  .
