Subaru
›
2002
›
Outback Base, 4D Sedan
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission (Diagnostics)
›
Transmission Control Module (TCM) I/O Signal
›
Electrical Specification
›
Without VDC System
Without VDC System

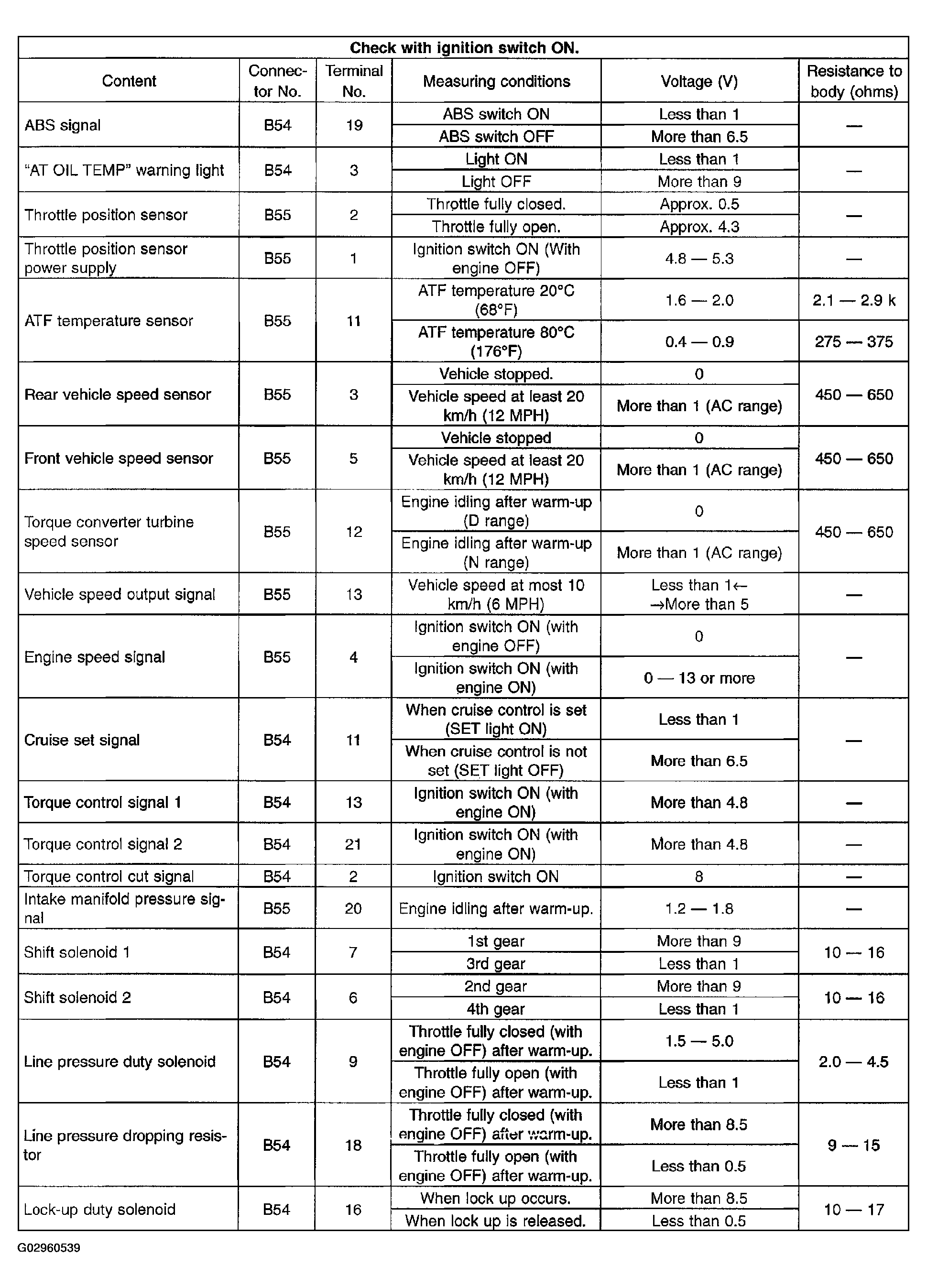

Fig 1: Identifying Transmission Control Module Connector Terminal - Without VDC System (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

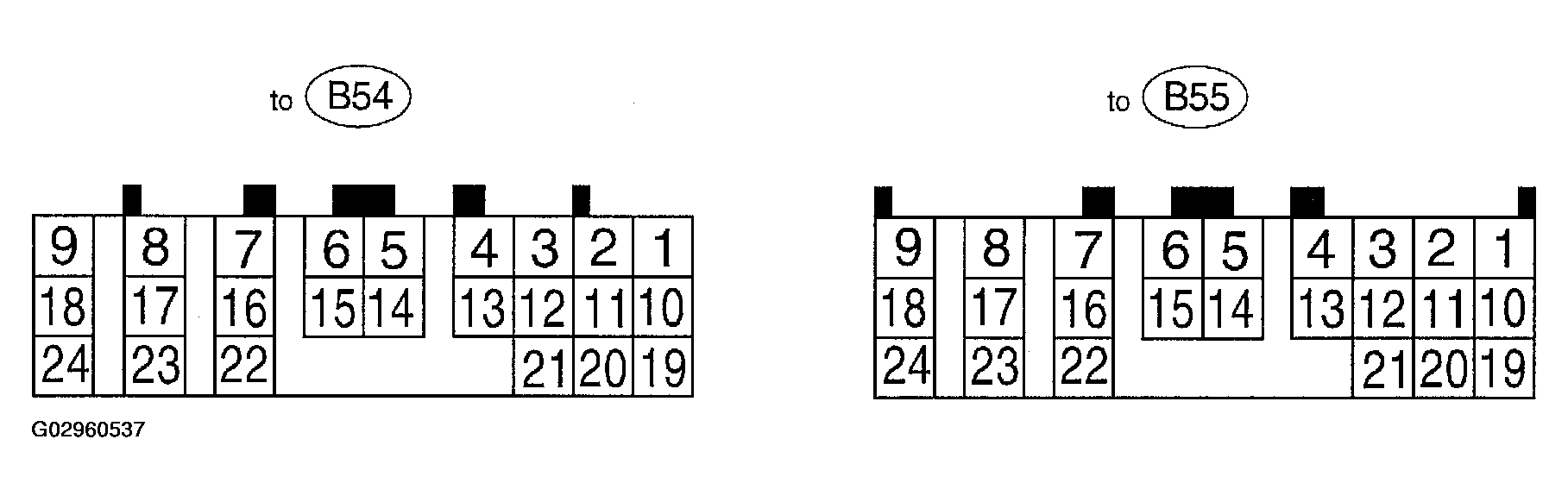

Fig 2: Identifying Transmission Control Module Connector Terminal - Without VDC System (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

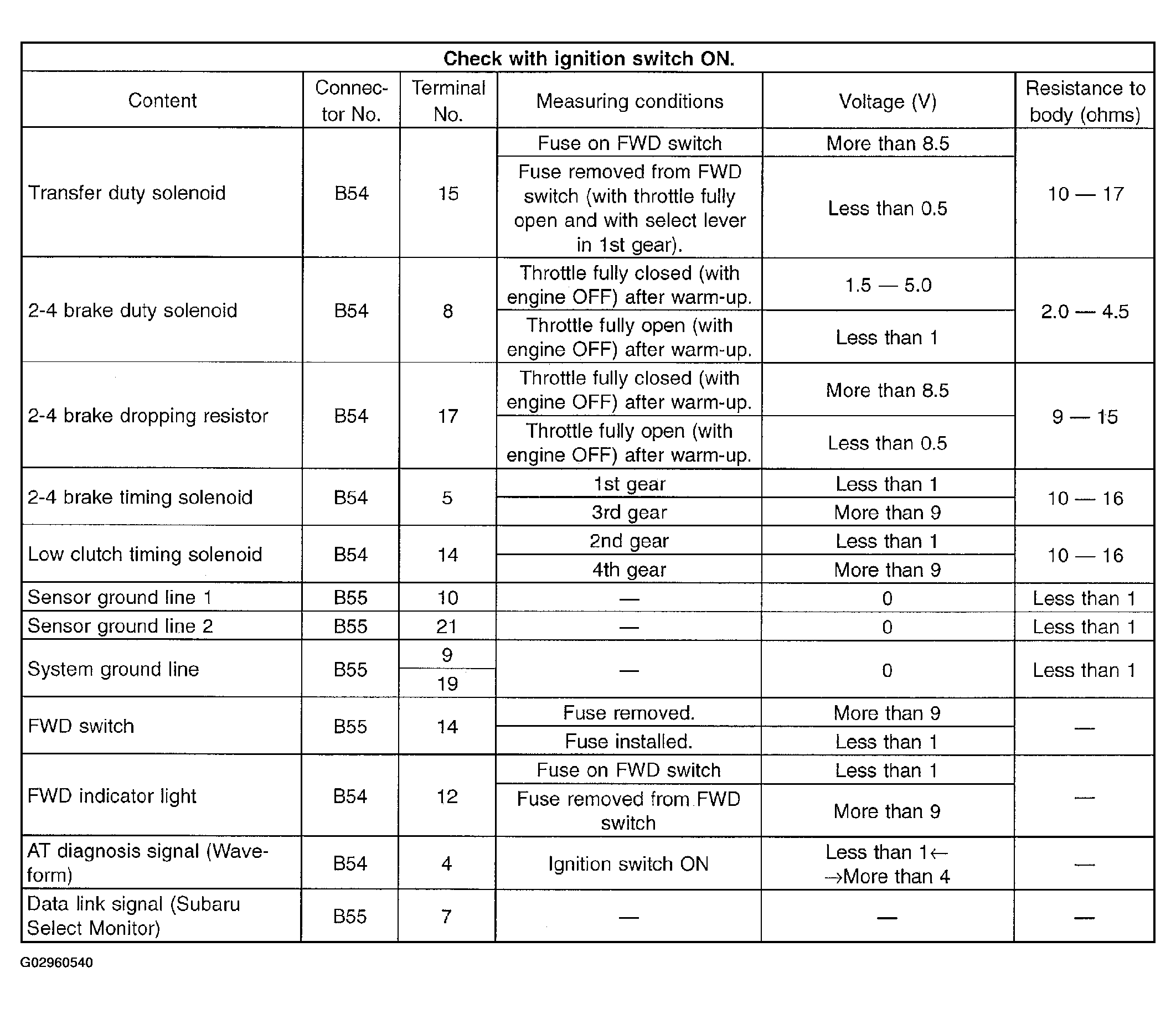

Fig 3: Identifying Transmission Control Module Connector Terminal - Without VDC System (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

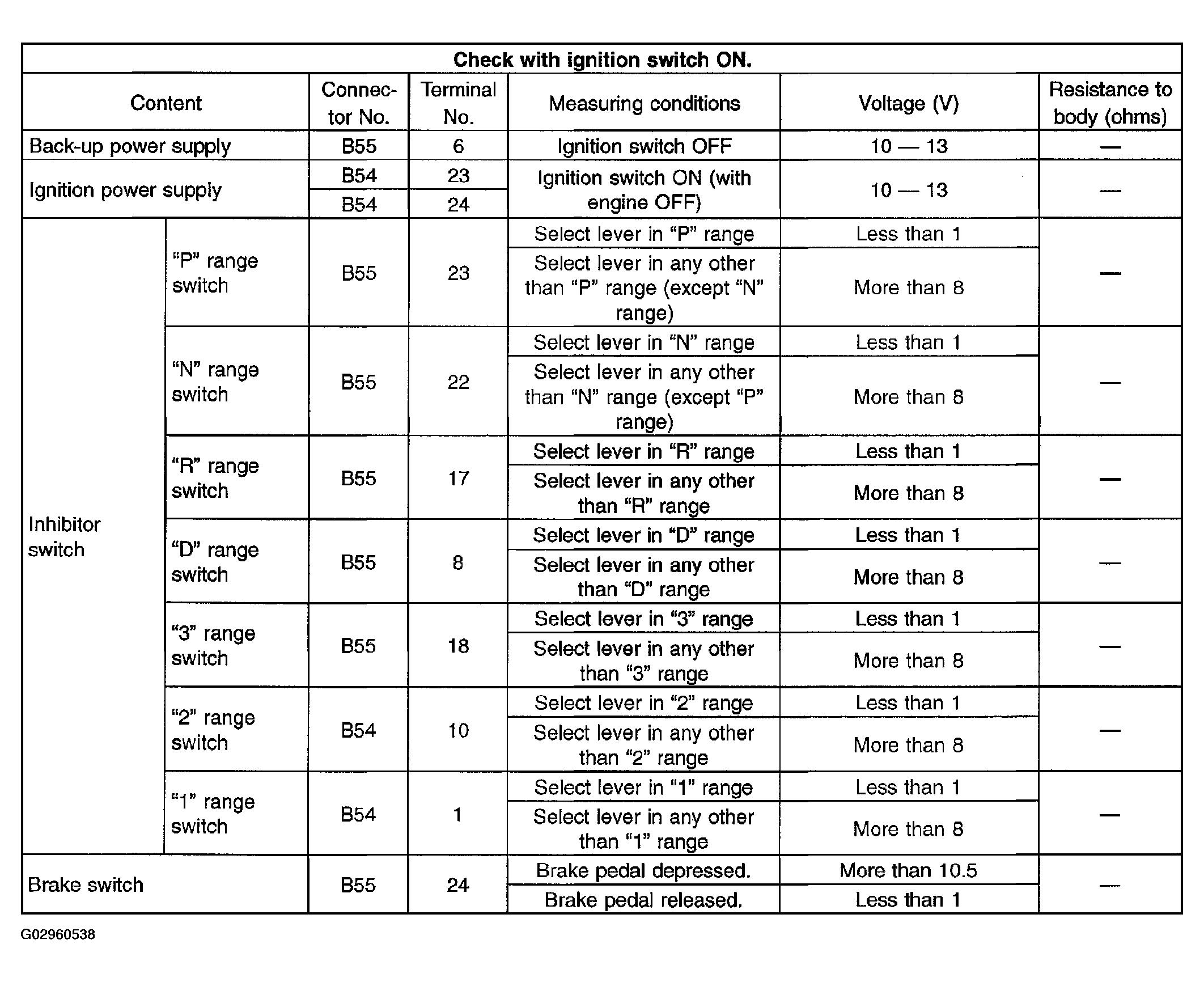

Fig 4: Identifying Transmission Control Module Connector Terminal - Without VDC System (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
