Transmission Control Module (TCM) I/O Signal
›
Schematic
›
With VDC System
With VDC System

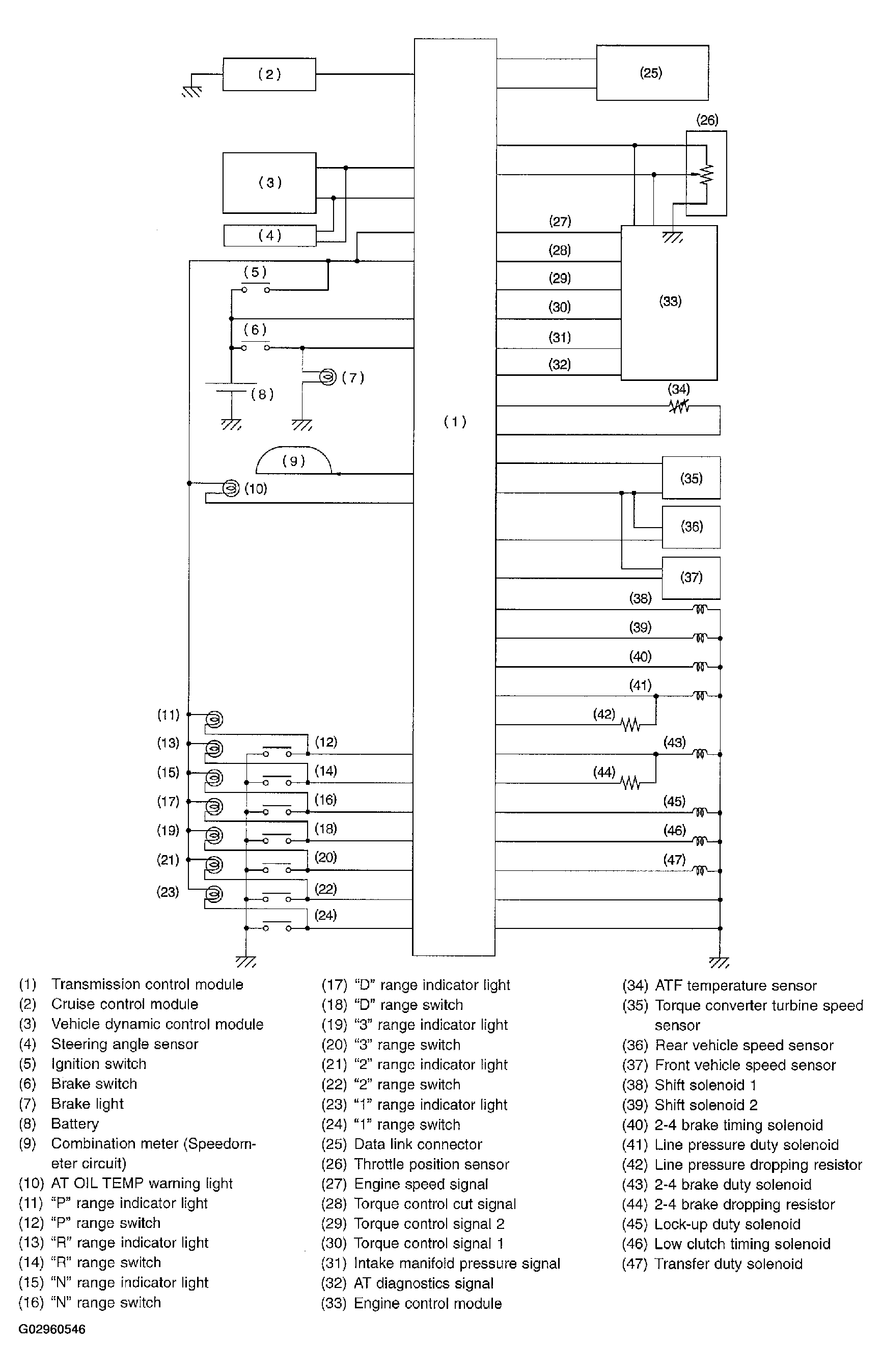

Fig 1: Transmission Control Module Schematic - With VDC System
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
