Automatic Transmission (Diagnostics)
›
Transmission Control Module (TCM) I/O Signal
›
Schematic
›
Without VDC System
Without VDC System

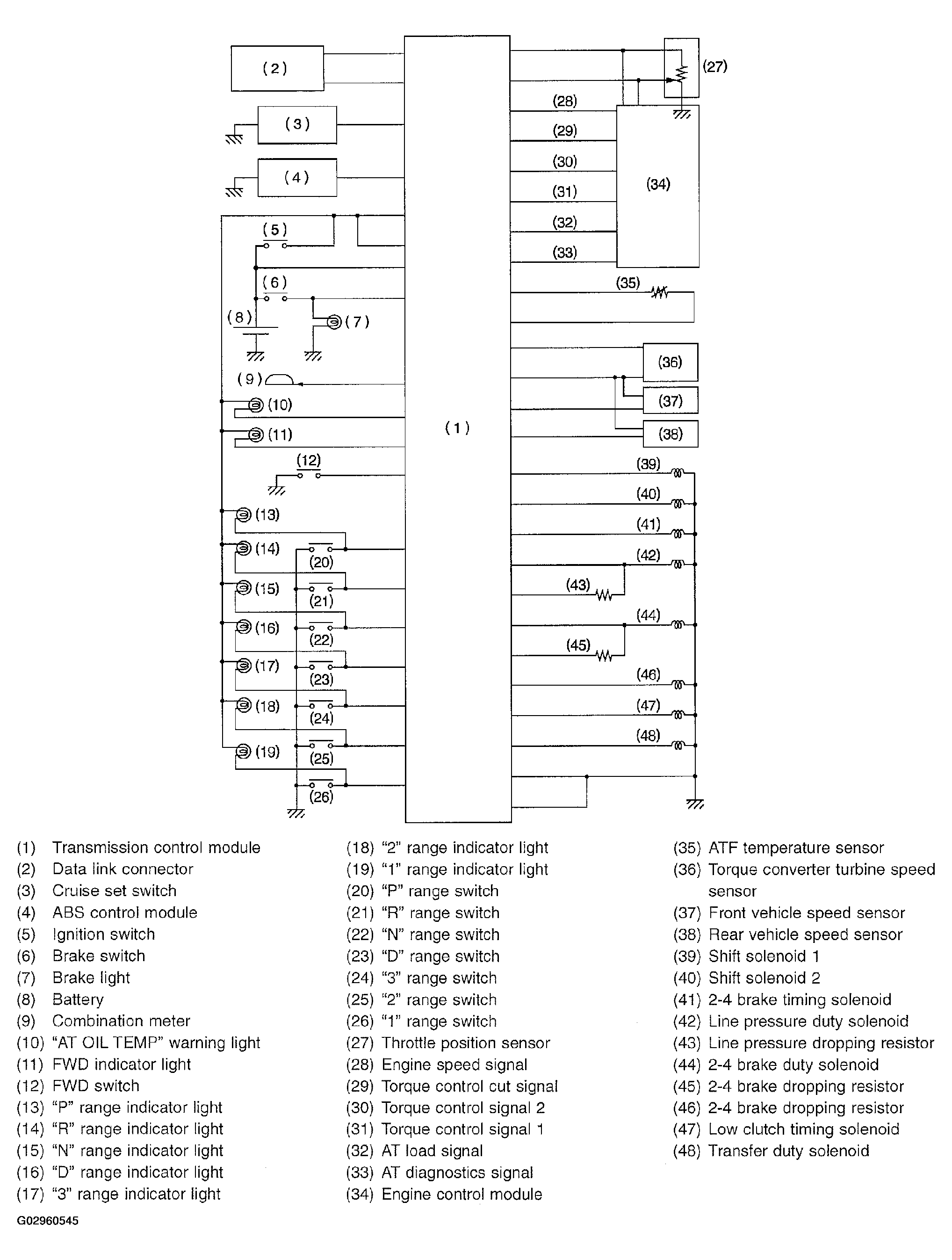

Fig 1: Transmission Control Module Schematic - Without VDC System
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
