Dropping Resistor: Removal

NOTE: Model without VDC system only
  1. Disconnect battery ground cable.

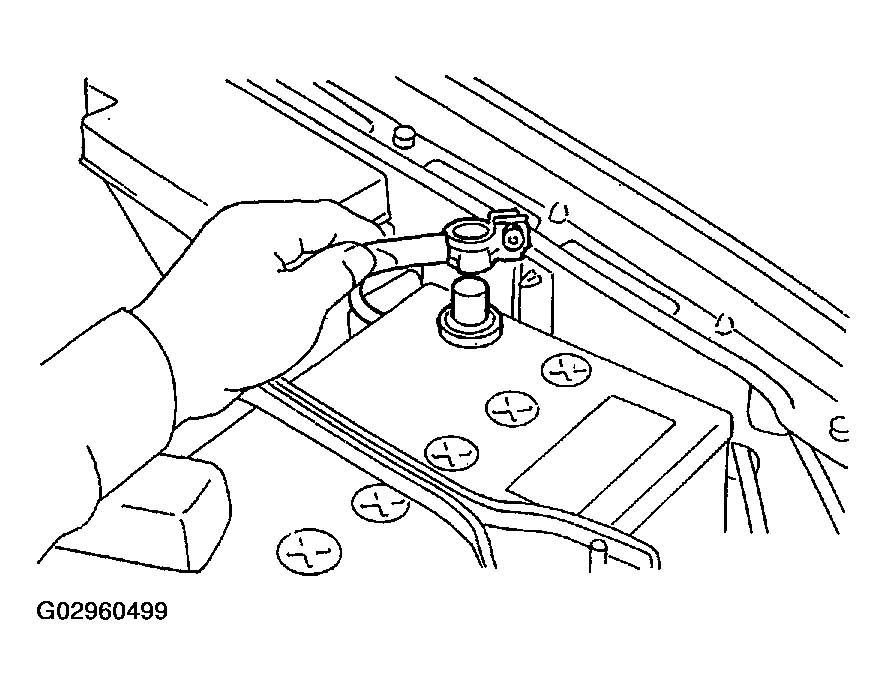

    Fig 1: Disconnecting Battery Ground Cable
    G02960499Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air intake duct.
  3. Disconnect connector from dropping resistor.
  4. Remove dropping resistor.
    Fig 2: Removing Dropping Resistor
    G02960500Courtesy of SUBARU OF AMERICA, INC.
