Front Vehicle Speed Sensor: Removal

Set up the vehicle on the lift.
Disconnect battery ground cable.

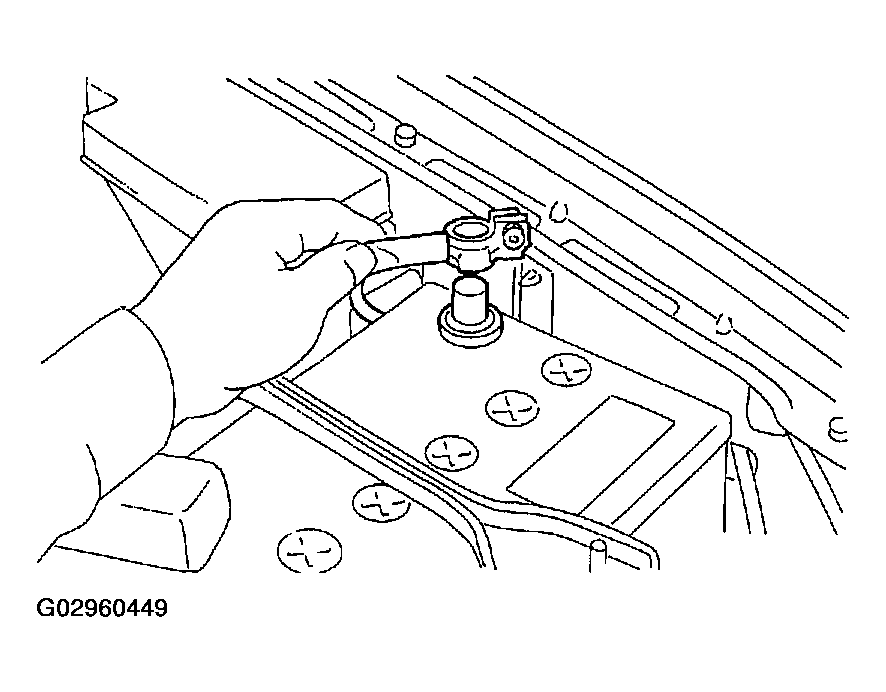

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner case or intake chamber.
Refer to REMOVAL , Air Cleaner Case. (2.5L Model)

Refer to REMOVAL , Air Intake Chamber. (3.0L Model)
Disconnect transmission connector.

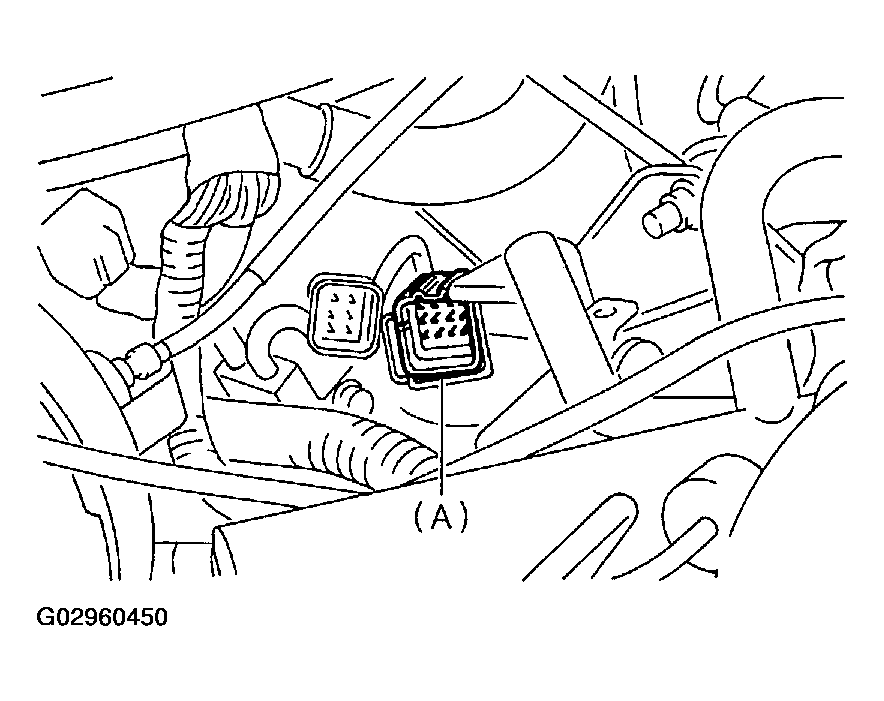

Fig 2: Disconnecting Transmission Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove pitching stopper.
Refer to REMOVAL , Transmission Mounting System.
Remove the transmission connector from stay.
Lift-up the vehicle.
Clean transmission exterior.
Drain ATF completely.
NOTE: Tighten ATF drain plug after draining ATF.
1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

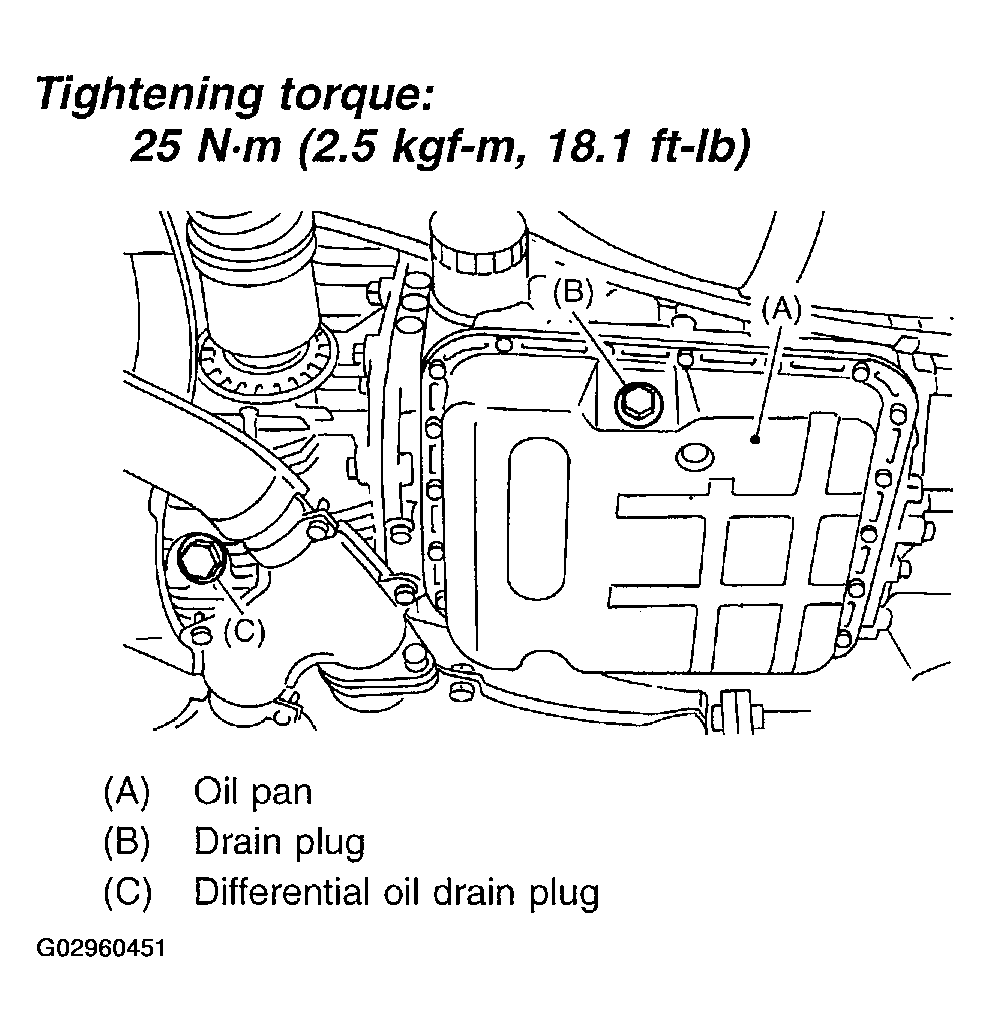

  Fig 3: Tightening ATF Drain Plug
  Courtesy of SUBARU OF AMERICA, INC.
Remove front, center, rear exhaust pipes and muffler.
2.5 Model

Refer to REMOVAL , Front Exhaust Pipe REMOVAL , Rear Exhaust Pipe and REMOVAL , Muffler.

3.0 Model

Refer to REMOVAL , Front Exhaust Pipe, REMOVAL , Rear Exhaust Pipe and REMOVAL , Muffler.
Remove the shield cover.
Remove the propeller shaft.
Place transmission jack under crossmember.
NOTE: Make sure that the support plates of transmission jack don't touch the crossmember.
Remove the transmission rear crossmember bolts.

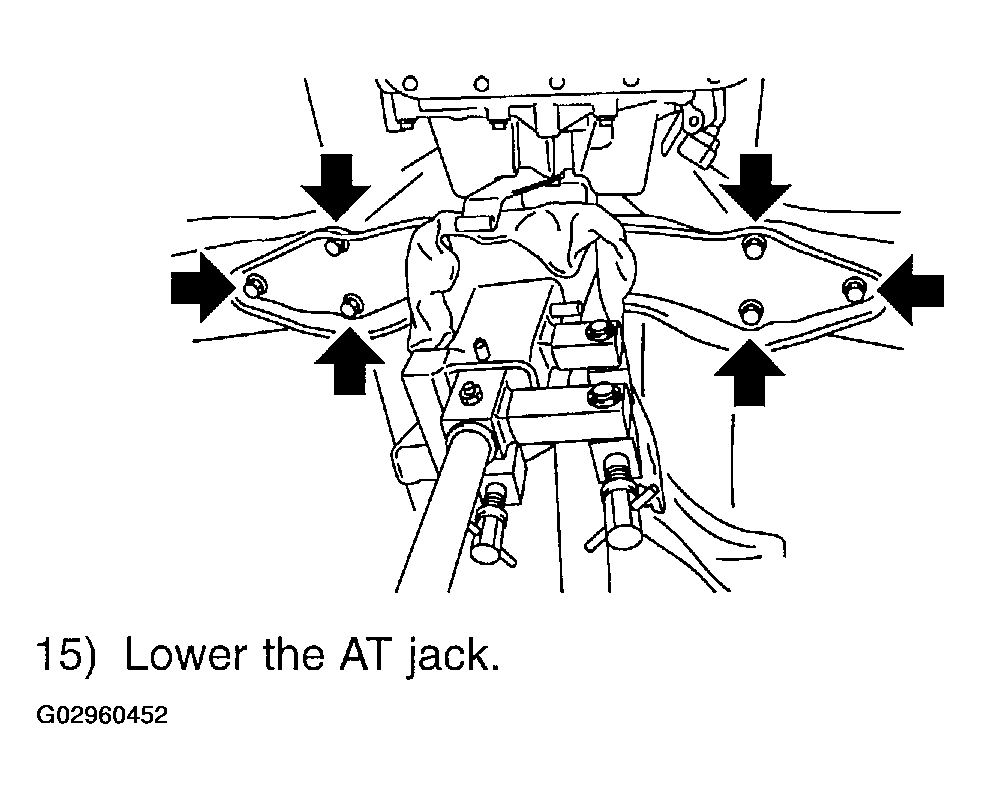

Fig 4: Removing Transmission Rear Crossmember Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lower the AT jack.
NOTE: Do not separate the AT jack and transmission.
Remove the oil cooler outlet pipe.
NOTE: When removing outlet pipe, be careful not to lose balls and springs used with retaining screws.
Remove front and rear vehicle speed sensor and torque converter turbine speed sensor.
- Front vehicle speed sensor and torque converter turbine speed sensor

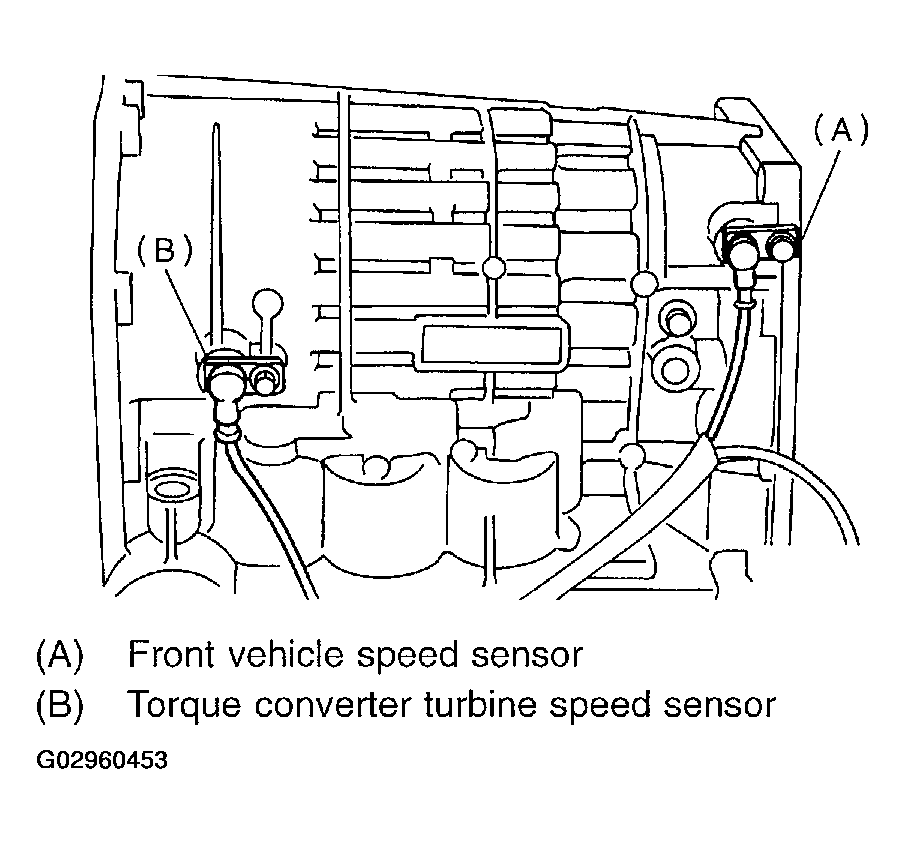

  Fig 5: Removing Front Vehicle Speed Sensor & Torque Converter Turbine Speed Sensor
  Courtesy of SUBARU OF AMERICA, INC.
- Rear vehicle speed sensor

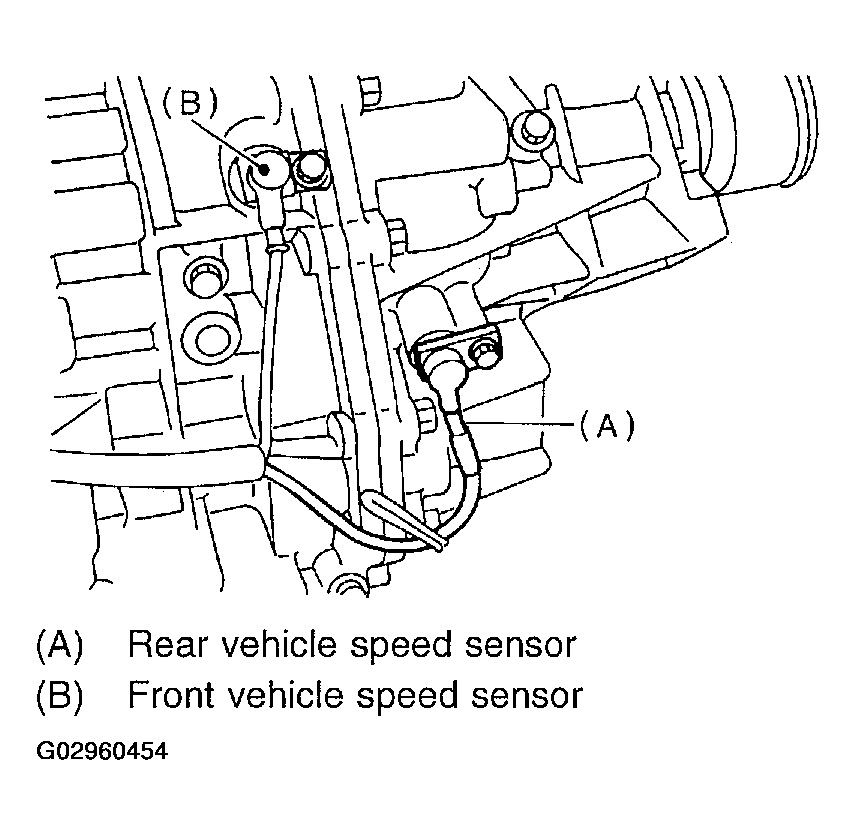

  Fig 6: Removing Rear Vehicle Speed Sensor
  Courtesy of SUBARU OF AMERICA, INC.
Remove oil pan.
Disconnect duty solenoids and ATF temperature sensor connectors. Remove connectors from clip and disconnect connectors.

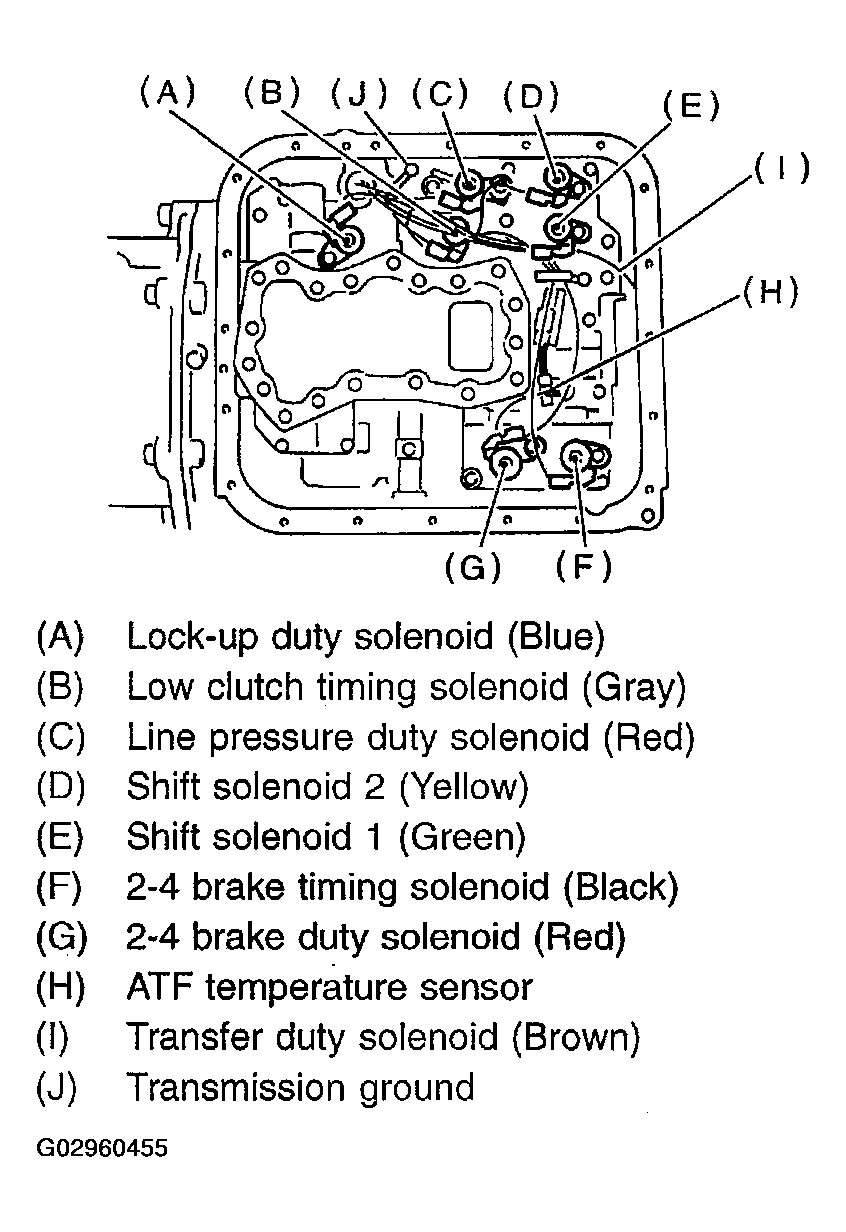

Fig 7: Disconnecting Duty Solenoids & ATF Temperature Sensor Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove harness assembly.
