Inhibitor Switch: Installation

  1. Connect inhibitor switch harness connector to inhibitor switch.
  2. Install inhibitor switch to transmission case.

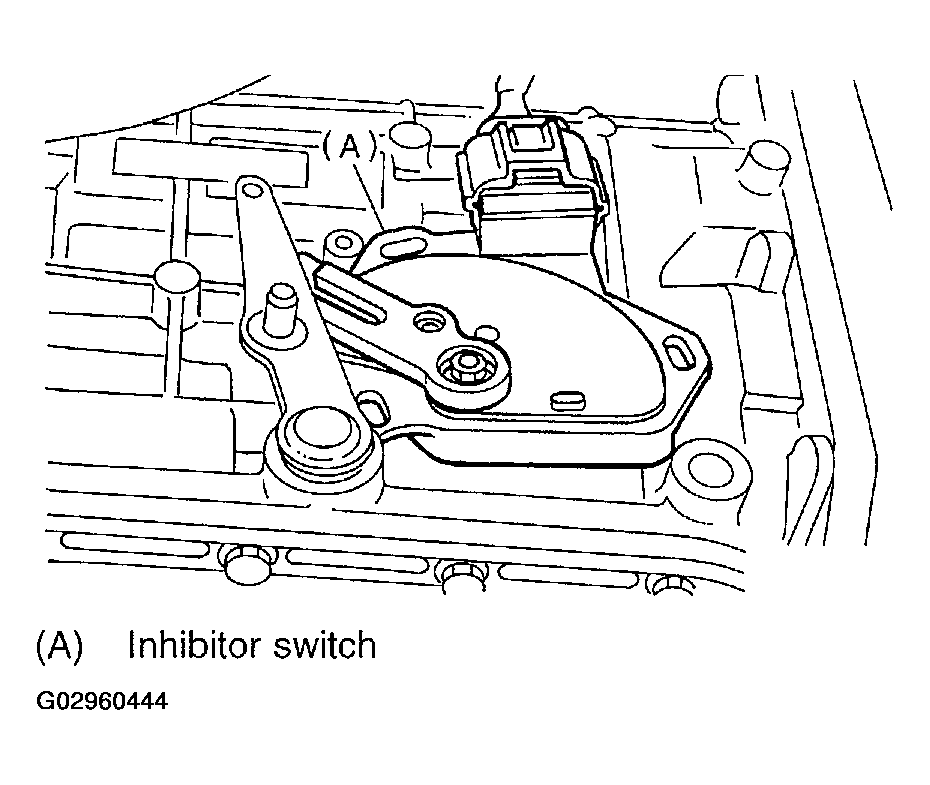

    Fig 1: Installing Inhibitor Switch To Transmission Case
    G02960444Courtesy of SUBARU OF AMERICA, INC.
  3. Move range select lever to neutral position.
  4. Using ST, tighten bolts of inhibitor switch.

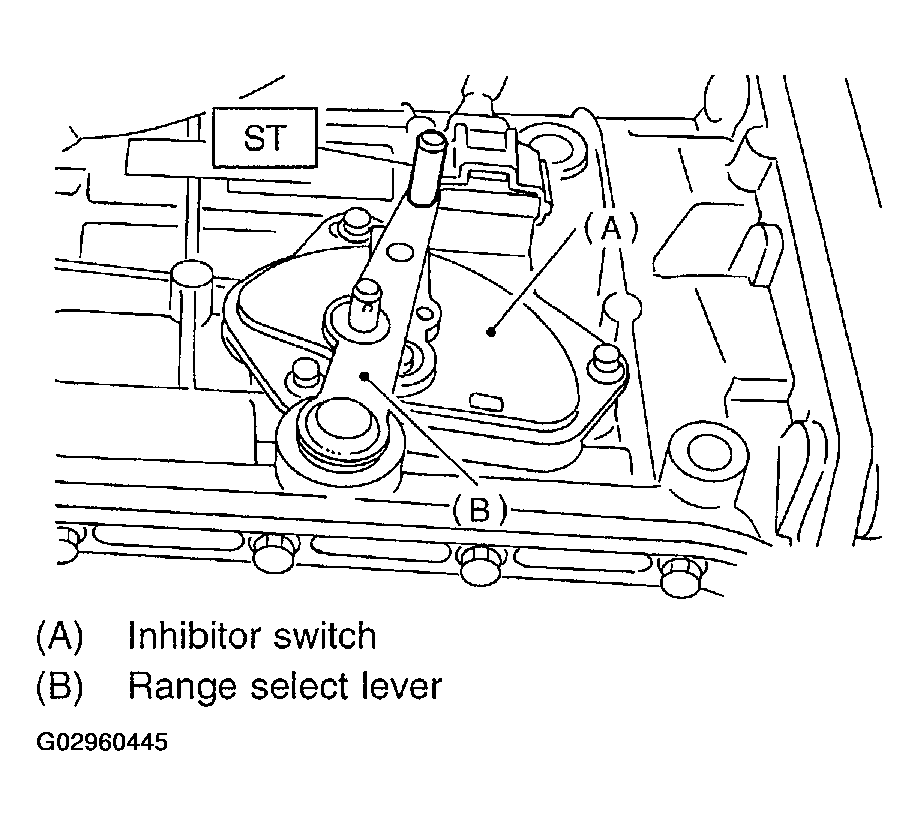

    Fig 2: Tightening Bolts Of Inhibitor Switch
    G02960445Courtesy of SUBARU OF AMERICA, INC.
  5. Install select cable to range select lever.
  6. Install plate assembly to transmission.

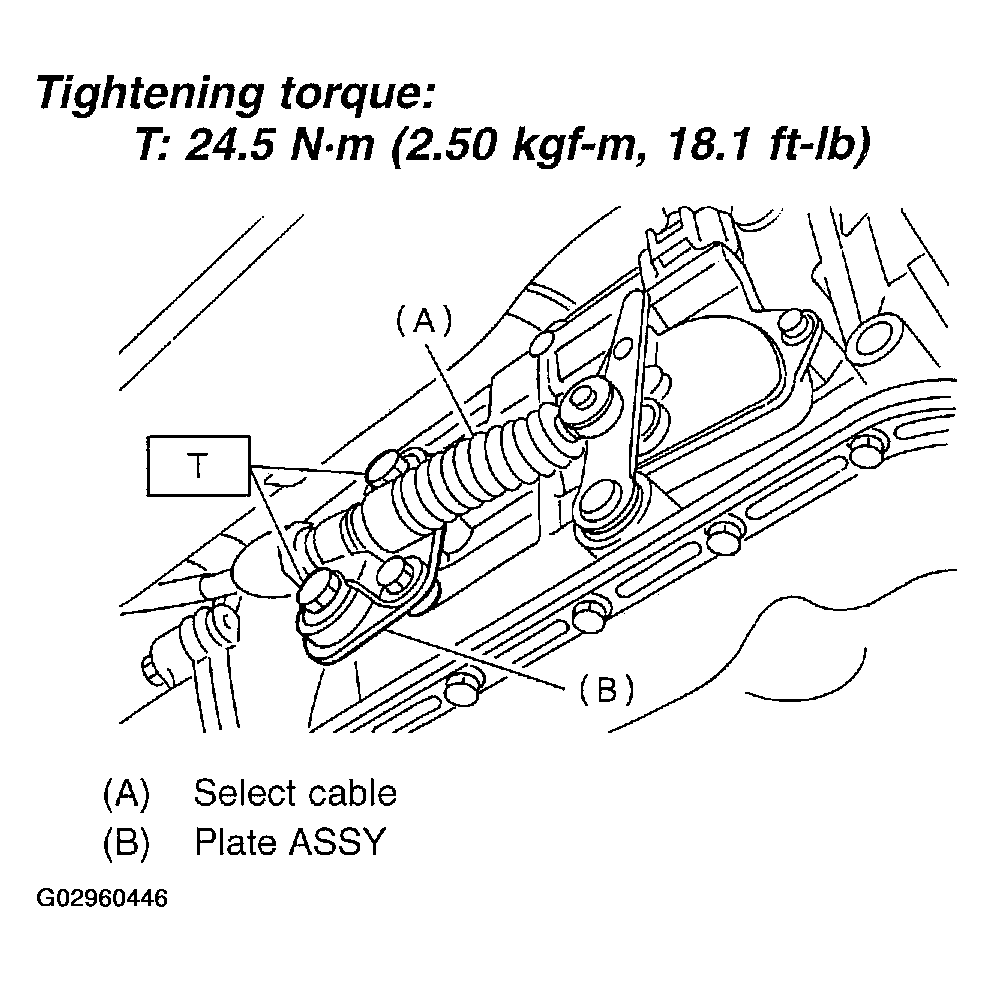

    Fig 3: Installing Plate Assembly To Transmission
    G02960446Courtesy of SUBARU OF AMERICA, INC.
  7. Install snap pin to range select lever.

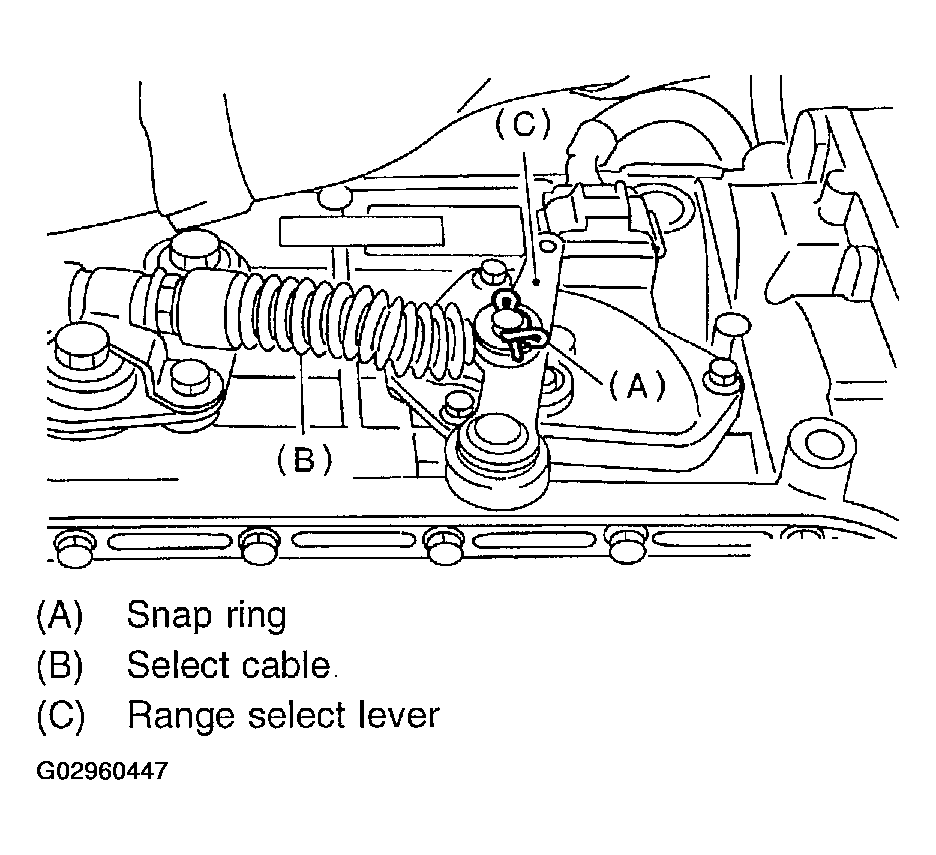

    Fig 4: Installing Snap Pin To Range Select Lever
    G02960447Courtesy of SUBARU OF AMERICA, INC.
  8. Install front exhaust pipe and center exhaust pipe.

    Refer to INSTALLATION , Front Exhaust Pipe. (2.5L Model)

    Refer to INSTALLATION , Front Exhaust Pipe. (3.0L Model)

  9. Connect inhibitor switch connector.

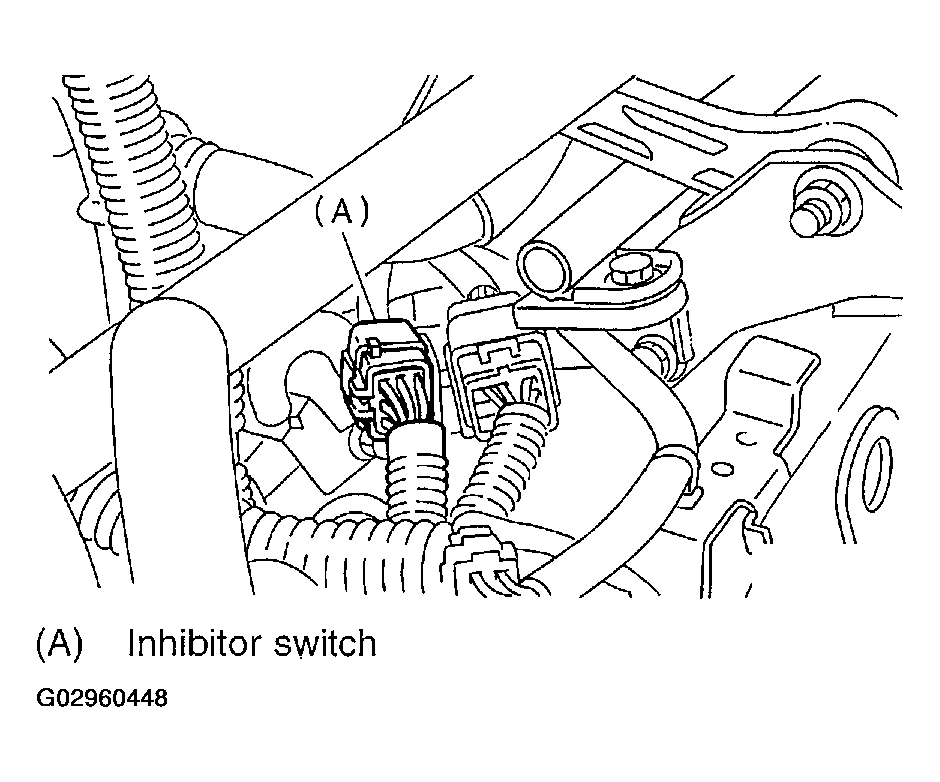

    Fig 5: Connecting Inhibitor Switch Connector
    G02960448Courtesy of SUBARU OF AMERICA, INC.
  10. Install air cleaner case or air intake chamber.

    Refer to INSTALLATION , Air Cleaner Case.

    Refer to INSTALLATION , Air Intake Chamber. (3.0L Model)

  11. Inspect inhibitor switch. Refer to INSPECTION  , Inhibitor Switch.
