Inhibitor Switch: Removal

Move select lever to neutral position.
Remove air cleaner case or air intake chamber.
Refer to REMOVAL , Air Cleaner Case. (2.5L Model)

Refer to REMOVAL , Air Intake Chamber. (3.0L Model)
Disconnect inhibitor switch connector.

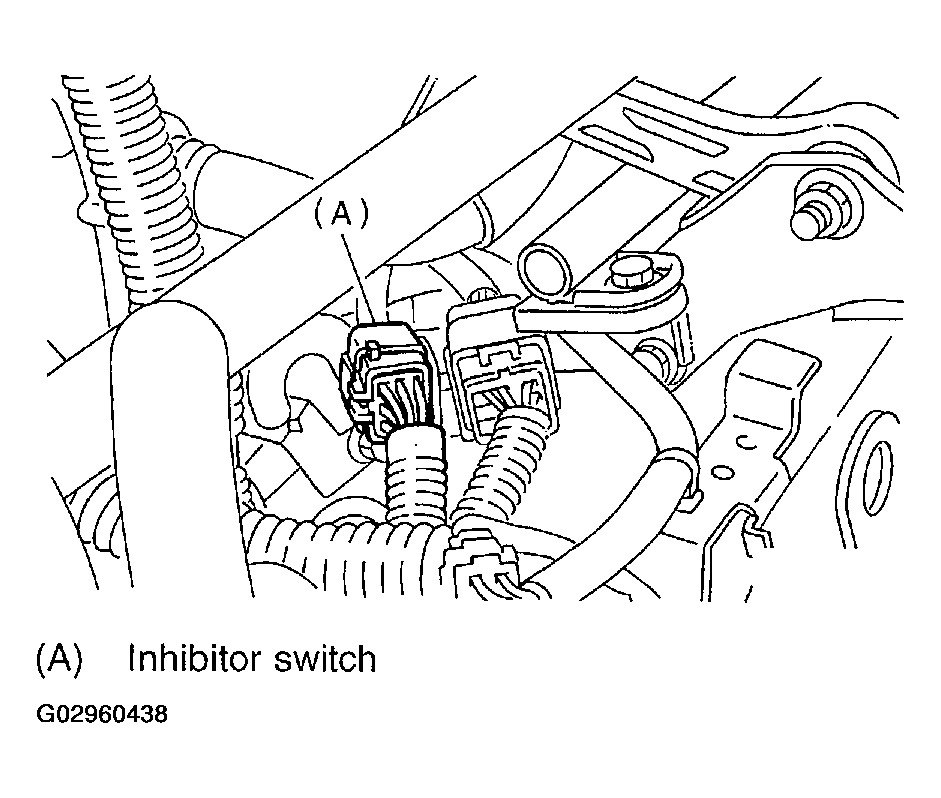

Fig 1: Disconnecting Inhibitor Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove front exhaust pipe with center exhaust pipe.
Refer to REMOVAL , Front Exhaust Pipe. (2.5L Model)

Refer to REMOVAL , Front Exhaust Pipe. (3.0L Model)
Remove snap pin from range select lever.

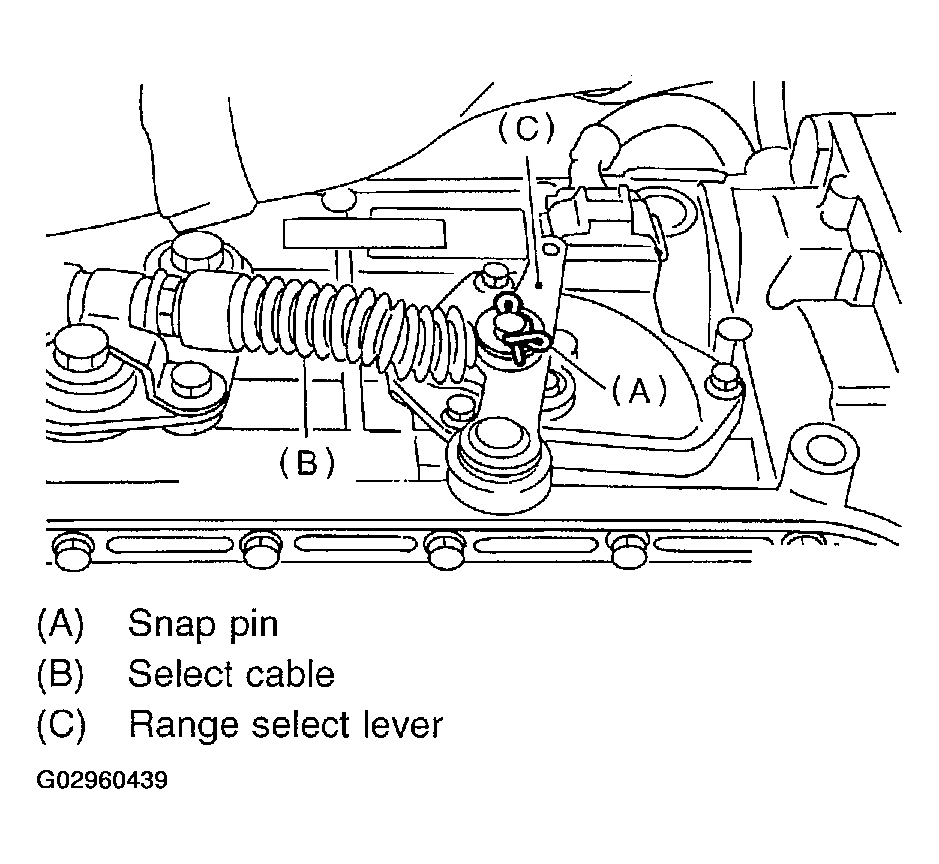

Fig 2: Removing Snap Pin From Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove plate assembly from transmission case.

Fig 3: Removing Plate Assembly From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts.

Fig 4: Removing Inhibitor Switch Bolts
Courtesy of SUBARU OF AMERICA, INC.
Move range select lever to parking position (left side).

Fig 5: Moving Range Select Lever To Parking Position (Left Side)
Courtesy of SUBARU OF AMERICA, INC.
Remove inhibitor switch from transmission.

Fig 6: Removing Inhibitor Switch From Transmission
Courtesy of SUBARU OF AMERICA, INC.
Disconnect inhibitor switch harness connector from inhibitor switch.
