Pitching Stopper

  1. Install the pitching stopper.

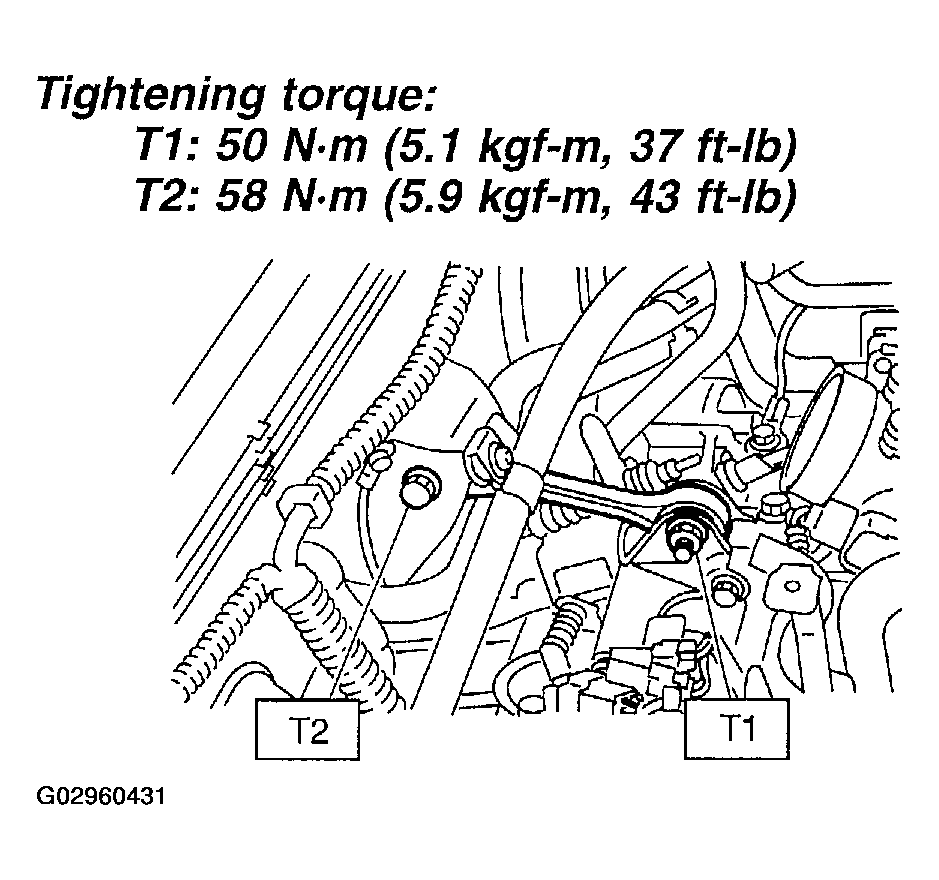

    Fig 1: Installing Pitching Stopper
    G02960431Courtesy of SUBARU OF AMERICA, INC.
  2. Install the air cleaner case or air intake chamber.

    Refer to INSTALLATION , Air Cleaner Case. (2.5L Model)

    Refer to INSTALLATION , Air Intake Chamber. (3.0L Model)
